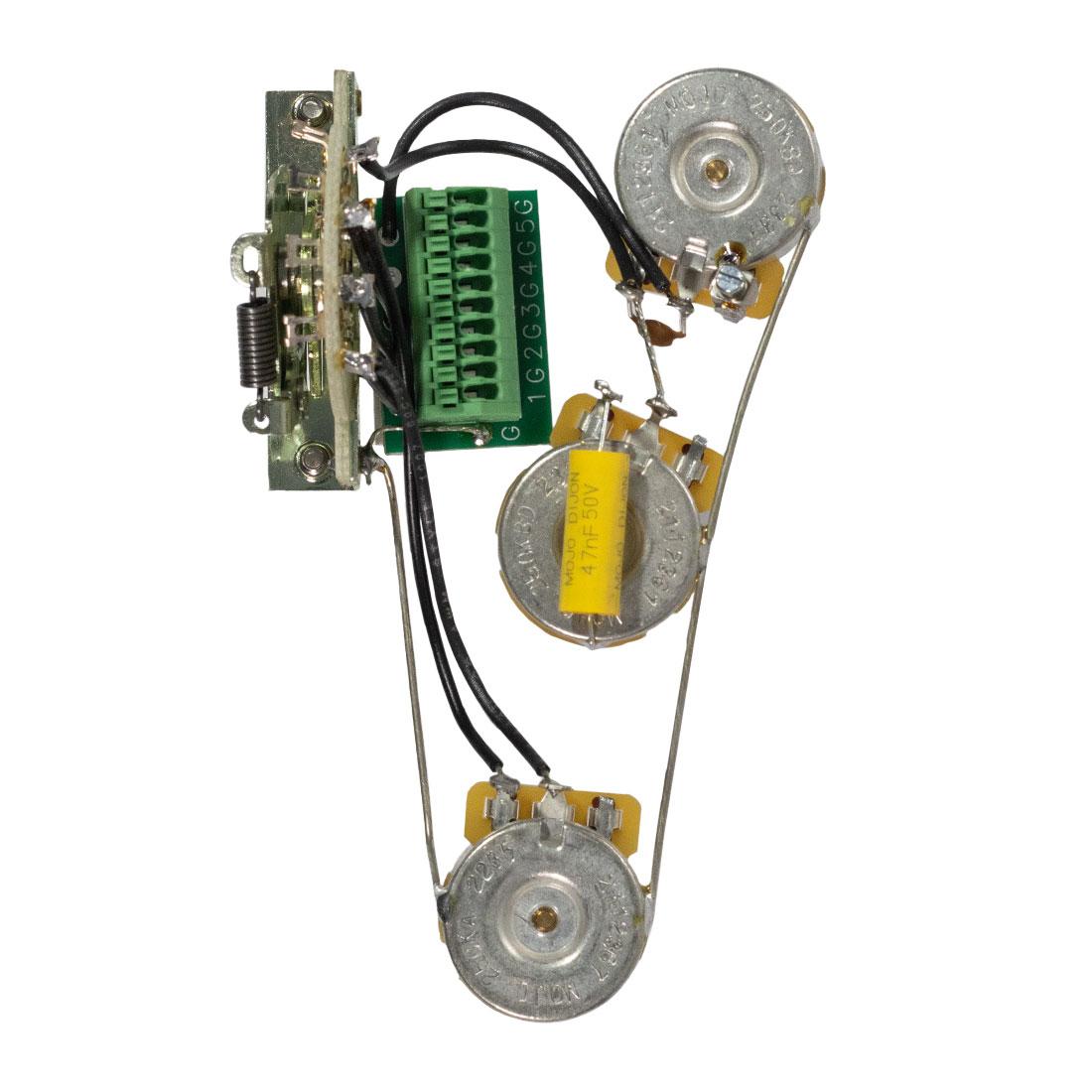

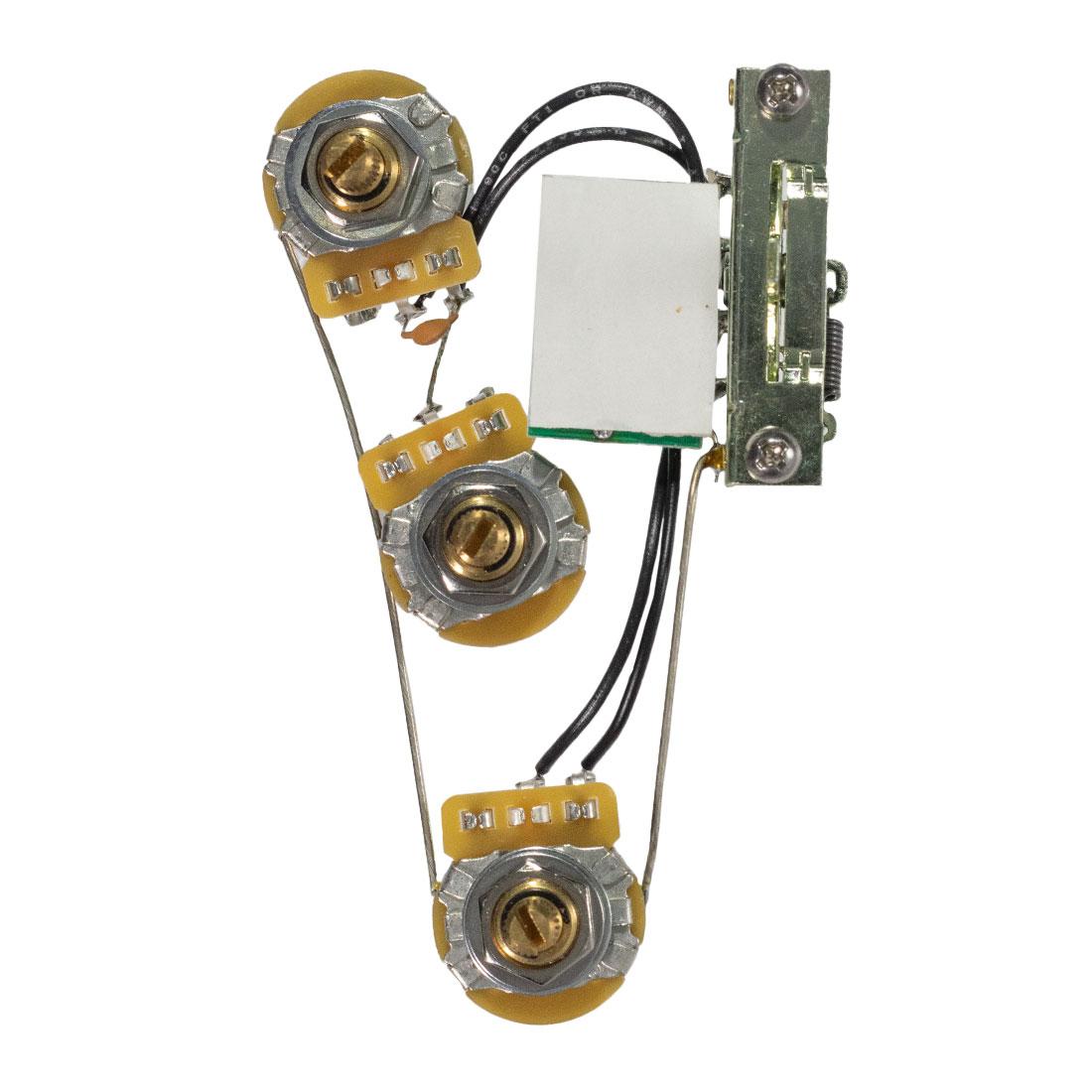

Solderless Strat Blender Guitar Wiring Harness
Solderless Strat Blender Guitar Wiring Harness
#Z457530

Solderless Strat Blender Guitar Wiring Harness

Upgrading to high quality electronics makes a difference, and solderless makes it easier!

Do you like swapping pickups, or maybe you don't want to solder because you're afraid of messing things up? Our solderless assemblies provide the easiest solution and most reliable connections with a simple push and release of a button. All while offering a superior quality electronic upgrade for your guitar.

No bulky plugs or add-ons are needed for our solderless harness to work. Just strip back your existing wires from your pickups and guitar, insert them into our solderless connector, and you're done!

Don't forget to check out our selection of knobs here and switch tips here.

All of our wiring harnesses are proudly built in Burgaw, NC!
$119.95
Shipping calculated at checkout.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

Weight: lb

  • Push-in solderless wire connection for easy installation and quick pickup swaps
  • Vintage quality USA branded components (Switchcraft, Mojotone, CRL, and CTS)
  • USA made CRL Switch
  • The most reliable and smoothest feeling switch ever made and hasn't changed since the 50's
  • Smooth custom taper, CTS industrial potentiometers with solid brass bushings and the tightest tolerances available
  • Handcrafted Mojotone Dijon tone caps
  • Hand-wired point-to-point by Mojotone in the USA


Blender Control Functions:

  • Master Volume: Top Knob
  • Master Tone: Middle Knob
  • Blender Control: Bottom Knob

Blender on 10:

  • Position 1: Bridge
  • Position 2: Bridge and Middle
  • Position 3: Middle
  • Position 4: Middle and Neck
  • Position 5: Neck

Blender on 0:

  • Position 1: Bridge (with Neck blended in)
  • Position 2: Bridge and Middle (with Neck blended in)
  • Position 3: Middle
  • Position 4: Middle and Neck (with Bridge blended in)
  • Position 5: Neck (with Bridge blended in)

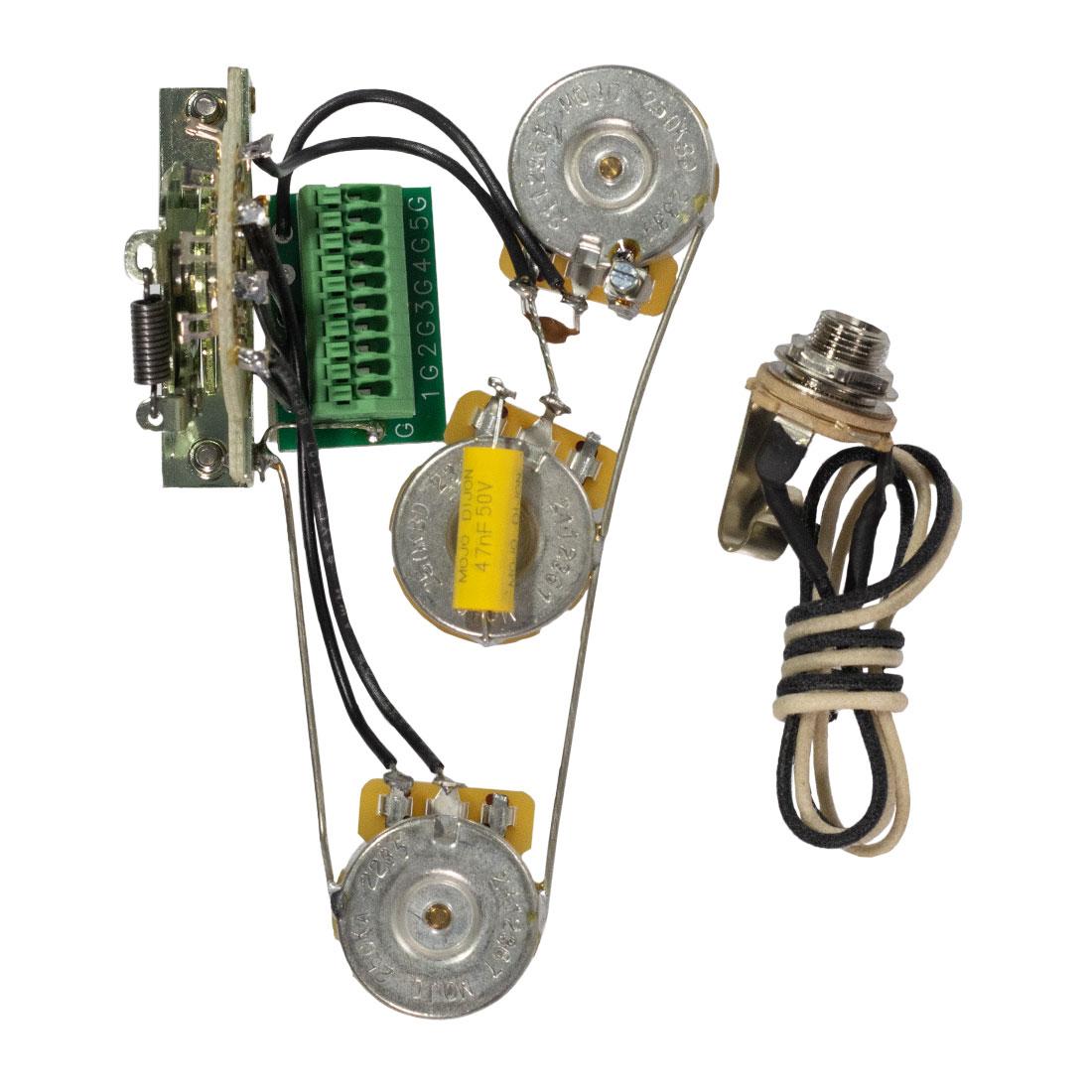

Included:

  • (2) CTS 250k vintage taper split shaft potentiometers
  • (1) CTS 250k Blender split shaft potentiometer
  • (1) CRL USA 5-way lever switch (Switch tip sold separately)
  • (1) Switchcraft USA mono input jack
  • (1) Mojotone Vitamin T Oil Filled .047uf capacitor
  • (1) Treble Bleed (Preserves highs on volume control)
  • (1) Detailed wiring diagram and instructions


Note:

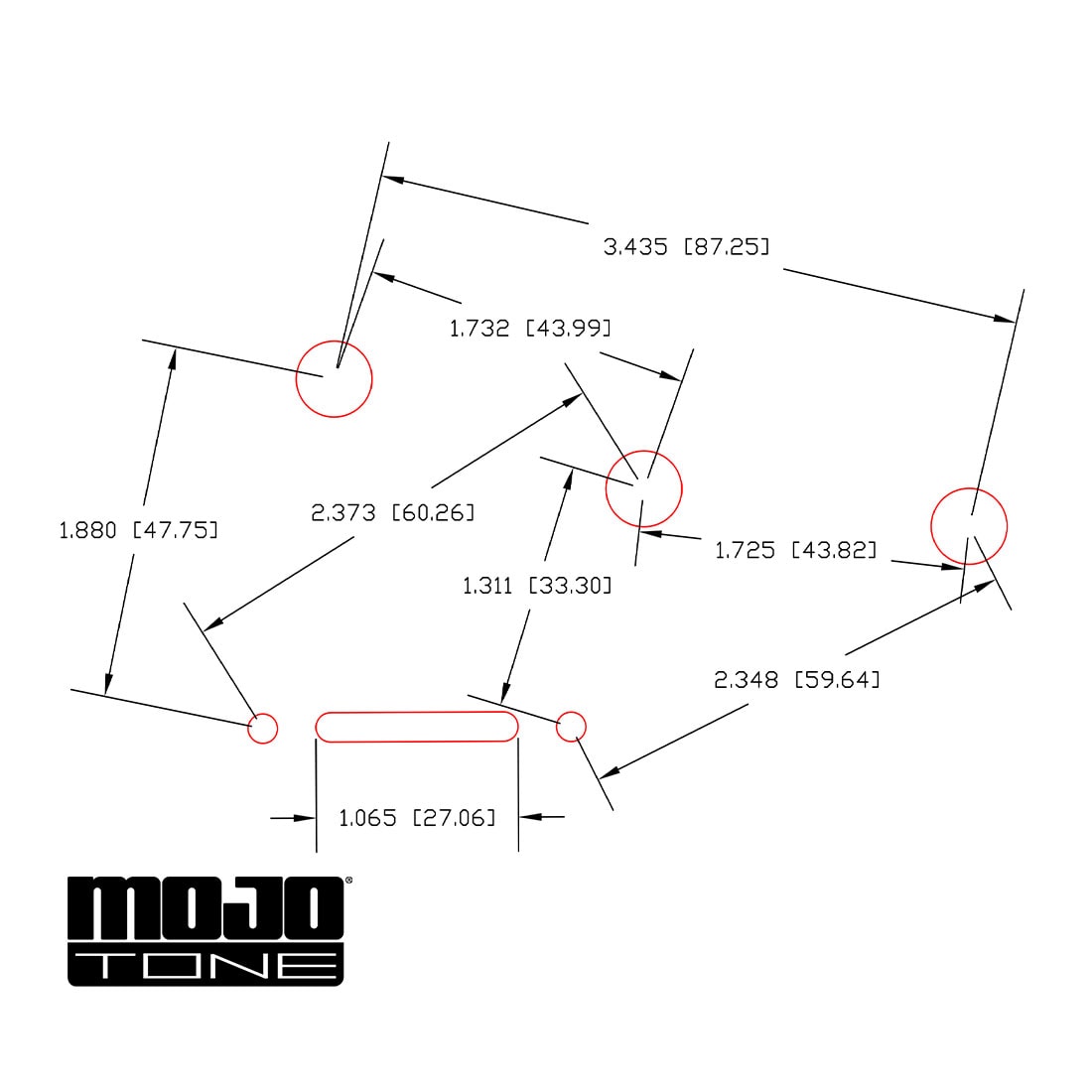

  • Guitars made overseas may require you to enlarge the holes for the larger US spec pots to fit
  • You will also need to change the metric knobs to inch sized 24-knurl push-on knobs and the switch tip (see related items)
DOCUMENTATION

Installation Instructions

Tele 3-Way Solderless Wiring Diagram
