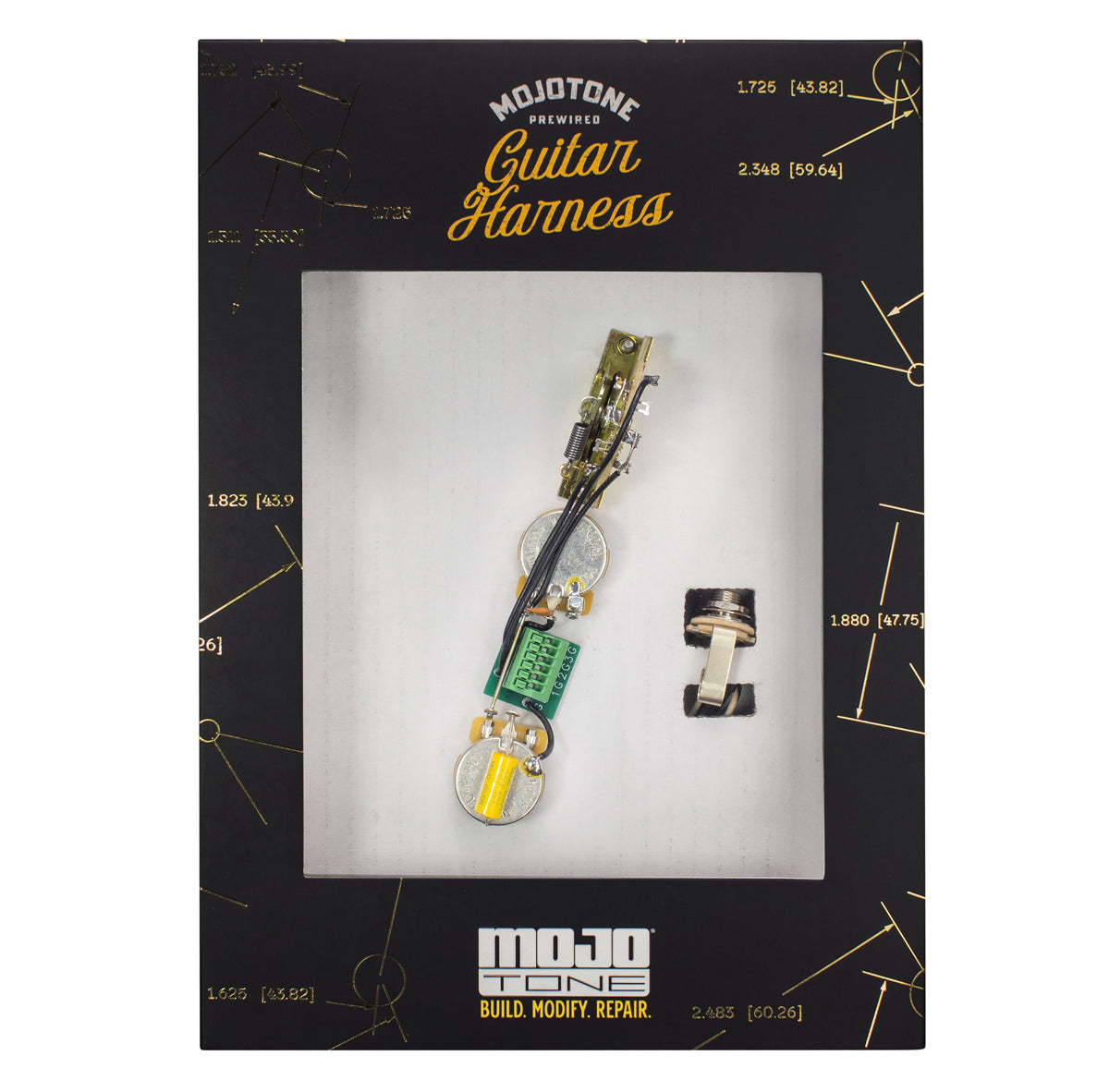

Solderless Quiet Coil Tele 3-Way Wiring Harness
Solderless Quiet Coil Tele 3-Way Wiring Harness
#Z457412

Solderless Quiet Coil Tele 3-Way Wiring Harness

This is a 3-way standard kit for our Quiet Coil Telecaster pickups, or for Teles with dual humbuckers, that utilizes 500k potentiometers. It uses a master volume and master tone control for both pickups. Use set-screw knobs only.

No soldering required - simply attach your pickup leads, ground wires and the included jack wires, and you are ready to rock!



All of our wiring harnesses are proudly built in Burgaw, NC!
$109.95
Shipping calculated at checkout.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

Weight: lb

Included:

  • (2) CTS 500k audio taper audio solid shaft potentiometers
  • (1) CRL 3-way switch
  • (1) Switchcraft mono input jack
  • (1) Mojotone Dijon .022uf Capacitor
  • (1 ft) Pre-tinned cloth covered black wire
  • (1 ft) Pre-tinned cloth covered white wire
  • (1) Volume mod cap

NOTE:

  • Standard Tele wiring diagram included shows 250k pots and a .047uf capacitor
  • This harness utilizes 500k pots and a .022uf capacitor
DOCUMENTATION

Installation Instructions

Tele 3-Way Solderless Wiring Diagram
