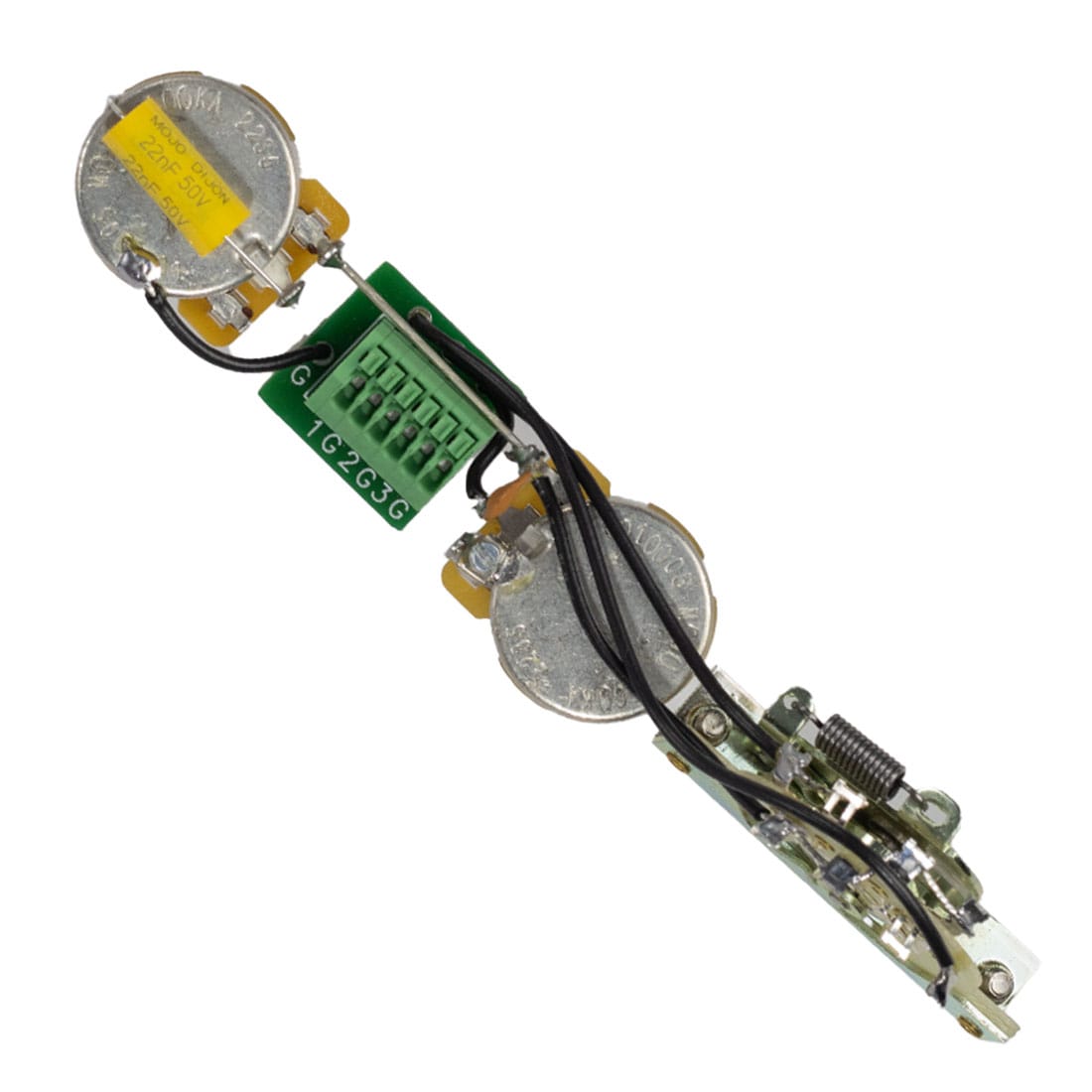

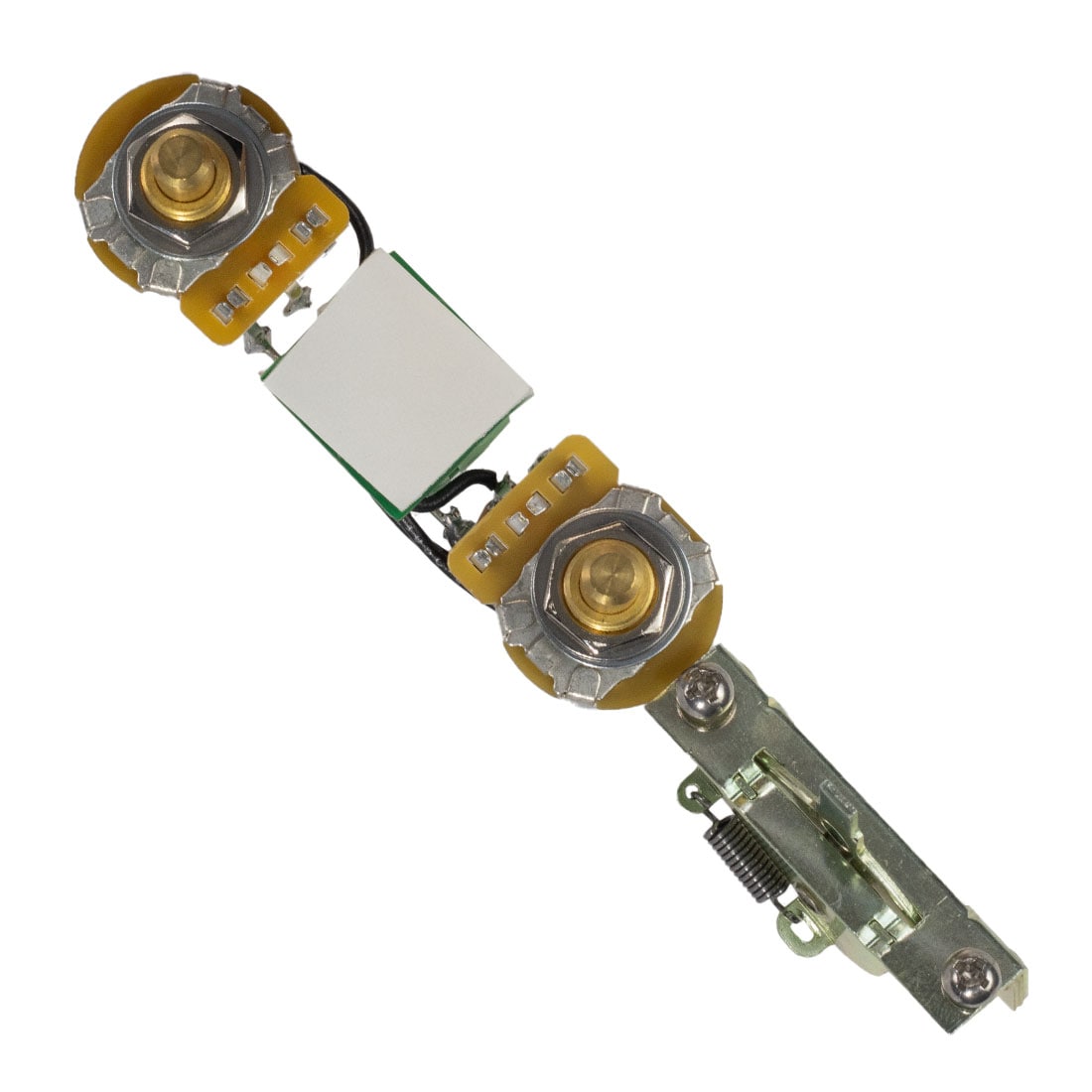

Solderless Quiet Coil Tele 3-Way Wiring Harness
Solderless Quiet Coil Tele 3-Way Wiring Harness
Solderless Quiet Coil Tele 3-Way Wiring Harness
Solderless Quiet Coil Tele 3-Way Wiring Harness
#Z457412

Solderless Quiet Coil Tele 3-Way Wiring Harness

This is a 3-way standard kit for our Quiet Coil™ Telecaster® pickups, or for Teles® with dual humbuckers, that utilizes 500k potentiometers. It uses a master volume and master tone control for both pickups. Use set-screw knobs only.

No soldering required - simply attach your pickup leads, ground wires and the included jack wires, and you are ready to rock!



All of our wiring harnesses are proudly built in Burgaw, NC!
$109.95
Shipping calculated at checkout.
Financing Available

As low as /mo

Split your purchase into simple monthly payments with Affirm.

Real support from real techs

$5 U.S. shipping over $99

Trusted by guitarists for 25+ years

Built By Players

SPECS

WEIGHT:lb

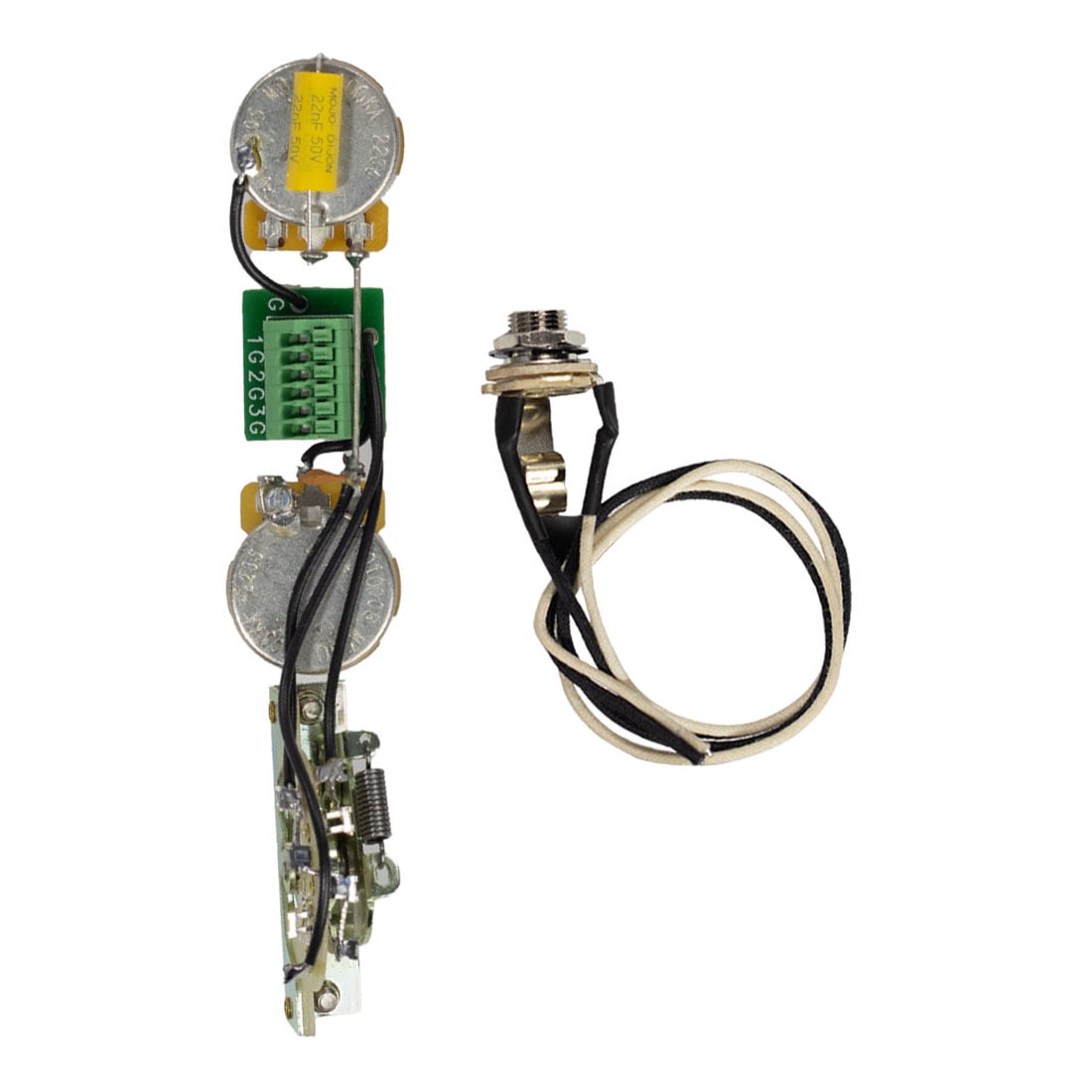

Included:

  • (2) CTS 500k audio taper audio solid shaft potentiometers
  • (1) CRL 3-way switch
  • (1) Switchcraft mono input jack
  • (1) Mojotone Dijon .022uf Capacitor
  • (1 ft) Pre-tinned cloth covered black wire
  • (1 ft) Pre-tinned cloth covered white wire
  • (1) Volume mod cap

NOTE:

  • Standard Tele wiring diagram included shows 250k pots and a .047uf capacitor
  • This harness utilizes 500k pots and a .022uf capacitor
DOCUMENTATION

Installation Instructions

Tele 3-Way Solderless Wiring Diagram
Solderless Quiet Coil Tele 3-Way Wiring Harness
