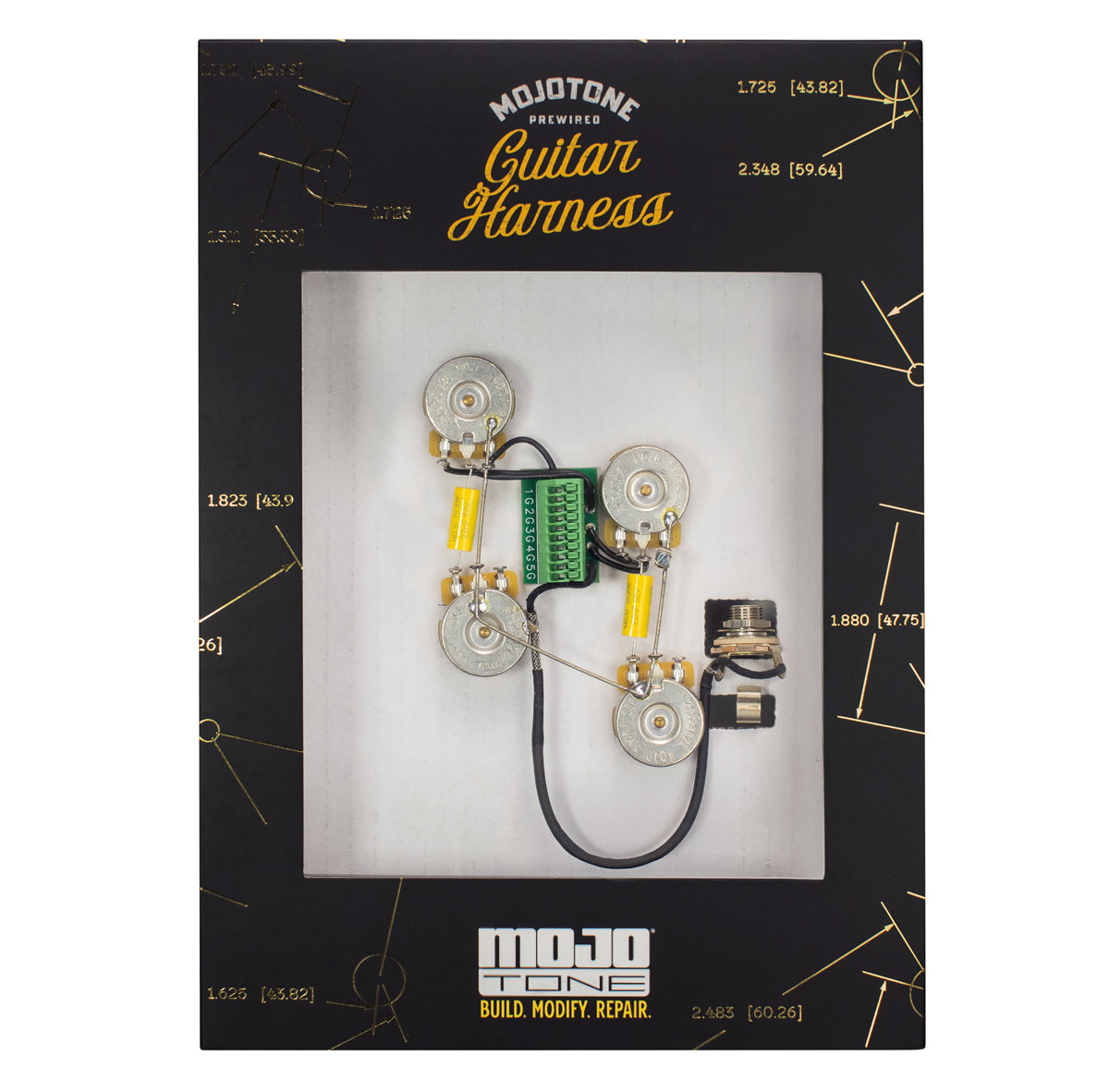

Solderless Les Paul Guitar Wiring Harness (Long Shaft)
Solderless Les Paul Guitar Wiring Harness (Long Shaft)
Solderless Les Paul Guitar Wiring Harness (Long Shaft)
Solderless Les Paul Guitar Wiring Harness (Long Shaft)
#Z457407-LS

Solderless Les Paul Guitar Wiring Harness (Long Shaft)

Upgrading to high quality electronics makes a difference, and solderless makes it easier!

Do you like swapping pickups, or maybe you don't want to solder because you're afraid of messing things up? Our solderless assemblies provide the easiest solution and most reliable connections with a simple push and release of a button. All while offering a superior quality electronic upgrade for your guitar.

No bulky plugs or add-ons are needed for our solderless harness to work. Just strip back your existing wires from your pickups and guitar, insert them into our solderless connector, and you're done!

All of our wiring harnesses are proudly built in Burgaw, NC!
$169.95
Shipping calculated at checkout.
$5 U.S. shipping over $99
 Real support from real techs
Trusted by guitarists for 25+ years
SPECS

Weight: lb

  • Push-in solderless wire connection for quick installation and easy pickup swaps
  • Vintage quality USA branded components (Switchcraft, Mojotone, and CTS)
  • Smooth custom taper, CTS industrial potentiometers with solid brass bushings
  • Purpose-built, ultra-musical Mojotone Dijon capacitors
  • Pre-wired industrial quality Switchcraft toggle switch included
  • Hand-wired point-to-point by Mojotone in the USA


Included:

  • (4) CTS 500k vintage taper long shaft potentiometers
  • (1) Switchcraft USA toggle switch (Switch tip sold separately)
  • (1) Switchcraft USA mono input jack
  • (2) Mojotone Dijon .022uf capacitor
  • (1) Detailed wiring diagram and instructions


Note:

  • Guitars made overseas may require you to enlarge the holes for the larger US spec pots to fit
  • You will also need to change the metric knobs to inch sized 24-knurl push-on knobs and the switch tip (see related items)
DOCUMENTATION

Solderless Les Paul Wiring Diagram
