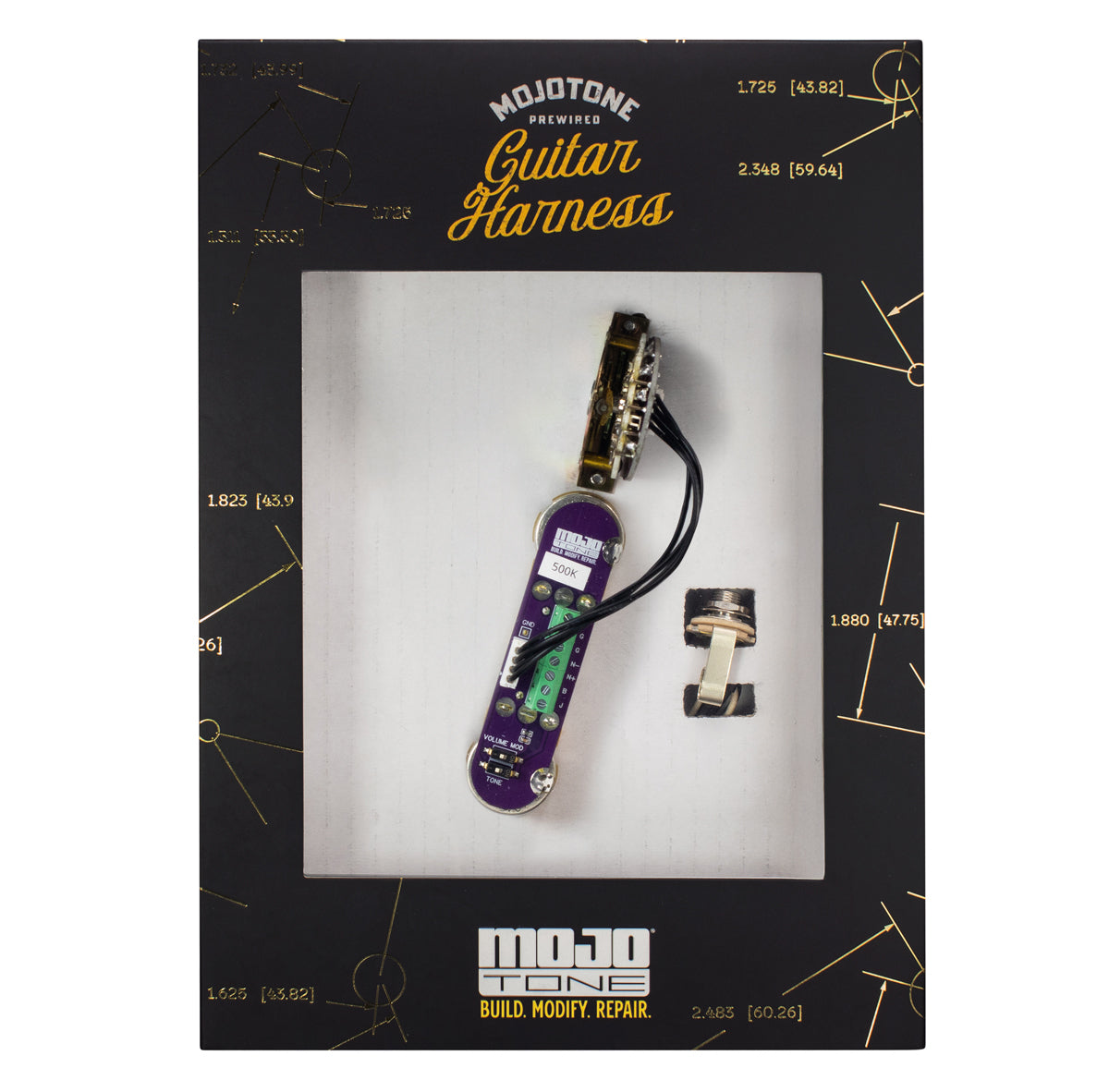

Solderless Convertible Tele 4-Way Guitar Wiring Harness- 500K Potentiometers Humbucker Pickup Version
Solderless Convertible Tele 4-Way Guitar Wiring Harness- 500K Potentiometers Humbucker Pickup Version
#4457584-500

Solderless Convertible Tele 4-Way Guitar Wiring Harness- 500K Potentiometers Humbucker Pickup Version

Upgrading to premium quality electronics makes a difference, and Mojotone's Solderless harnesses make it easier!

Do you like swapping pickups, or maybe you don't want to solder because you're afraid of messing things up? Our solderless assemblies provide the easiest solution and most reliable connections with our superior quality screw down terminals.

Best of all, by simply flipping a switch or two on the back, you can choose to bypass the treble bleed and/or the tone potentiometer. This versatility gives you some of the best tonal options a Tele can have.

* Please note, you may have to enlarge the slot on your control plate for the 4th position to fully engage.



All of our wiring harnesses are proudly built in Burgaw, NC!
$109.95
Shipping calculated at checkout.
Only 7 left in stock. Order soon.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

Weight: .1 lb

  • Screw down solderless wire connection for easy/reliable installation and quick pickup swaps
  • Vintage quality USA branded components (Switchcraft, Mojotone, Oak Grigsby, and CTS)
  • Oak Grigsby is by far the best lever switch made in our opinion
  • Smooth custom taper made to Mojotone specifications, our CTS industrial potentiometers come with solid brass bushings and the tightest tolerances available
  • Pre-wired Switchcraft mono jack with pre-tinned push-back cloth covered wire
  • Transparent and musical Mojotone Dijon Capacitor (.022uF) designed specifically for guitar and bass tone controls
  • Optional tone potentiometer (on/off switch) for even more punch and brightness in your sound
  • Optional volume mod (on/off switch) for retaining high end detail while rolling the volume back
  • Can be rotated for use as a ‘reverse’ harness with the switch near the bottom and the volume control at the top
  • Easily serviceable for any future component swaps or maintenance
  • Screwdriver included


Master Volume: Top Knob
Master Tone: Bottom Knob


Master Switch

  • Position 1: Bridge
  • Position 2: Bridge and Neck (Parallel) Standard Tele sound
  • Position 3: Neck
  • Position 4: Neck and Bridge (Series) Fat humbucker tone

Internal Switches:

  • Volume Mod/Treble Bleed: On/Off
  • Tone Potentiometer: On/Off

    Included:
  • (2) CTS Vintage Taper solid shaft potentiometers
  • (1) Oak Grigsby 4-way lever switch (Switch tip sold separately)
  • (1) Prewired Switchcraft USA mono input jack
  • (1) Mojotone Dijon Tin Foil capacitor (.022uF)
  • (1) Optional Treble Bleed (Preserves highs on volume control)
  • (1) Detailed wiring diagram and easy to understand instructions


Note:
Guitars made overseas may require a control plate with holes for the larger US spec pots to fit. You may also need to change the metric knobs to 1/4" set-screw Dome or '72 Deluxe knobs, as well as the switch tip. See related items. If you have a non-Fender brand Tele or overseas made Tele, please verify the fit before purchasing.


*Please note, you may have to enlarge the slot on your control plate for the 4th position to fully engage.*
DOCUMENTATION

Solderless Prewired Kit

Convertible Tele 4-Way Wiring Diagram
