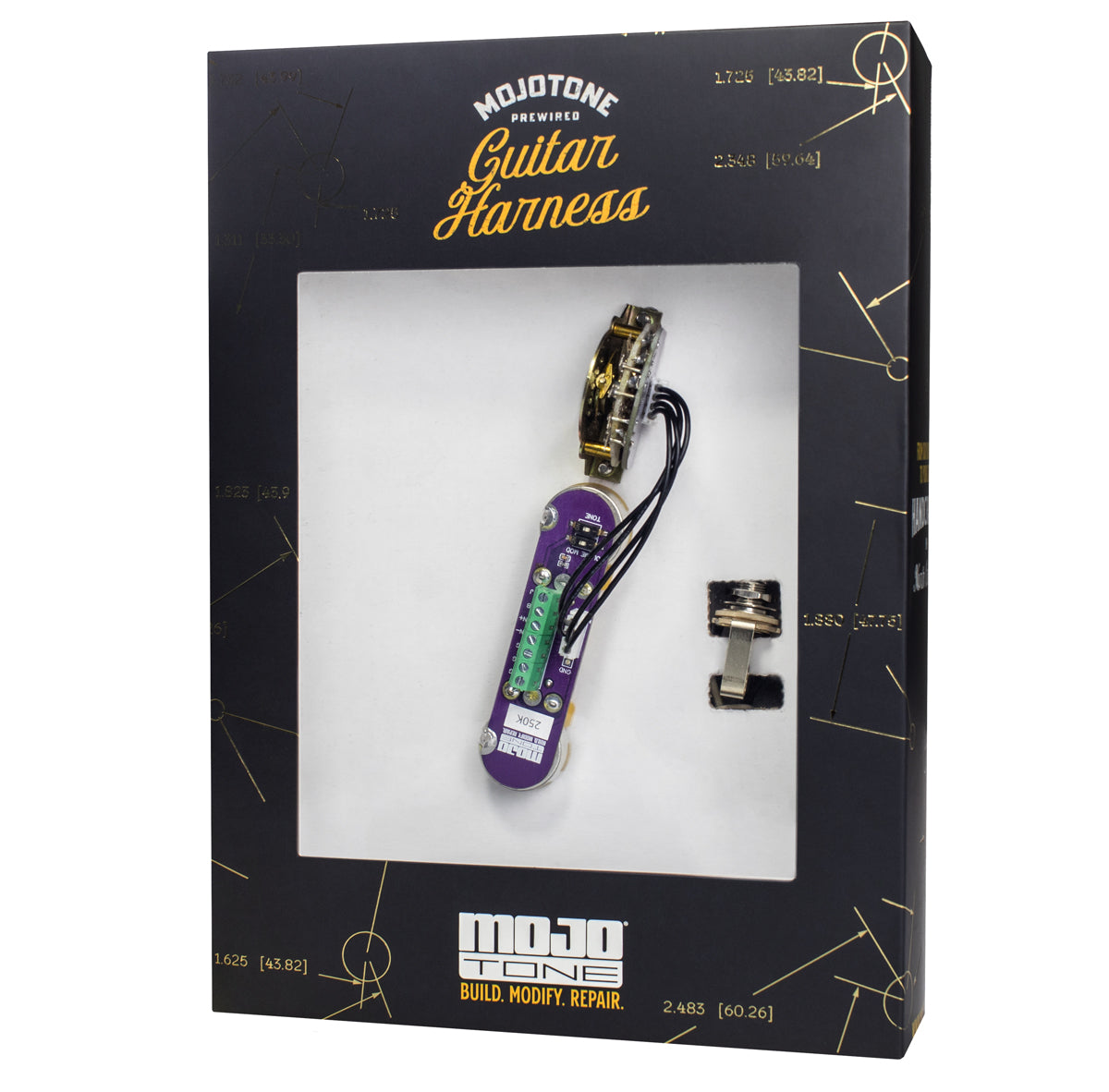

Solderless Convertible Tele 4-Way Guitar Wiring Harness- 250K Potentiometers Single Coil Pickup Version
Upgrading to premium quality electronics makes a difference, and Mojotone's Solderless harnesses make it easier!
Do you like swapping pickups, or maybe you don't want to solder because you're afraid of messing things up? Our solderless assemblies provide the easiest solution and most reliable connections with our superior quality screw down terminals.
Best of all, by simply flipping a switch or two on the back, you can choose to bypass the treble bleed and/or the tone potentiometer. This versatility gives you some of the best tonal options a Tele® can have.
* Please note, you may have to enlarge the slot on your control plate for the 4th position to fully engage.
All of our wiring harnesses are proudly built inBurgaw, NC!
Split your purchase into simple monthly payments with Affirm.
Real support from real techs
$5 U.S. shipping over $99
Trusted by guitarists for 25+ years
Built By Players
SPECS
Weight:.1 lb
Screw down solderless wire connection for easy/reliable installation and quick pickup swaps
Vintage quality USA branded components (Switchcraft, Mojotone, Oak Grigsby, and CTS)
Oak Grigsby is by far the best lever switch made in our opinion
Smooth custom taper made to Mojotone specifications, our CTS industrial potentiometers come with solid brass bushings and the tightest tolerances available
Pre-wired Switchcraft mono jack with pre-tinned push-back cloth covered wire
Transparent and musical Mojotone Dijon Capacitor (.047uF) designed specifically for guitar and bass tone controls
Optional tone potentiometer (on/off switch) for even more punch and brightness in your sound
Optional volume mod (on/off switch) for retaining high end detail while rolling the volume back
Can be rotated for use as a ‘reverse’ harness with the switch near the bottom and the volume control at the top
Easily serviceable for any future component swaps or maintenance
Screwdriver included
Master Volume: Top Knob Master Tone: Bottom Knob
Master Switch
Position 1: Bridge
Position 2: Bridge and Neck (Parallel) Standard Tele sound
Position 3: Neck
Position 4: Neck and Bridge (Series) Fat humbucker tone
Internal Switches
Volume Mod/Treble Bleed: On/Off
Tone Potentiometer: On/Off
Included:
(2) CTS Vintage Taper solid shaft potentiometers
(1) Oak Grigsby 4-way lever switch (Switch tip sold separately)
(1) Prewired Switchcraft USA mono input jack
(1) Mojotone Dijon Tin Foil capacitor (.047uF)
(1) Optional Treble Bleed (Preserves highs on volume control)
(1) Detailed wiring diagram and easy to understand instructions
Note:
Guitars made overseas may require a control plate with holes for the larger US spec pots to fit. You may also need to change the metric knobs to 1/4" set-screw Dome or '72 Deluxe knobs, as well as the switch tip. See related items. If you have a non-Fender brand Tele or overseas made Tele, please verify the fit before purchasing.
*Please note, you may have to enlarge the slot on your control plate for the 4th position to fully engage.*
