Solderless Convertible Strat Guitar Wiring Harness- 500K Potentiometers Humbucker Pickup Version

• Screw down solderless wire connection for easy/reliable installation and quick pickup swaps
• Vintage quality USA branded components (Switchcraft, Mojotone, CRL, and CTS)
• USA made CRL Switch
• The most reliable and smoothest feeling switch ever made and hasn't changed since the 50's
• Smooth custom taper made to Mojotone specifications our CTS industrial potentiometers come with solid brass bushings and the tightest tolerances available
• Pre-wired Switchcraft mono jack with pre-tinned push-back cloth covered wire
• Transparent and musical Mojotone Dijon Capacitor (.022uF) designed specifically for guitar and bass tone controls
• Switchable between our most popular Blender or Standard mod wiring
• Optional volume mod (on/off switch) for retaining high end detail while rolling the volume back
• Easily serviceable for any future component swaps or maintenance
• Screwdriver included

Blender Control Functions:

• Unlike standard wiring, Blender wiring adds the option for all 3 pickups to be on at once and the ability to combine the neck and bridge pickups as much as you want.


• Master Volume: Top Knob
• Master Tone: Middle Knob
• Blender Control: Bottom Knob


Blender knob on 10:

• Position 1: Bridge
• Position 2: Bridge and Middle
• Position 3: Middle
• Position 4: Middle and Neck
• Position 5: Neck



Blender knob on 0:

• Position 1: Bridge (with Neck blended in)
• Position 2: Bridge and Middle (with Neck blended in)
• Position 3: Middle
• Position 4: Middle and Neck (with Bridge blended in)
• Position 5: Neck (with Bridge blended in)

Standard Mod Control Functions:

• Standard strat wiring with no tone control for the middle pickup only. This reduces the load on positions 2 and 4 to only one tone pot, giving you a more clear and open tone when combining the neck/middle or bridge middle pickups. AKA the “EJ Mod”.


• Master Volume: Top Knob
• Neck Tone: Middle Knob
• Bridge Tone: Bottom Knob



Standard Switching

• Position 1: Bridge
• Position 2: Bridge and Middle
• Position 3: Middle
• Position 4: Middle and Neck
• Position 5: Neck

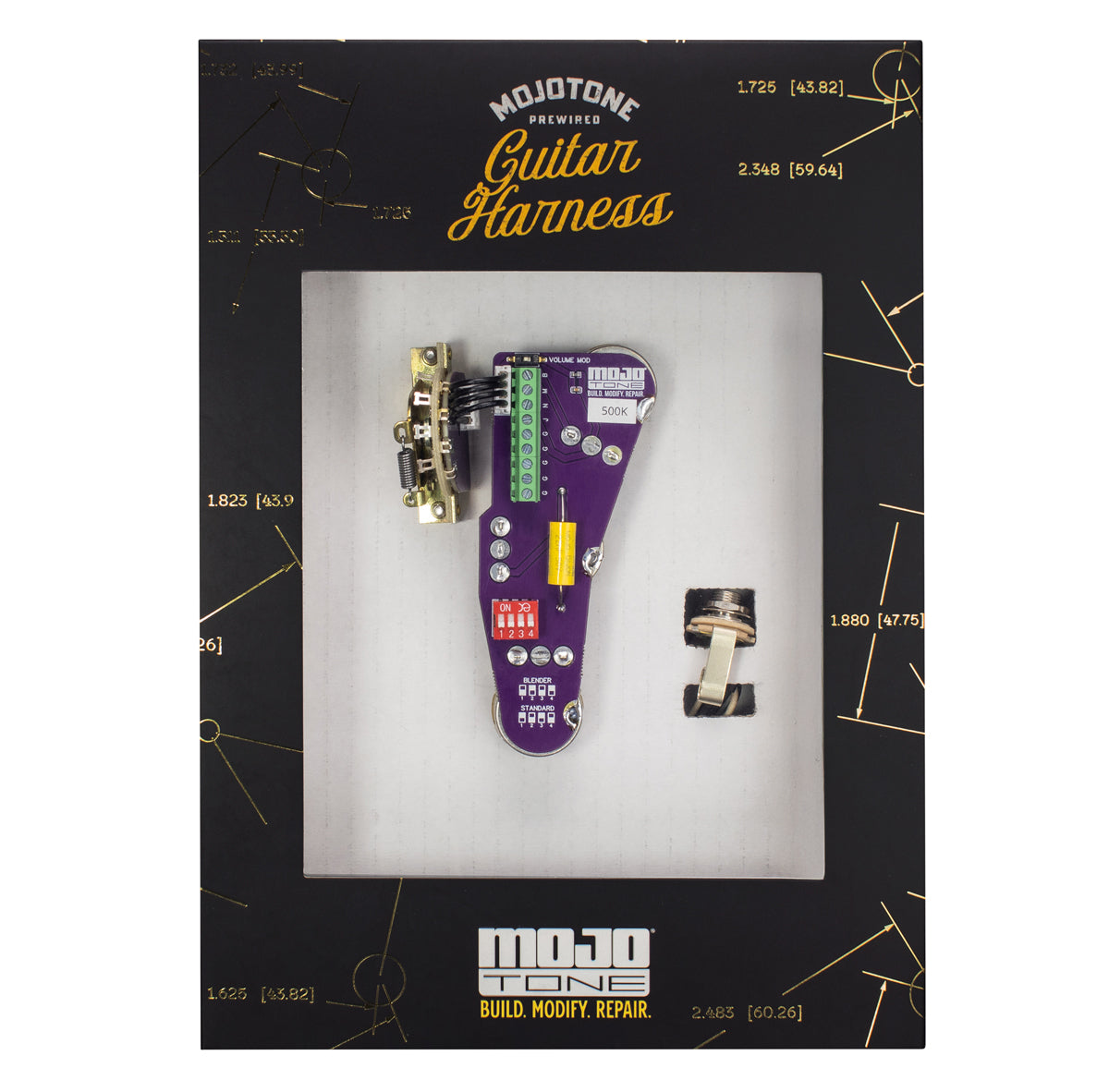

Included:

• (2) CTS Vintage taper split shaft potentiometers
• (1) CTS Blender split shaft potentiometer
• (1) CRL USA 5-way lever switch (Switch tip sold separately)
• (1) Prewired Switchcraft USA mono input jack
• (1) Mojotone Dijon Tin Foil capacitor (.022uF)
• (1) Optional Treble Bleed (Preserves highs on volume control)
• (1) Detailed wiring diagram and easy to understand instructions

• Note:
  Guitars made overseas may require you to enlarge the holes for the larger US spec pots to fit
• You will also need to change the metric knobs to inch sized 24-knurl push-on knobs and the switch tip (see related items)
• If you have a non-Fender brand strat or overseas made strat please verify the fit before purchasing

Solderless Convertible Strat Wiring Diagram
