#S357188-WH-WP1

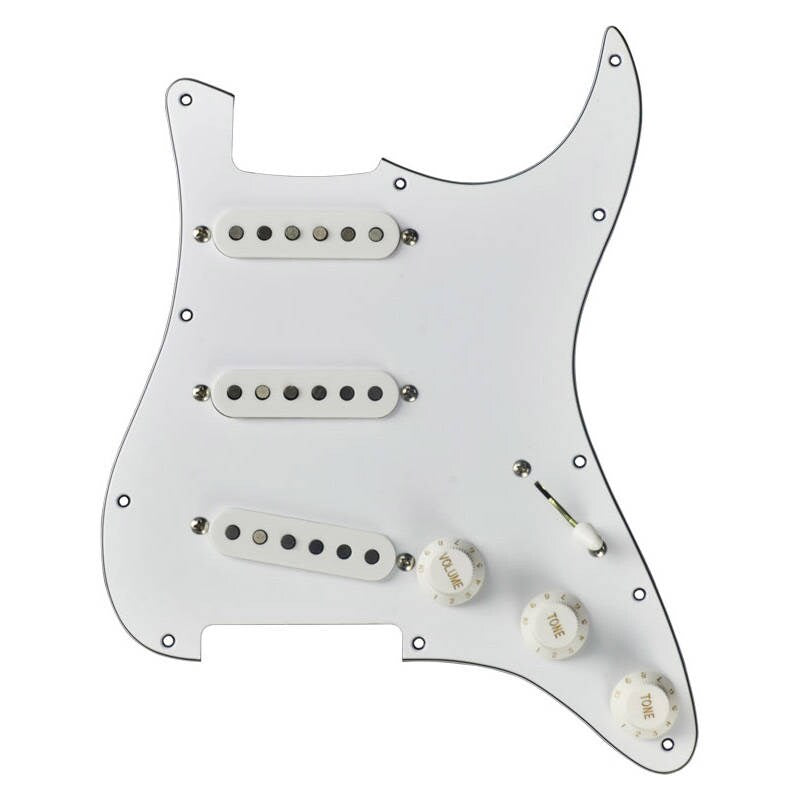

Rene Martinez Texas Strat® Pickup Prewired Pickguard

Mojotone is excited and honored to have worked with such a renowned luthier to develop our Rene Martinez "Texas" Strat® Pickups.  These were developed to emulate that specific and unique "Texas Tone" which was inspired by the one and only SRV.

Rene Martinez was originally Stevie Ray Vaughan's hand-picked guitar tech. He also worked with Eddie Brickell, Mick Jones of Foreigner, Clint Black, Prince, The Moody Blues, Jimmie Vaughan, Carlos Santana, and currently John Mayer. You can find out more about his amazing career here.

Mojotone prewired solderless pickguards are completely prewired to perfection with no soldering required. Just drop in and play. Our exclusive 7% tolerance CTS pots, Switchcraft jack, Mojotone Dijon capacitor, and CRL 5-way switch compliment the highest quality strat pickups ever made. Best of all, you can choose between the most popular Strat wiring schemes (Blender or Standard) that are simple to use and offer the best tonal options a Strat can have.

The magnets are customized Alnico III in the neck and middle and Alnico V in the bridge to give a full and balanced tone. You get that clean, ultra clear neck and middle tone that lets your amp shape your tone, while the bridge pickup is hotter with more girth and punch, and a sonic clarity that cuts through with attitude. The coils are calibrated from neck to bridge for an even volume throughout the switching.

Be the first in your town to own a set designed by such an acclaimed luthier. These come stock with staggered magnets with a raised D specifically for unwound 3rd string sets. Vacuum potted coils.

All of our pickups and wiring harnesses are proudly built in Burgaw, NC!

Click here for current lead times
$359.95
Shipping calculated at checkout.
Only 2 left in stock. Order soon.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

Weight: 1.6 lb

Neck: 5.9K
Middle (RWRP): 6.2k
Magnet: Alnico 3

Bridge: 7.5K
Magnet: Alnico 5

Features:

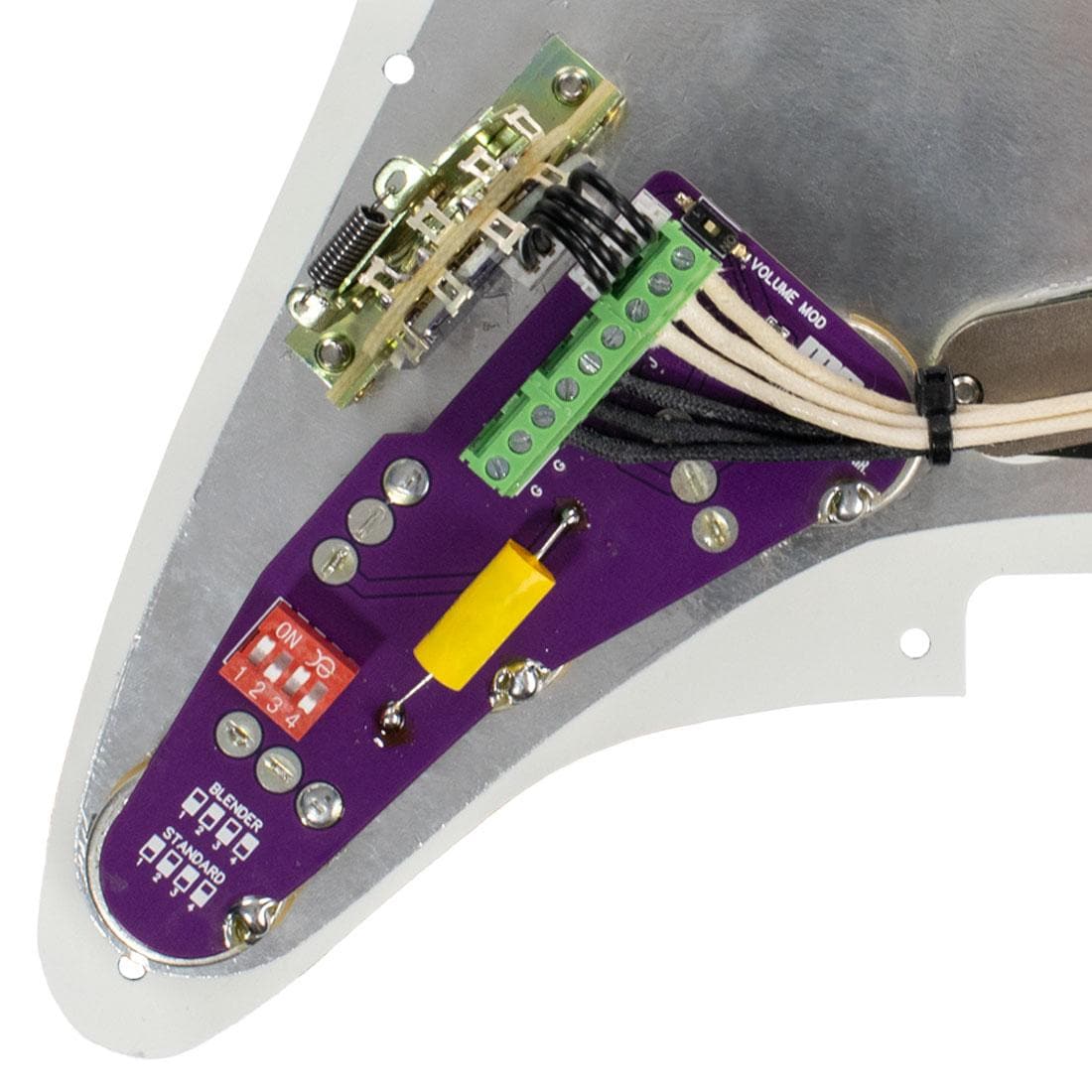

  • Screw down solderless wire connection for easy/reliable installation and quick pickup swaps!
  • Vintage quality USA branded components (Switchcraft, Mojotone, CRL, and CTS)!
  • USA made CRL Switch! It's the most reliable and smoothest feeling switch ever made and hasn't changed since the 50's.
  • Smooth custom taper made to Mojotone specifications, our CTS industrial potentiometers come with solid brass bushings and the tightest tolerances available.
  • Pre-wired Switchcraft mono jack with pre-tinned push-back cloth covered wire.
  • Transparent and musical Mojotone Dijon Capacitor designed specifically for guitar and bass tone controls.
  • Switchable between our most popular Blender or Standard mod wiring.
  • Optional volume mod (on/off switch) for retaining high end detail while rolling the volume back.
  • Easily serviceable for any future component swaps or maintenance.
  • Screwdriver included.

Blender Control Functions: Unlike standard wiring, Blender wiring adds the option for all 3 pickups to be on at once and the ability to combine the neck and bridge pickups as much as you want.

  • Master Volume: Top Knob
  • Master Tone: Middle Knob
  • Blender Control: Bottom Knob

Blender knob on 10

  • Position 1: Bridge
  • Position 2: Bridge and Middle
  • Position 3: Middle
  • Position 4: Middle and Neck
  • Position 5: Neck

Blender knob on 0

  • Position 1: Bridge (with Neck blended in)
  • Position 2: Bridge and Middle (with Neck blended in)
  • Position 3: Middle
  • Position 4: Middle and Neck (with Bridge blended in)
  • Position 5: Neck (with Bridge blended in)

Standard Mod Control Functions: Standard strat wiring with no tone control for the middle pickup only. This reduces the load on positions 2 and 4 to only one tone pot, giving you a more clear and open tone when combining the neck/middle or bridge middle pickups. AKA the “EJ Mod”.

  • Master Volume: Top Knob
  • Neck Tone: Middle Knob
  • Bridge Tone: Bottom Knob

Standard Switching

  • Position 1: Bridge
  • Position 2: Bridge and Middle
  • Position 3: Middle
  • Position 4: Middle and Neck
  • Position 5: Neck

Included:

  • (3) CTS 250k vintage taper split shaft potentiometers
  • (1) CRL USA 5-way lever switch (Switch tip sold separately)
  • (1) Prewired Switchcraft USA mono input jack
  • (1) Mojotone Dijon Tin Foil .047uf capacitor
  • (1) Optional Treble Bleed (Preserves highs on volume control)
  • (1) Detailed wiring diagram and easy to understand instructions

Note: Guitars made overseas may require you to enlarge the holes for the larger US spec pots to fit. You will also need to change the metric knobs to inch sized 24-knurl push-on knobs and the switch tip. See related items. If you have a non-Fender brand strat or overseas made strat, please verify the fit before purchasing.
