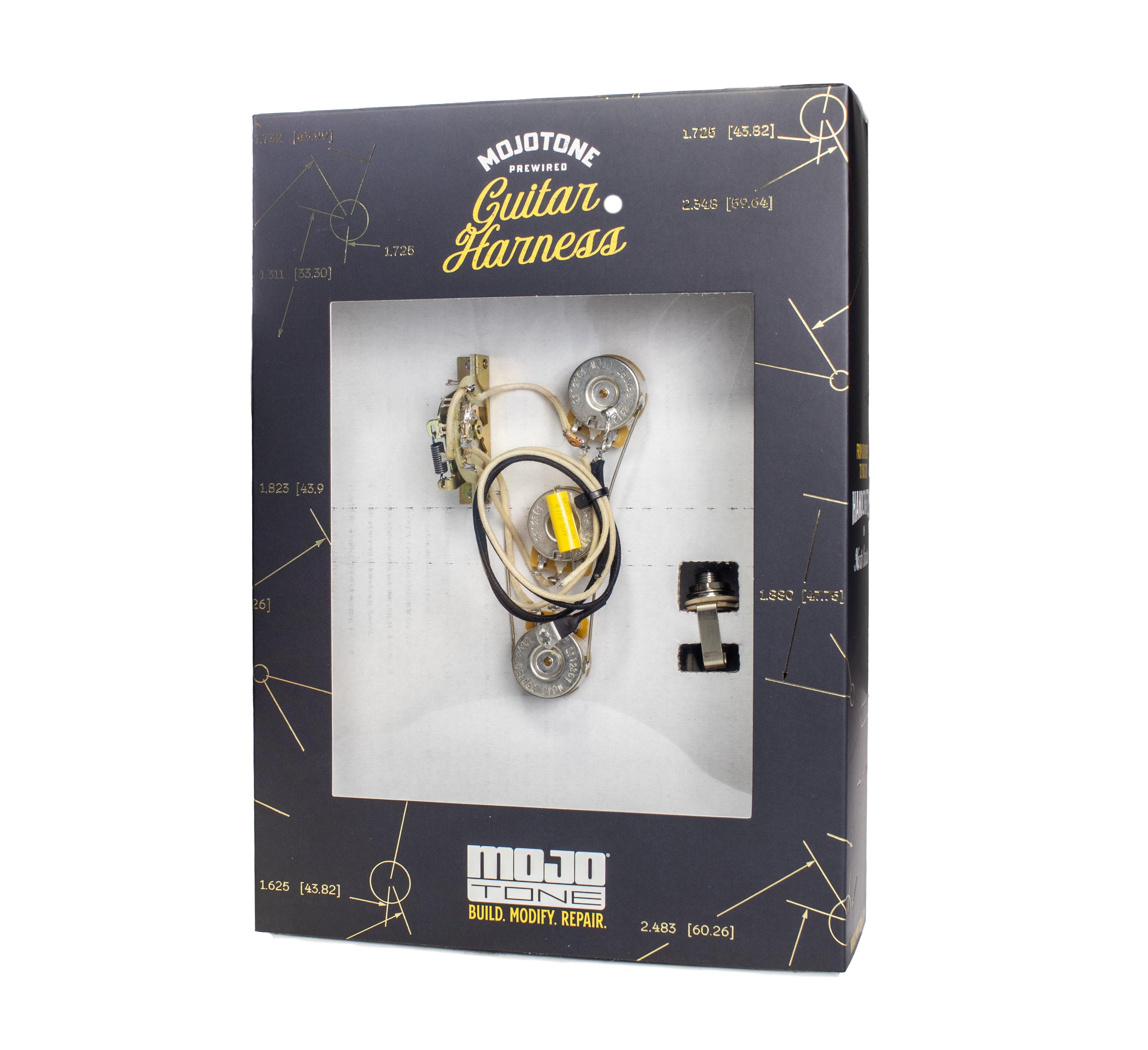

Pre-Wired 5-Way Strat Standard Wiring Harness
Pre-Wired 5-Way Strat Standard Wiring Harness
Pre-Wired 5-Way Strat Standard Wiring Harness
Pre-Wired 5-Way Strat Standard Wiring Harness
#Z457340-5S

Pre-Wired 5-Way Strat Standard Wiring Harness

It's all about the tone! At one point or another, it is essential for any guitarist to upgrade or replace the electronics in their guitar.  Each component is just as important as the next, which is why Mojotone has created a pre-wired assembly with the highest quality components on the market. Bring your guitar to life with our smooth custom taper CTS potentiometers and creamy sounding oil filled Mojotone Dijon capacitors for a vast improvement over your stock electronics!

This harness comes complete and ready to install - all you need to do is solder on your pickup and ground wires!

Don't forget to check out our selection of knobs here and switch tips here.

All of our wiring harnesses are proudly built in Burgaw, NC!
$109.95
Shipping calculated at checkout.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

Weight: lb

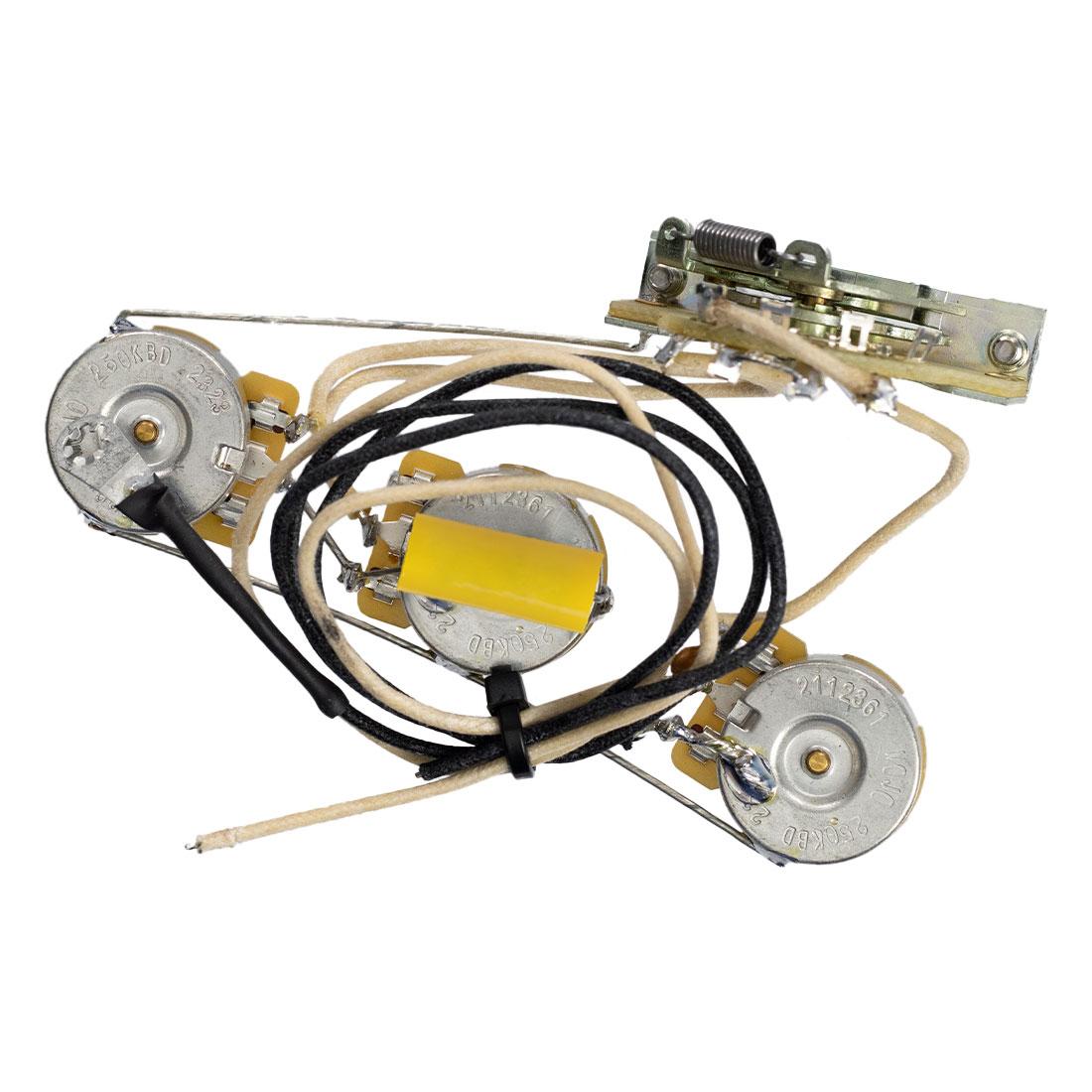

This is a 5-way standard kit for Stratocaster guitars.
It uses a master volume, tone control for the neck pickup, and a shared tone control for the middle and bridge pickups.
Use 24 knurl push on knobs for the split shaft pots.

Included:

  • CTS 250k vintage taper audio split shaft 7% tolerance potentiometers
  • CRL 5-way switch
  • Switchcraft mono input jack
  • Mojotone Dijon .047uf capacitor
  • Pre-tinned cloth covered wire
  • Volume mod (Treble Bleed)


Switch Positions:
1. Bridge
2. Bridge & Middle
3. Middle
4. Neck & Middle
5. Neck
DOCUMENTATION

Strat 5-Way Standard Wiring Diagram
