#Z457340-5H

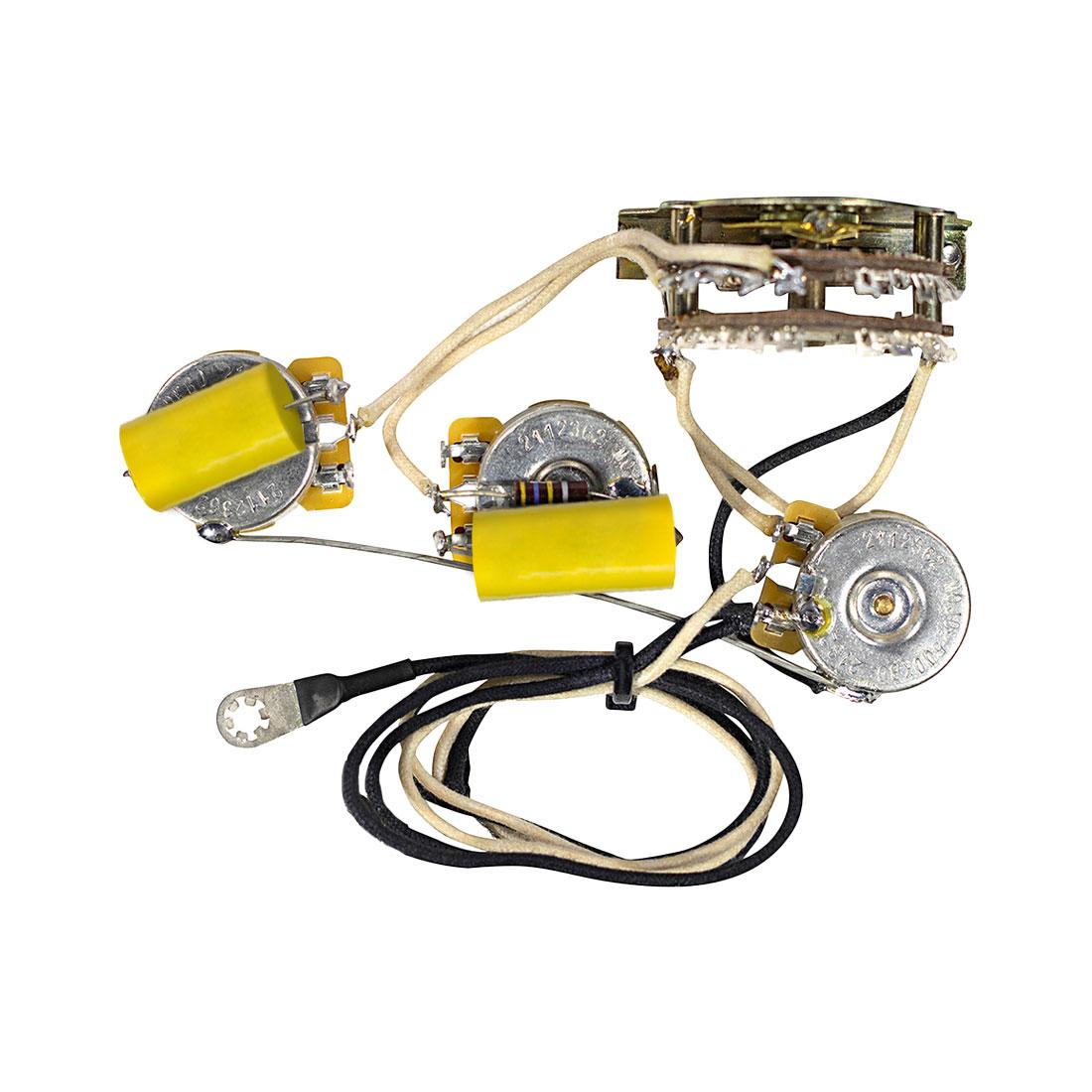

Pre-Wired 5-Way Strat HSS Wiring Harness

It's all about the tone! There are no words to describe the highest level of quality we provide with our wiring kits and components. Bring your guitar to life with our smooth custom taper CTS potentiometers and creamy sounding Mojotone Dijon capacitors for a vast improvement over your stock electronics!

This harness comes complete and ready to install - you only need to solder on your pickup and ground wires!

Don't forget to check out our selection of knobs here and switch tips here.

All of our wiring harnesses are proudly built in Burgaw, NC!
$119.95
Shipping calculated at checkout.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

WEIGHT:lb

This is a 5-way super switch kit for HSS style Strats with a humbucker in the bridge position.
It uses a master volume, shared tone control for the neck and middle pickups, and a tone control for the bridge pickup.
500k pots give the humbucker the correct load and we use a resistor on the single coils to give them the correct 250k load so there is no compromise mixing single coils with humbuckers.
Use 24 knurl push on knobs for the split shaft pots.

Included:

  • Mojotone custom CTS 500k split shaft potentiometers
  • Oak Grigsby 5-way super switch (no tip)
  • Switchcraft mono input jack
  • Mojotone Dijon .047uf capacitor (for single coils)
  • Mojotone Dijon .022uf capacitor (for humbucker)
  • Pre-tinned cloth covered wire


Switch Positions:
1. Bridge
2. Bridge & Middle (humbucker coil tapped)
3. Middle
4. Neck & Middle
5. Neck
DOCUMENTATION

Strat HSS 5-Way Wiring Diagram
