#5252108

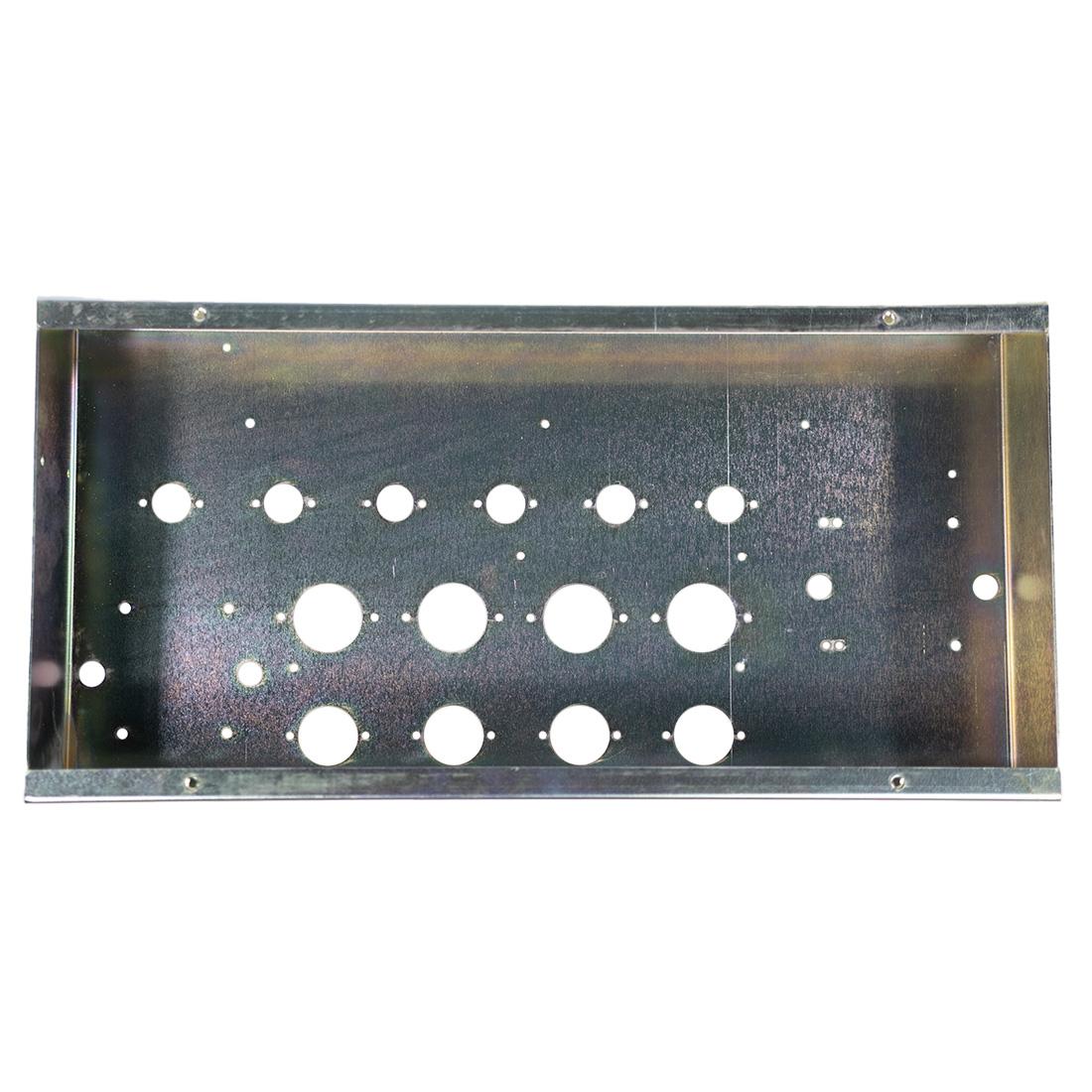

Mojotone Custom 100 Chassis

This chassis is used in our Custom 100 and Custom 50 amp kits.  It is made of zinc-plated steel.  It is a near exact replica of the original DR103 and DR504 chassis.

Use MOJO SKU: 8055259 10-32 x 1 screws for chassis mounting.
$118.95
Shipping calculated at checkout.
$5 U.S. shipping over $99
 Real support from real techs
Trusted by guitarists for 25+ years
SPECS

Weight: 5.3 lb

Material:16 Gauge zinc-plated steel

Thickness: 0.064"

Dimensions: 19" x 9 1/2" x 2 3/4"

Weight: 5.3 lbs.

Octal Socket Holes:4

9-Pin Socket Holes:6

Power Transformer:<a href="https://www.mojotone.com/Hiwatt-100-Watt-Power-Transformer">MOJO784</a>

Output Transformer:<a href="https://www.mojotone.com/Hiwatt-100-Watt-Output-Transformer">MOJO983</a>

Faceplates:<a href="https://www.mojotone.com/Mojotone-Custom-100-Faceplate-Set">Faceplate Set</a> sold separately

Chassis Mounting: 13" x 8 3/4" center to center
