#4012100

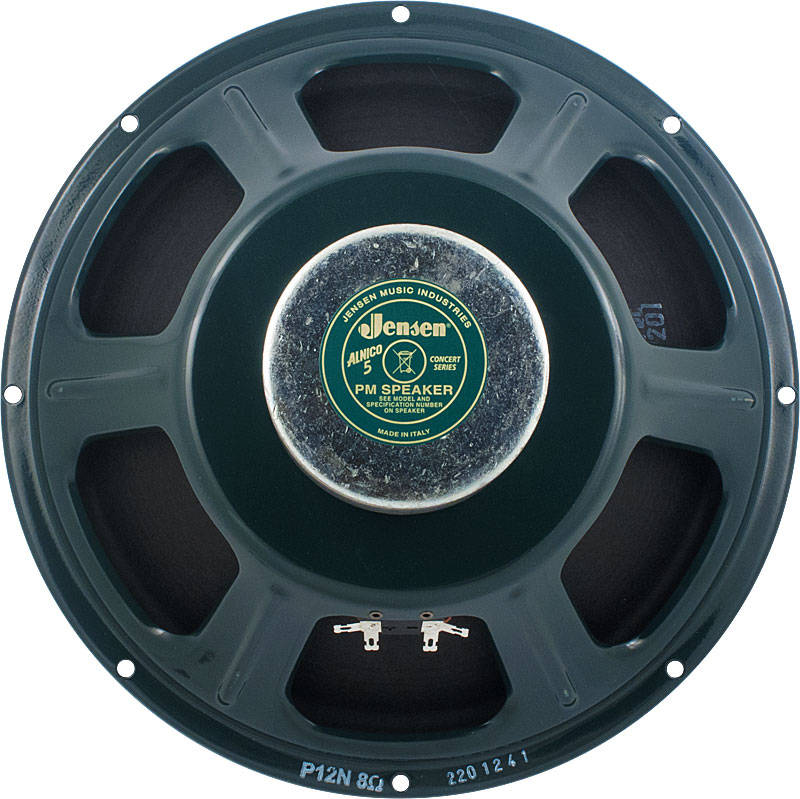

Jensen P12N 50W 12'' Replacement Alnico Speaker 8 OHM

SPECIAL ORDER ITEM

Originally introduced in the late '40s, Jensen P Series loudspeakers were used in countless vintage amps and today are considered one of the most important contributions to the sound of rock 'n' roll. The P12N uses the same lightweight, efficient alnico magnets, copper voice coil windings, and seamed paper cones to create the pure vintage tone loved by guitarists throughout the world. Does not come with bell cover. Very warm and full bodied tone with powerful mid-bite and sparkling highs. When presented with overdrive distortion, it displays a bright and colorful crunch
$329.99
Shipping calculated at checkout.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

WEIGHT:8lb

Overall Diameter: 12 in

Voice Coil Diameter: 1.5 in

Magnet Weight: 29 oz

Overall Weight: 6.6 lbs

Flux Density: 1.26 T Thiele-Small Parameters Voice Coil DC Resistance: 6.03 Ω

Resonance Frequency: 90.0 Hz

Mechanical Q Factor: 4.36

Electrical Q Factor: 0.82

Total Q Factor: 0.77

Mechanical Moving Mass: 30.9 g

Mechanical Compliance: 101 µm/N

Force Factor: 10.62 Wb/m

Acoustic Volume: 34.6 lt.

Linear Displacement: 1.00 mm

Reference Efficiency: 3.40 %

Diaphragm Area: 490.9 cm2

Electrical Resistance: 43.0 Ω

Voice Coil @ 1kHz: 0.87 mH Constructive Characteristics Magnet: Alnico

Voice Coil Winding: Copper

Voice Coil Former: Kapton

Cone: Paper

Surround: Integrated Paper

Dust Dome: Solid Paper

Basket: Pressed Sheet Steel Electrical Characteristics Nominal Impedance: 8 Ω

Rated Power: 50 W

Musical Power: 100 W

Sensitivity@1W,1m: 97.5 dB
