#4014106

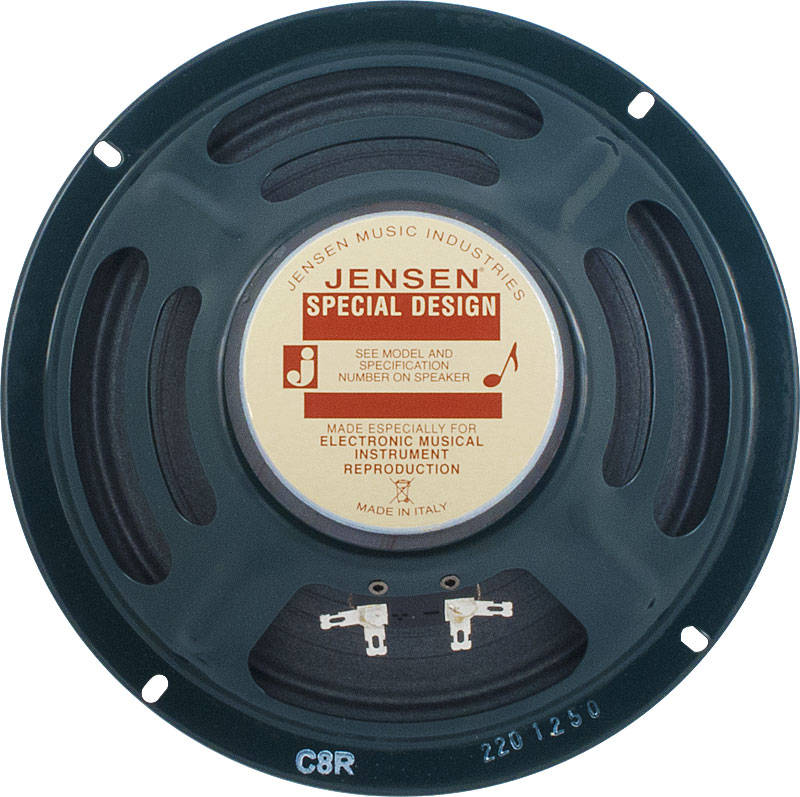

Jensen C8R 25W 8" Replacement Speaker 8 OHM

The 25 Watt C8R was predominantly used in small practice amps throughout the 1960s. This 8 speaker has a nice mid range with smooth break up. Crystal clear tone with brightly shining highs. It responds to overdrive distortion with a bright fuzz lead voice.
$59.99
Shipping calculated at checkout.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

WEIGHT:3lb

Overall Diameter: 8 in

Voice Coil Diameter: 1.0 in

Magnet Weight: 10 oz

Overall Weight: 2.20 lbs

Flux Density: 1.0 T Thiele-Small Parameters Voice Coil DC Resistance: 6.73 Ω

Resonance Frequency: 126.0 Hz

Mechanical Q Factor: 10.29

Electrical Q Factor: 2.21

Total Q Factor: 1.80

Mechanical Moving Mass: 9.0 g

Mechanical Compliance: 176 µm/N

Force Factor: 4.70 Wb/m

Acoustic Volume: 11.4 lt.

Linear Displacement: 1.0 mm

Reference Efficiency: 1.03 %

Diaphragm Area: 213.8 cm2

Electrical Resistance: 37 Ω

Voice Coil @ 1kHz: 0.43 mHConstructive Characteristics Magnet: Ferrite

Voice Coil Winding: Copper

Voice Coil Former: Kapton

Cone: Paper

Surround: Integrated Paper

Dust Dome: Solid Paper

Basket: Pressed Sheet SteelElectrical Characteristics Nominal Impedance: 4 Ω

Rated Power: 25 W

Musical Power: 50 W

Sensitivity@1W,1m: 94.4 dB
