#4013102

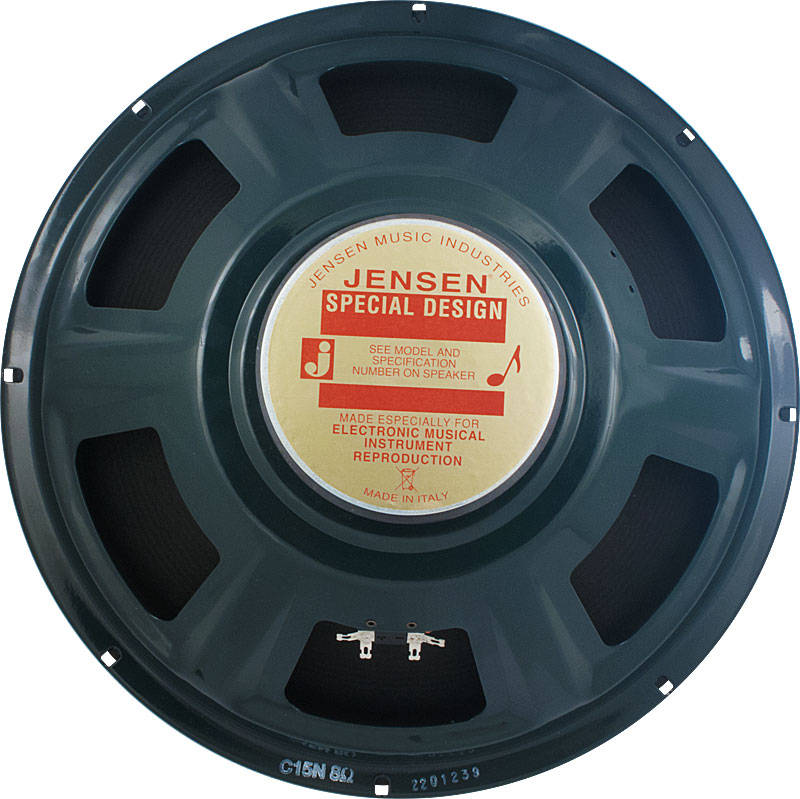

Jensen C15N 50W 15'' Replacement Speaker 8 OHM

Tight low-end and clear, bright highs. It responds to overdrive distortion with a gritty edge.
$169.99
Shipping calculated at checkout.
Only 1 left in stock. Order soon.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

WEIGHT:12lb

Overall Diameter: 15 in

Voice Coil Diameter: 1.5 in

Magnet Weight: 28.5 oz

Overall Weight: 9.26 lbs

Flux Density: 1.0 T Thiele-Small Parameters Voice Coil DC Resistance: 6.2 Ω

Resonance Frequency: 73.0 Hz

Mechanical Q Factor: 6.80

Electrical Q Factor: 1.24

Total Q Factor: 1.11

Mechanical Moving Mass: 54.7 g

Mechanical Compliance: 87 µm/N

Force Factor: 10.85 Wb/m

Acoustic Volume: 70.3 lt.

Linear Displacement: 1.0 mm

Reference Efficiency: 2.84%

Diaphragm Area: 754.8 cm2

Electrical Resistance: 39.0 Ω

Voice Coil @ 1kHz: 0.93 mHConstructive Characteristics Magnet: Ferrite

Voice Coil Winding: Copper

Voice Coil Former: Kapton

Cone: Paper

Surround: Integrated Paper

Dust Dome: Solid Paper

Basket: Pressed Sheet SteelElectrical Characteristics Nominal Impedance: 8 Ω

Rated Power: 50 W

Musical Power: 100 W

Sensitivity@1W,1m: 96.3 dB
