#4013104

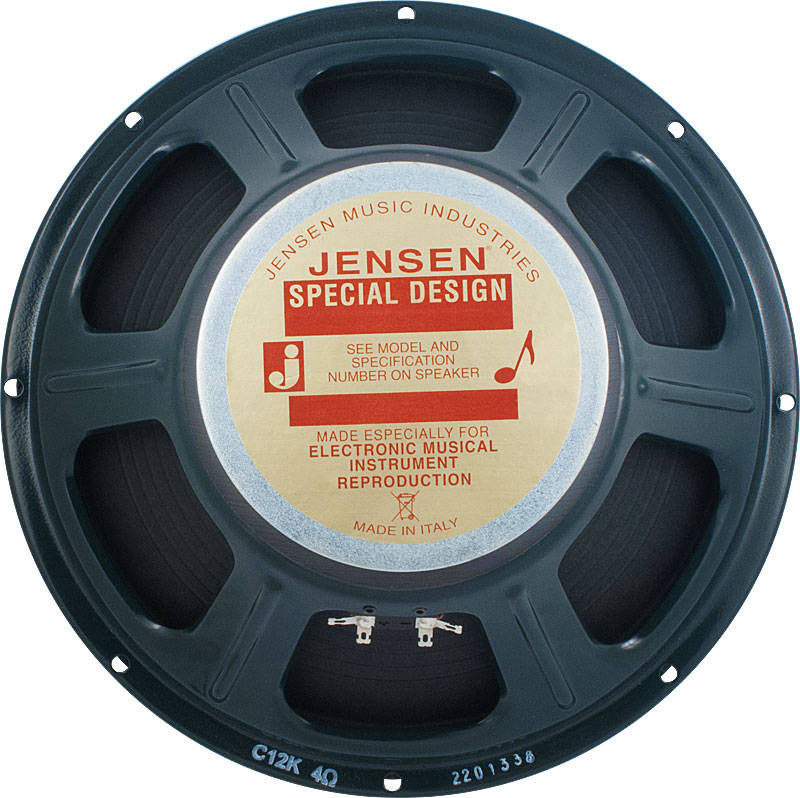

Jensen C12K 100W 12" Replacement Speaker 8 Ohm

A real workhorse, heavy on the mids with a solid, straightforward tone. When presented with overdrive distortion it powers through with lows that are bold and heavy.
$131.95
Shipping calculated at checkout.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

WEIGHT:10lb

Overall Diameter:12 in

Voice Coil Diameter:2 in

Magnet Weight:50 oz

Overall Weight:9.48 lbs

Flux Density:1.10 TThiele-Small ParametersVoice Coil DC Resistance:6.53 Ω

Resonance Frequency:106.2 Hz

Mechanical Q Factor:12.57

Electrical Q Factor:0.67

Total Q Factor:0.67

Mechanical Moving Mass:31.9 g

Mechanical Compliance:71 µm/N

Force Factor:14 Wb/m

Acoustic Volume:24.1 lt.

Linear Displacement:1.0 mm

Reference Efficiency:4.43 %

Diaphragm Area:490.9 cm2

Electrical Resistance:210 Ω

Voice Coil @ 1kHz:0.84 mHConstructive CharacteristicsMagnet:Ferrite

Voice Coil Winding:Copper

Voice Coil Former:Kapton

Cone:Paper

Surround:Integrated Paper

Dust Dome:Non-treated Cloth

Basket:Pressed Sheet SteelElectrical CharacteristicsNominal Impedance:8 Ω

Rated Power:100 W

Musical Power:200 W

Sensitivity@1W,1m:99.0 dB
