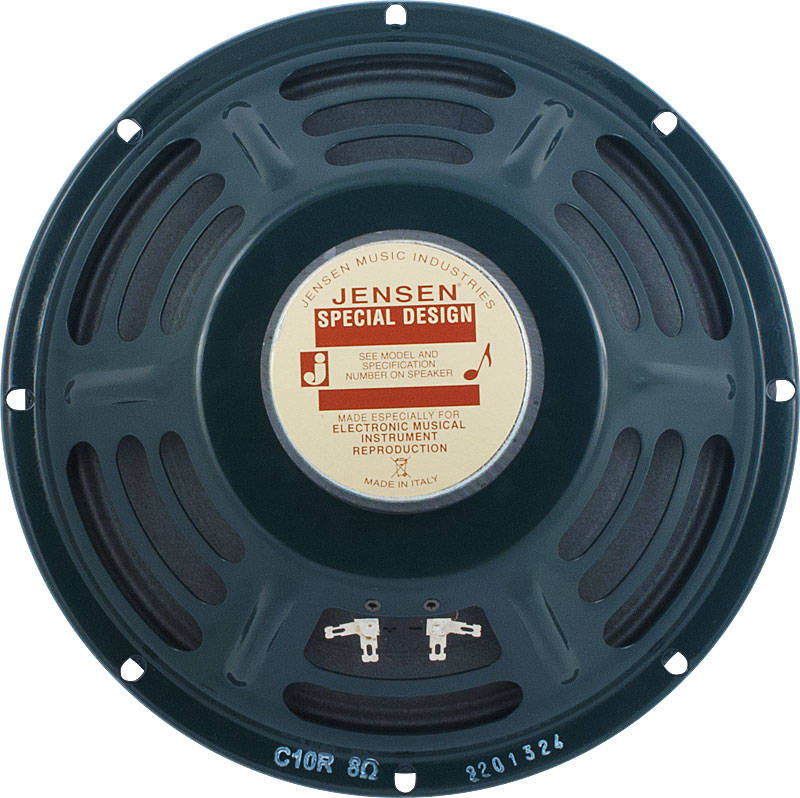

Jensen C10R 25W 10'' Replacement Speaker 8 OHM

The 25 Watt C10R is a ceramic magnet speaker. Colorful bell-like chime which transitions into a gritty response when presented with overdrive distortion.
$69.99
Shipping calculated at checkout.
Only 1 left in stock. Order soon.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

WEIGHT:4lb

Overall Diameter:10 in

Voice Coil Diameter:1 in

Magnet Weight:10 oz

Overall Weight:2.65 lbs

Flux Density: 1 TThiele-Small ParametersVoice Coil DC Resistance:6.7 Ω

Resonance Frequency:96.6 Hz

Mechanical Q Factor:9

Electrical Q Factor:1.66

Total Q Factor:1.47

Mechanical Moving Mass:17.6 g

Mechanical Compliance:154 µm/N

Force Factor:6.42 Wb/m

Acoustic Volume:23.8 lt.

Max Linear Displacement:0.8 mm

Reference Efficiency:1.50 %

Diaphragm Area:330.1 cm2

Electrical Resistance:42 Ω

Voice Coil Inductance:0.53 mHConstructive CharacteristicsMagnet:Ferrite

Voice Coil Winding:Copper

Voice Coil Former:Kapton

Cone:Paper

Surround:Integrated Paper

Dust Dome:Solid Paper

Basket:Pressed Sheet SteelElectrical CharacteristicsNominal Impedance:8 Ω

Rated Power:25 W

Musical Power:50 W

Sensitivity@1W,1m:93.6 dB
