#4014100

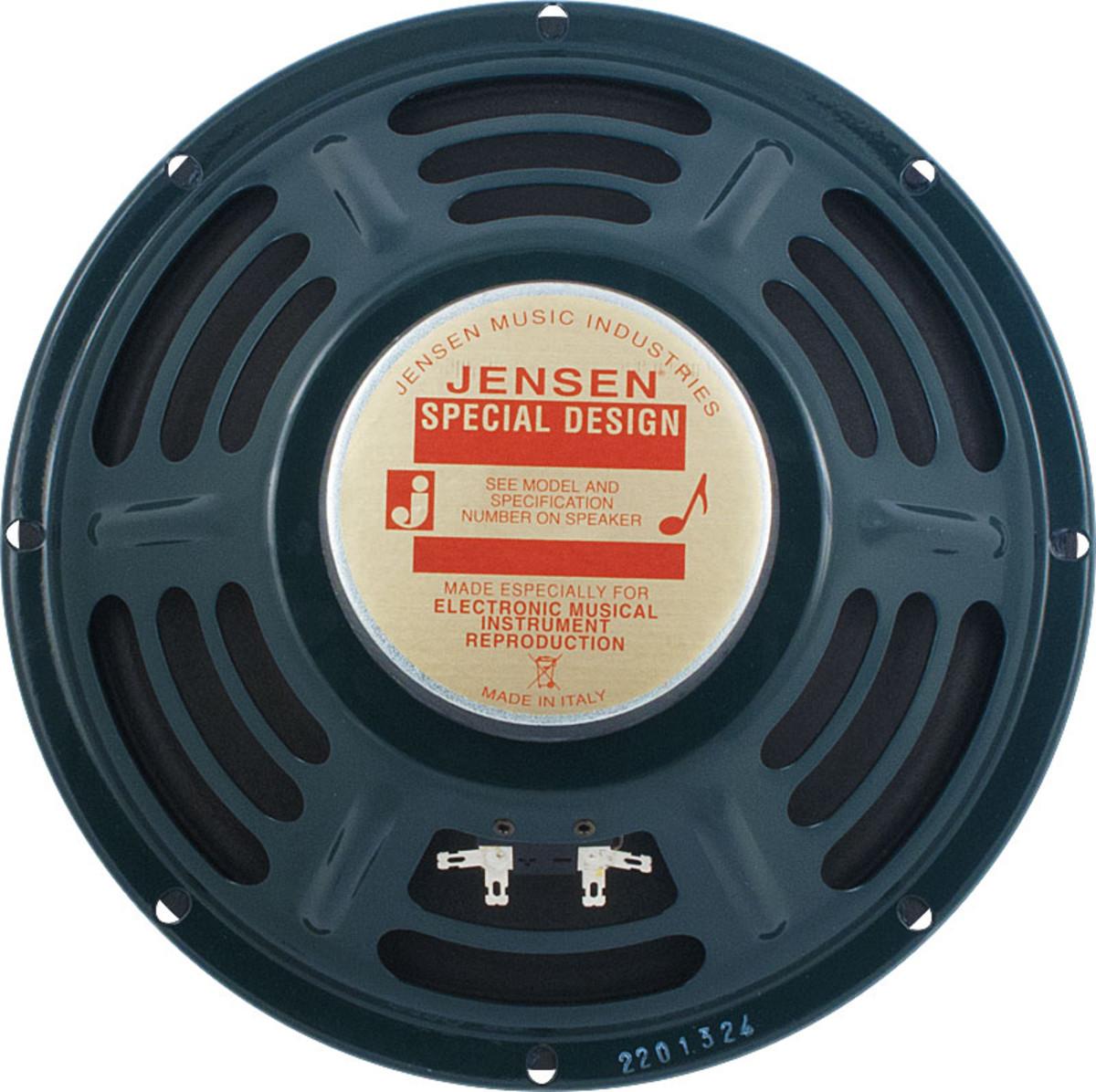

Jensen C10Q 35W 10'' Replacement Speaker 8 OHM

The 35 Watt C10Q is slightly stronger than the C10R. This helps the speaker produce a smoother break up when driven. Straightforward tone with mid-frequency bite. When presented with overdrive distortion, it can sound edgy.
$75.95
Shipping calculated at checkout.
Only 4 left in stock. Order soon.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

WEIGHT:4lb

Overall Diameter:10 in

Voice Coil Diameter:1.25 in

Magnet Weight:15 oz

Overall Weight:3.65 lbs

Flux Density:0.92 TThiele-Small ParametersVoice Coil DC Resistance:6.0 Ω

Resonance Frequency:96.0 Hz

Mechanical Q Factor:11.57

Electrical Q Factor:1.34

Total Q Factor:1.20

Mechanical Moving Mass:16.6 g

Mechanical Compliance:168 µm/N

Force Factor:6.68 Wb/m

Acoustic Volume:25.7 lt.

Max Linear Displacement:1.5 mm

Reference Efficiency:1.61 %

Diaphragm Area:330.0 cm2

Electrical Resistance:52 Ω

Voice Coil Inductance @ 1kHz:0.62 mHConstructive CharacteristicsMagnet:Ferrite

Voice Coil Winding:Copper

Voice Coil Former:Epotex

Cone:Paper

Surround:Integrated Paper

Dust Dome:Solid Paper

Basket:Pressed Sheet SteelElectrical CharacteristicsNominal Impedance: 8Ω

Rated Power:35 W

Musical Power:70 W

Sensitivity@1W,1m:95.2 dB
