#2195006
58 in stock

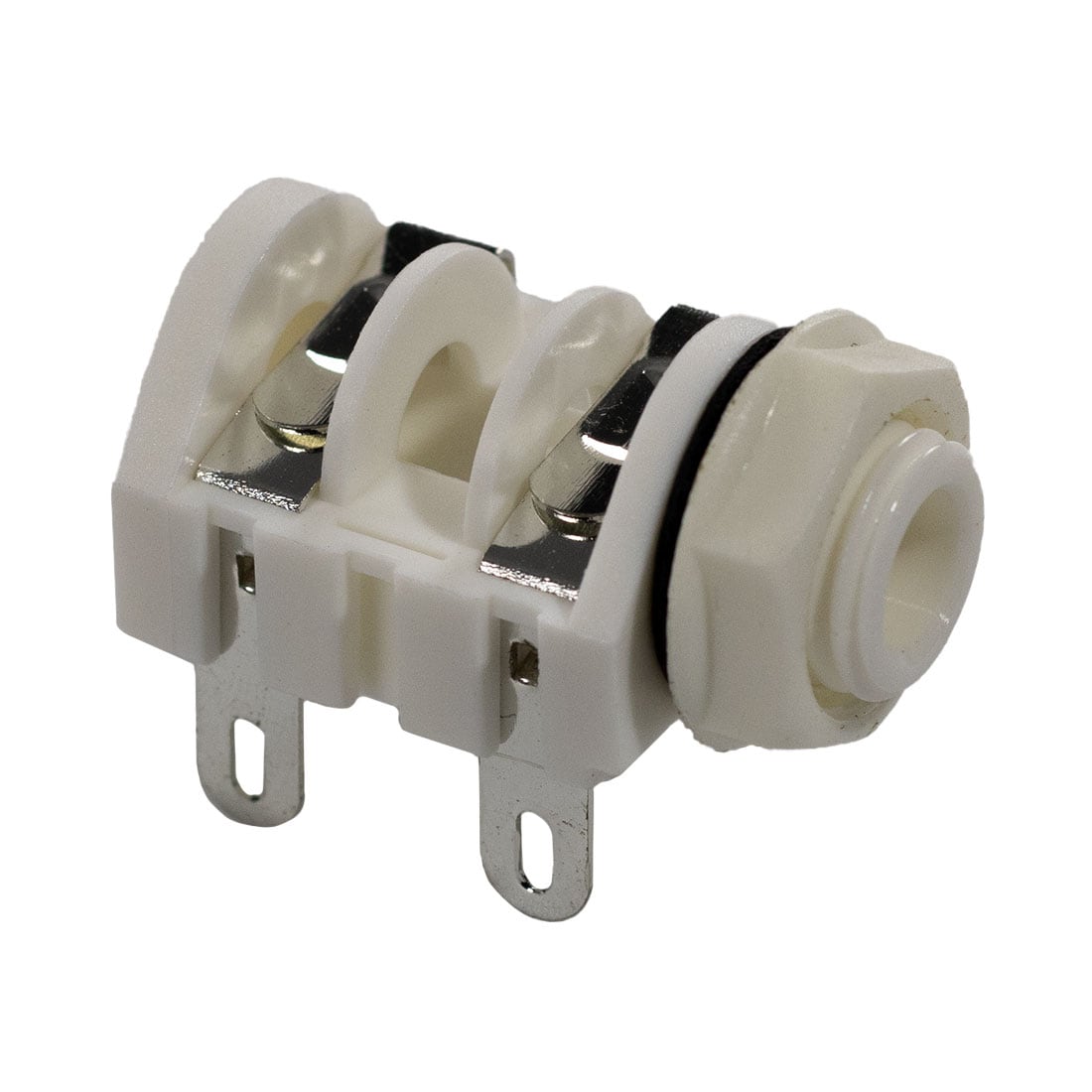

4-Lug 1/4" Jack with Plastic Nut (White)

J6 White Jack 4-Lug Input.  Replacement part for Hiwatt amplifiers.
$2.95
Shipping calculated at checkout.

Real support from real techs

$5 U.S. shipping over $99

Trusted by guitarists for 25+ years

Built By Players

SPECS

WEIGHT:lb


Electrical: Rated Current: 5A
Rated Voltage: 2000V DC Min.
Dielectric Withstand: >1500VAC/1 min.
Insulation Resistance: >106 M @ 500VDC
Mechanical: Life: >10,000 cycles
Plug Insertion force: < 20 N
Plug Removal force: > 10 N Solderability: 95% coverage (min.)
Test Temperature: 230deg C +/- 10deg C
Test Time: 3 sec +/- 0.5 sec.
Nominal Panel Thickness:
Plastic Nut – 1.5mm / 4.6mm max.
Material: Housing: Nylon PA 6, UL94 HB
Contacts: Nickel-Silver Alloy, Tin Plated finish
Operating Temp: -10degC to +70degC
4-Lug 1/4" Jack with Plastic Nut (White)
4-Lug 1/4" Jack with Plastic Nut (White) $2.95
