#1000055

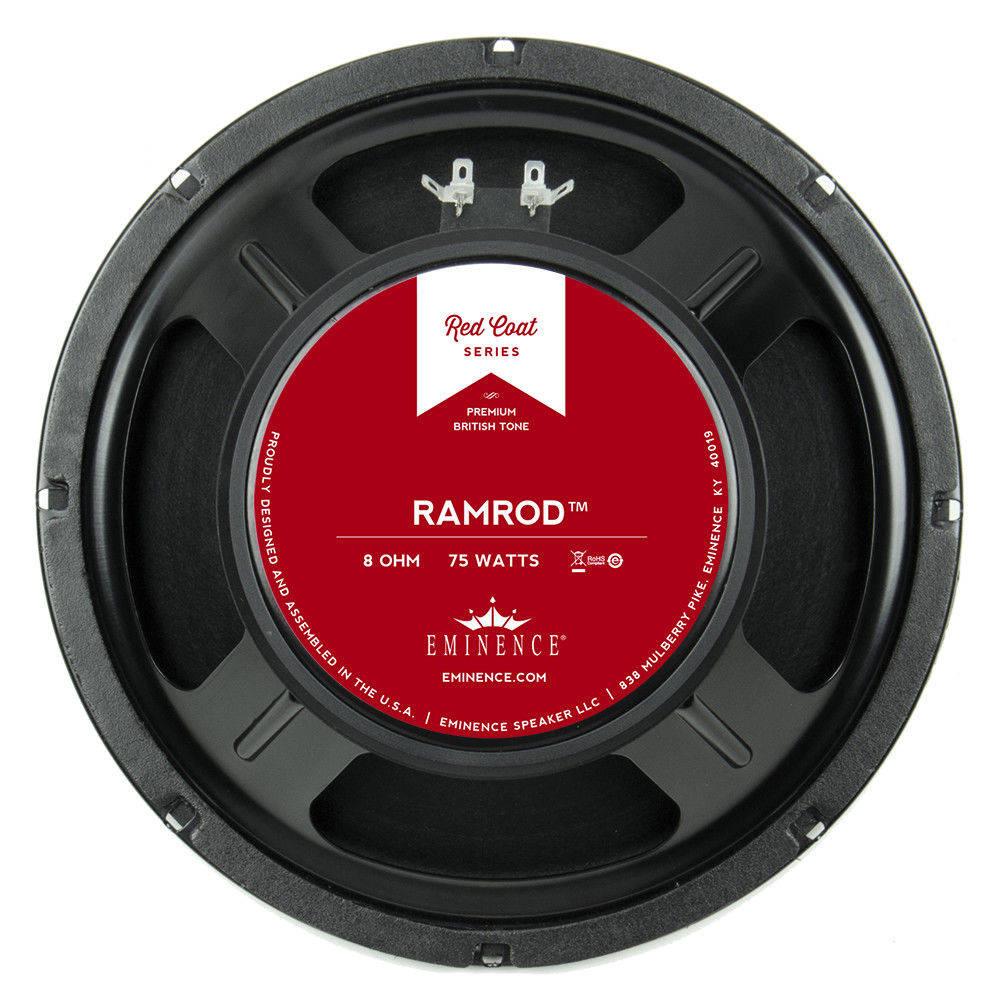

Eminence Ramrod 10'' Speaker 8 Ohm 75W

The Red Coat Series Ramrod is a meaty 10 speaker with British influence, setting the standard for 10 speakers. Very loud, gutsy, and meaty tone with singing highs and nice, clear overtones.
$114.99
Shipping calculated at checkout.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

WEIGHT:8.3lb

Nominal Basket Diameter:10", 254mm

Nominal Impedance:8 ohms

Power Rating:75W

Music Program:N/A

Resonance:101Hz

Usable Frequency Range:80Hz - 5kHz

Sensitivity:100dB

Magnet Weight:30 oz.

Gap Height:0.31", 7.92mm

Voice Coil Diameter:1.5", 38.1mmMOUNTING INFORMATIONRecommended Enclosure Volume

Sealed:Acceptable

Vented:Acceptable

Driver Volume Displaced:66.9 cu.in. / 1.1 liters

Overall Diameter:10.11", 256.8mm

Baffle Hole Diameter:9.13", 231.8mm

Front Sealing Gasket:Fitted as standard

Rear Sealing Gasket:Fitted as standard

Mounting Holes Diameter:0.23", 5.7mm

Mounting Holes B.C.D.:9.6", 243.8mm

Depth:4.3", 109mm

Net Weight:5.4 lbs, 2.5 kg

Shipping Weight:8.3 lbs, 3.8 kgs
