#1000128

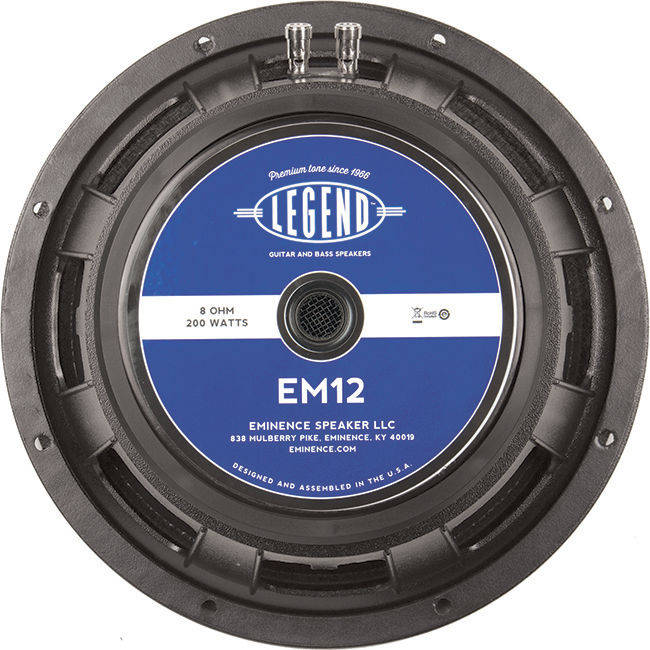

Eminence Legend EM12 12" Speaker 8 Ohm 200W

A high power, 12 inch guitar speaker featuring ultra-clean tone with big, round, punchy lows and warm, smooth mids and highs. A more neutral tone so you can hear more of your amp and guitar.
$189.99
Shipping calculated at checkout.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

WEIGHT:18.5lb

Nominal Basket Diameter:12", 305mm

Nominal Impedance:8 ohms

Power Rating:200W

Music Program:N/A

Resonance:49Hz

Usable Frequency Range:60Hz - 4.9kHz

Sensitivity:101.1dB

Magnet Weight:80 oz.

Gap Height:0.375", 9.5mm

Voice Coil Diameter;2.5", 64mmMOUNTING INFORMATIONRecommended Enclosure Volume

Sealed:Acceptable

Vented:Acceptable

Driver Volume Displaced;155.5 cu.in. / 2.55 liters

Overall Diameter:12.38", 314.5mm

Baffle Hole Diameter:11.07", 281.2mm

Front Sealing Gasket:Yes

Rear Sealing Gasket:Yes

Mounting Holes Diameter:0.26", 6.6mm

Mounting Holes B.C.D.:11.57", 293.9mm

Depth:5.38", 136.5mm

Net Weight:16.3 lbs, 7.39 kg

Shipping Weight:18 lbs, 8.16 kgs
