#0039003

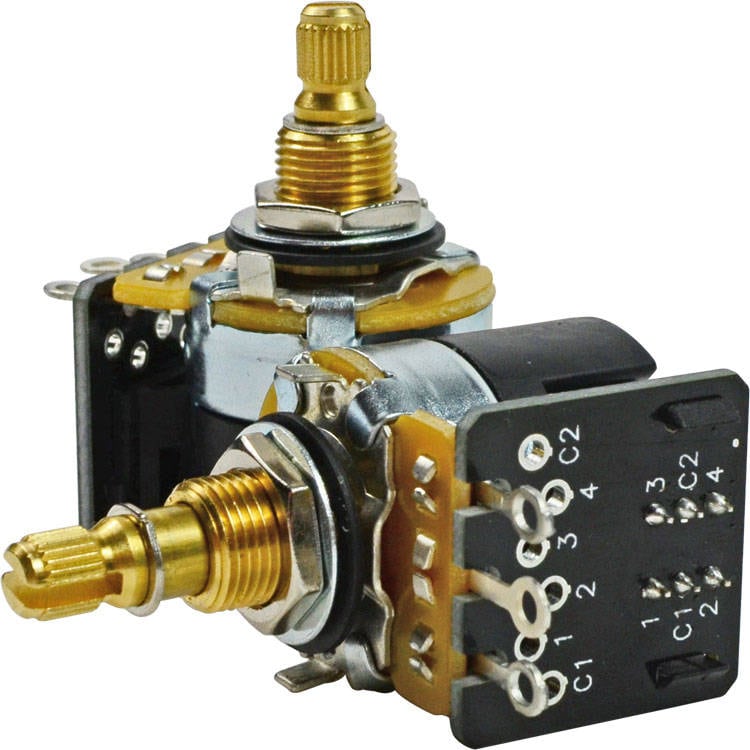

CTS 250K DPDT Push-Pull Potentiometer

This is the best push-pull potentiometer on the market. These aren't your standard off the shelf CTS pots either. We had them custom made to our specification to have the smoothest taper possible and the tightest tolerance available.  The switch contacts are side-mounted which makes them ready to drop into most guitars without the need for deeper routing.  There are a number of wiring options with these pots that can give any guitarist total control over their sound.

- Custom taper for a smoother volume or tone control (15% Audio)
- 10%+/- tolerance
- Solid brass split shaft and bushing (3/8'' diameter x 3/8'' length)
$8.00
Shipping calculated at checkout.
$5 U.S. shipping over $99
Real support from real techs
Trusted by guitarists for 25+ years
SPECS

WEIGHT:.065lb
DOCUMENTATION

Installation Instructions

Overall rating: 5.0 / 5 from 1 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

39003

"These new CTS push pull pots are the bees knees! Tip: When soldering to the eyelet holes, pre-tin the holes and the wire with solder. Then just heat the solder in the eyelet hole and put the wire in, then let it cool. Much easier than trying to apply solder to the wire while it's in the eyelet. Took me a few times before I figured that out."

— anonymous (5/5)
