#1000108

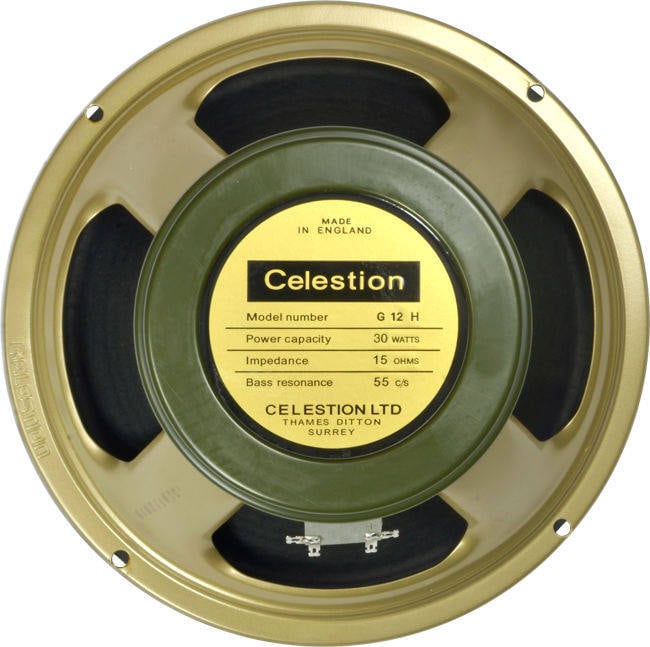

Celestion G12H 55hz Heritage 12" Speaker 16 Ohm 30W

If the G12M was to become a classic, it was the G12H with its heavier magnet that really characterised the sound of rock guitar for the new breed of player that emerged in the 1960s. Listen to any Hendrix recording and the chances are you’re hearing the unmistakably creamy tones of the G12H. Originally available in two versions – low resonance for bassists and high resonance for guitarists – both were in fact embraced by guitar players for their unique tonal characteristics.

According to Celestion: You can consider 15 ohm and 16 ohm speakers to be of the same impedance.
$198.99
Shipping calculated at checkout.
Only 4 left in stock. Order soon.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

WEIGHT:8lb

General SpecificationsNominal diameter:12", 305mm

Power Rating:30W

Nominal impedance:8Ω and 15Ω

Sensitivity:100dB

Chassis type:Pressed steel

Voice coil diameter:1.75", 44.5mm

Voice coil material:Round copper

Magnet type:Ceramic

Magnet weight:50oz, 1.42kg

Frequency range:55-5000Hz

Resonance frequency, Fs:55Hz

DC resistance, Re:6.53Ω & 12.11ΩMounting InformationDiameter:12.2", 309mm

Overall depth:5.3", 135mm

Magnet structure diameter:6.6", 168mm

Cut-out diameter:11.1", 283mm

Mounting slot dimensions:0.31", 7.9mm Ø

Number of mounting slots:4

Mounting slot PCD:11.7", 297mm

Unit weight:10.4lb, 4.7kg
