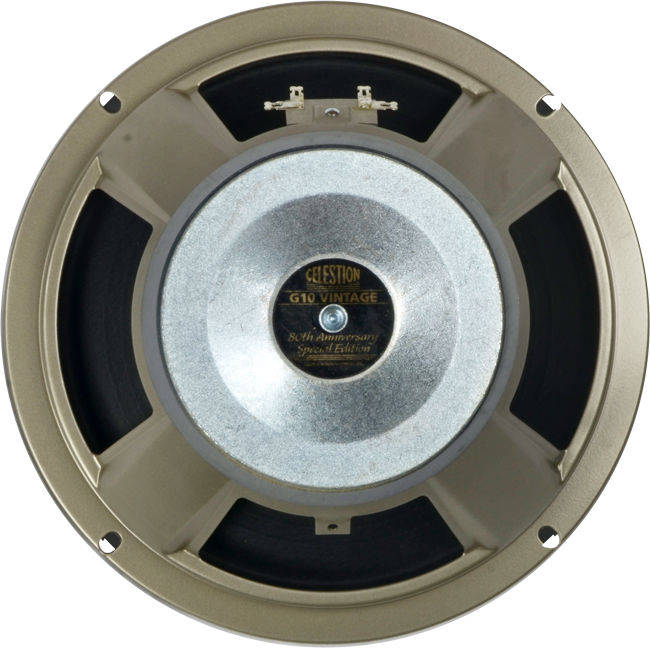

Celestion G10 Vintage 10'' Speaker 8 Ohm 60W

A worthy successor to the Vintage 10, the G10 Vintage is a 10 speaker with bags of attitude. Using powerful ceramic magnets and the same voice coil design as the Vintage 30, the G10 packs an impressive punch with its 60W power handling.

With the fast response of a 10 but with the strong and creamy vocal tones of a 12, the G10 is the ideal choice to add depth to hollow-sounding amps, or for players who want to get humbucker-type girth from single-coils. Can be used singly to add vocal warmth to small valve combos, or in quartets for a weightier but still lively attack.
$99.00
Shipping calculated at checkout.
Only 3 left in stock. Order soon.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

WEIGHT:8lb

General SpecificationsNominal diameter:10", 254mm

Power Rating:60W

Nominal impedance:8Ω and 16Ω

Sensitivity:97dB

Chassis type:Pressed Steel

Voice coil diameter:1.75", 44.5mm

Voice coil material:Round copper

Magnet type:Ceramic

Magnet weight:31oz, 0.88kg

Frequency range:100-5500Hz

Resonance frequency, Fs:115Hz

DC resistance, Re:7.47Ω & 12.33ΩMounting InformationDiameter:10.1", 256mm

Overall depth:4.1", 104mm

Magnet structure diameter:5.3", 134mm

Cut-out diameter:9.0", 229mm

Mounting slot dimensions:0.2 x 0.3", 6 x 8mm

Number of mounting slots:4

Mounting slot PCD:9.6", 245mm

Unit weight:5.3lb, 2.4kg
