Ampeg SVT Output Transformer Lay Down Version *SPECIAL ORDER*

• Ampeg SVT Output Transformer *SPECIAL ORDER ONLY*
• **LAY DOWN VERSION**
• This unit can be made in either configuration

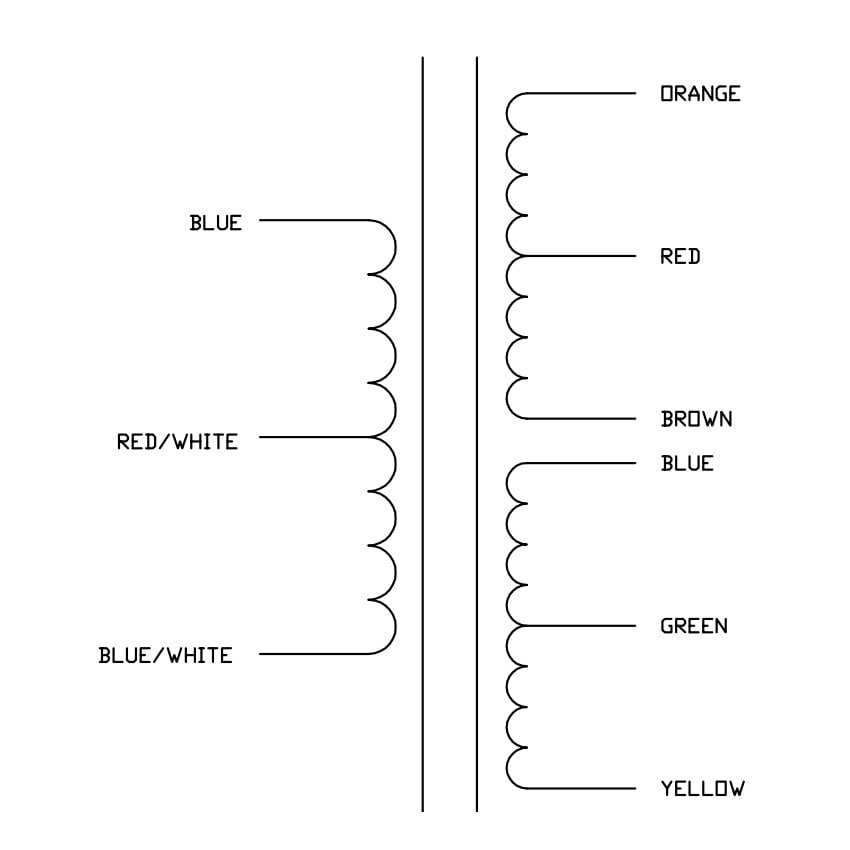

• Primary: 1750 Ohms, w/ center tap
• Red / White - Center Tap
• Blue - Plate Connections
• Blue / White - Plate Connections

• Secondary 1: Yellow - 0, Green - Low Tap, Blue - High Tap
• Secondary 2: Brown - 0, Red - Low Tap, Orange - High Tap

• Secondaries are symmetrical and can be hooked in parallel

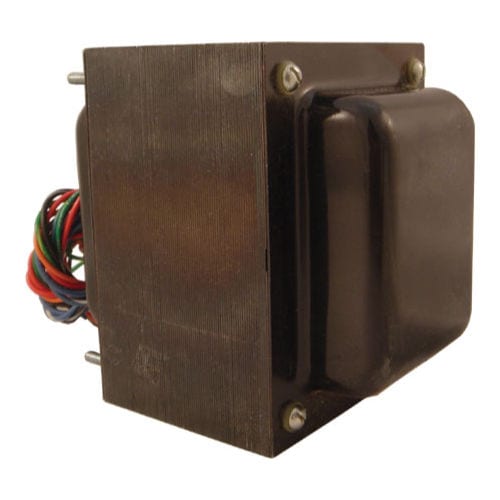

Note: Image is just a representation and is not the actual transformer since the transformer can be in a lay-down or stand-up format
