#7021400

Ampeg B-15 Output Transformer *SPECIAL ORDER*

THIS IS A NON-STOCK ITEM, LEAD TIME = 45 DAYS

Primary Impedance: 5500 ohms
Please specify 4 and 8 ohm secondary or 8 and 16 ohm secondary when you submit your order
$368.95
Shipping calculated at checkout.
$5 U.S. shipping over $99
Real support from real techs
Trusted by guitarists for 25+ years
SPECS

WEIGHT:7.781lb

*SPECIAL ORDER ONLY*

**STANDUP VERSION**

  • This unit can be made in either configuration
  • Primary:1750 ohms, w/ center tap
  • Red / White - Center TapBlue - Plate Connections
  • Blue / White - Plate Connections

  • Secondary 1:Yellow - 0, Green - Low Tap, Blue - High Tap
  • Secondary 2: Brown - 0, Red - Low Tap, Orange - High Tap

  • Secondaries are symmetrical and can be hooked in parallel

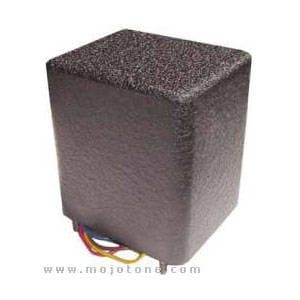

  • Note: Image is just a representation and is not the actual transformer since the transformer can be in a lay-down or stand-up format
