#S358Q373-N-WH

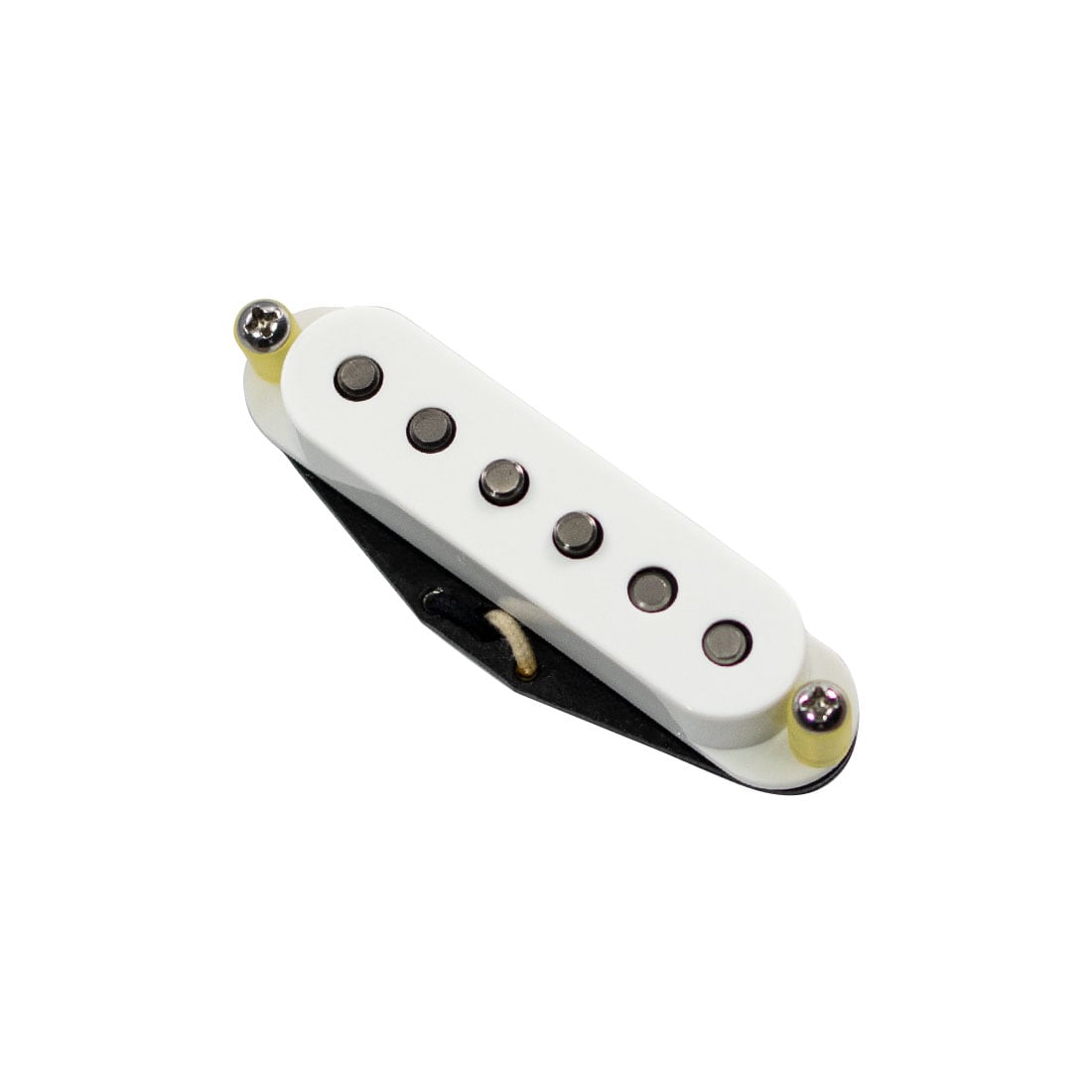

'58 Quiet Coil Strat® Pickup

Our '58 Quiet Coils™ beautifully capture the warmth and clarity of a ‘58 Strat pickup with that extra fat low midrange associated with many of the best sounding 1958 Strat pickups. With the HOT Quiet Coil™ in the bridge position, you get better sustain and a more balanced output between positions for those who do not like the weaker vintage Strat pickups in the bridge position. These are carefully balanced in output from the neck to the middle to the bridge, and completely hum-canceling in ALL positions!

If you have any questions about any of our Quiet Coil™ pickups, please call our Sales team at 1-800-927-7291.

No batteries, stacked coils, or anything else associated with other hum-canceling pickups were used in our design. The result is simply the most pure and authentic Strat tone possible, with absolutely no loss of true single coil tone.

NOTE: With all Mojotone Quiet Coil™ pickups, you never have to worry about string spacing and fretboard radius issues, or the magnets pulling the strings out of tune, and you can bend the strings heavily without ever losing focus or sustain. 500k potentiometers are recommended.

Quiet Coil™ Design Features:

  • Consistent scatterwound coils for that handwound tone, sensitivity, and clarity.
  • Vintage formulated Alnico magnet cores with lower Gauss levels like an aged vintage Strat pickup.
  • Vintage cloth covered leads for easy push-back soldering.
  • Matched resonant peak frequency, inductance, and resistance of a vintage single coil.
  • Vintage staggered polepieces for a traditional Strat pickup look.

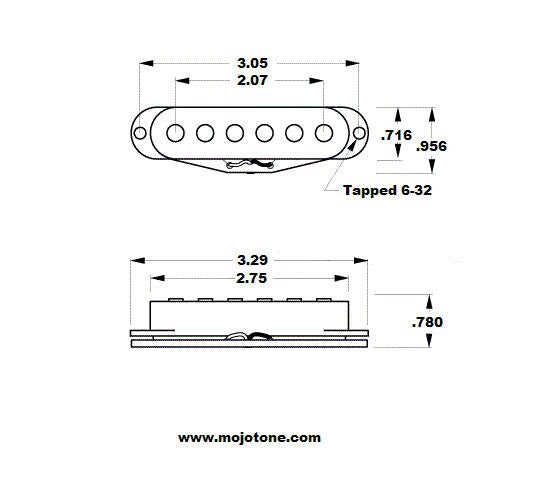

  • No routing modifications are required to fit shallow vintage routs like the taller stacked hum-cancelling designs.
  • Less than 10 parts are used to build the Quiet Coils™. Like a vintage Strat pickup, they are SIMPLE!


All of our pickups are proudly built in
Burgaw, NC!

Click here for current lead times


Regular price $99.95
Shipping calculated at checkout.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

Weight: .8 lb

Neck & Middle: 5.9K
Magnet: Alnico 5

  • Output: 4
  • Bass: 3.5
  • Mids: 4
  • Treble: 7

Bridge: 11.6K
Magnet: Alnico 5

  • Output: 5
  • Bass: 4.5
  • Mids: 6
  • Treble: 5

DOCUMENTATION

See our wiring diagrams here!
