'58 Quiet Coil HSS Strat® Prewired Pickguard
#S357392-BK-WP1

'58 Quiet Coil HSS Strat® Prewired Pickguard

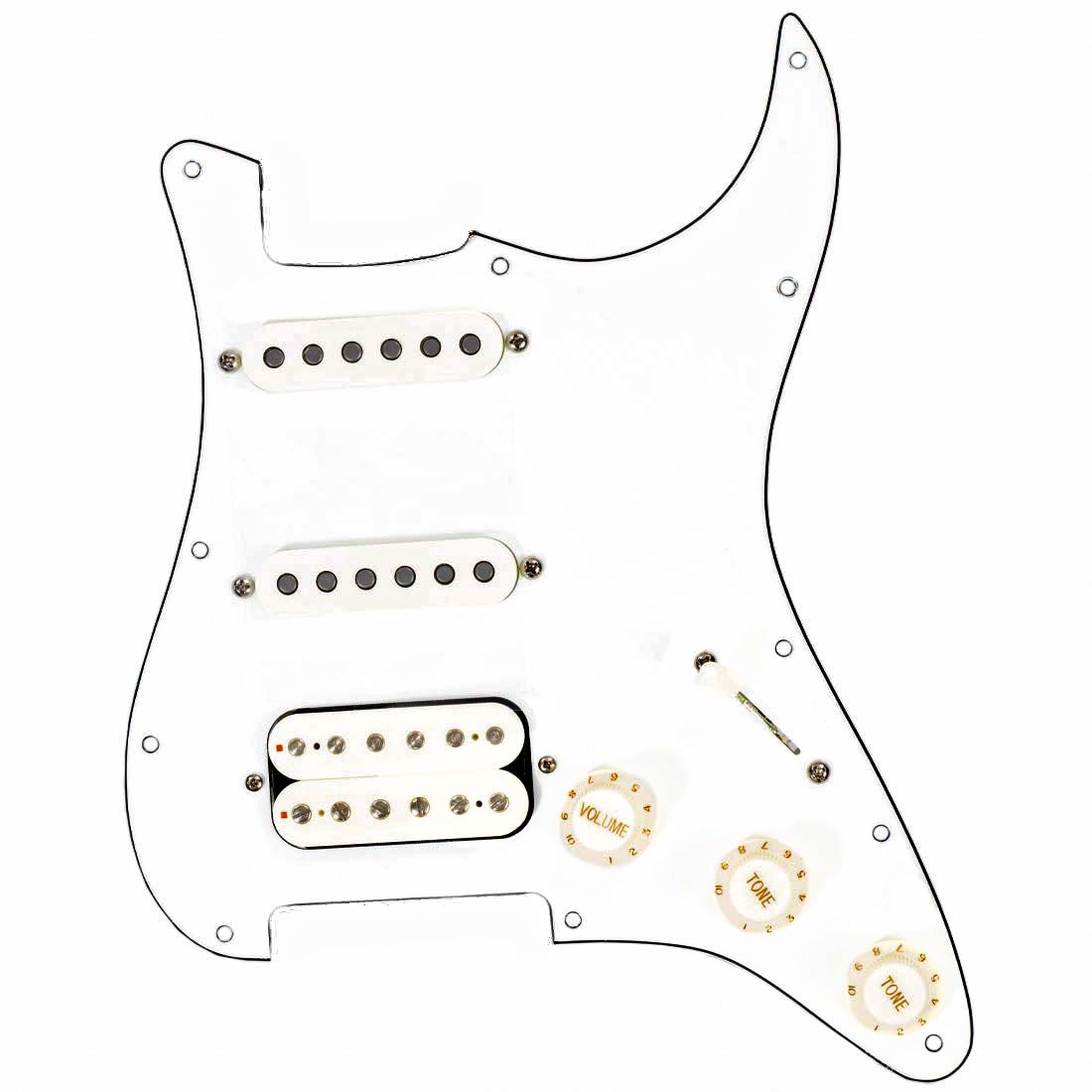

Mojotone HSS pickguards are completely pre-wired to perfection with no soldering required. Each pickguard comes loaded with our most popular noiseless Strat pickups, the '58 Quiet Coils in the neck and middle positions, and our exclusive F-Spaced '58 humbucker in the bridge position.

The '58 Quiet Coils offer noise free vintage Strat tone without ever compromising true single coil clarity and feel like other hum-cancelling designs. With our custom vintage output '58 humbucker in the bridge position, you get creamy P.A.F. tones that will cut through the mix with authority and unparalleled articulation. Add in the ability to switch between standard and blender wiring, and you have the most versatile HSS Strat on the planet!

FEATURES:

  • Solderless Ready to drop in and play with absolutely no soldering required!
  • Blender Wiring Blend in your neck or bridge pickup as much as you want in positions 1,2,4, and 5.
  • Noiseless Our '58 Quiet Coil Strat pickups and '58 humbucker eliminate unwanted 60-cycle hum!

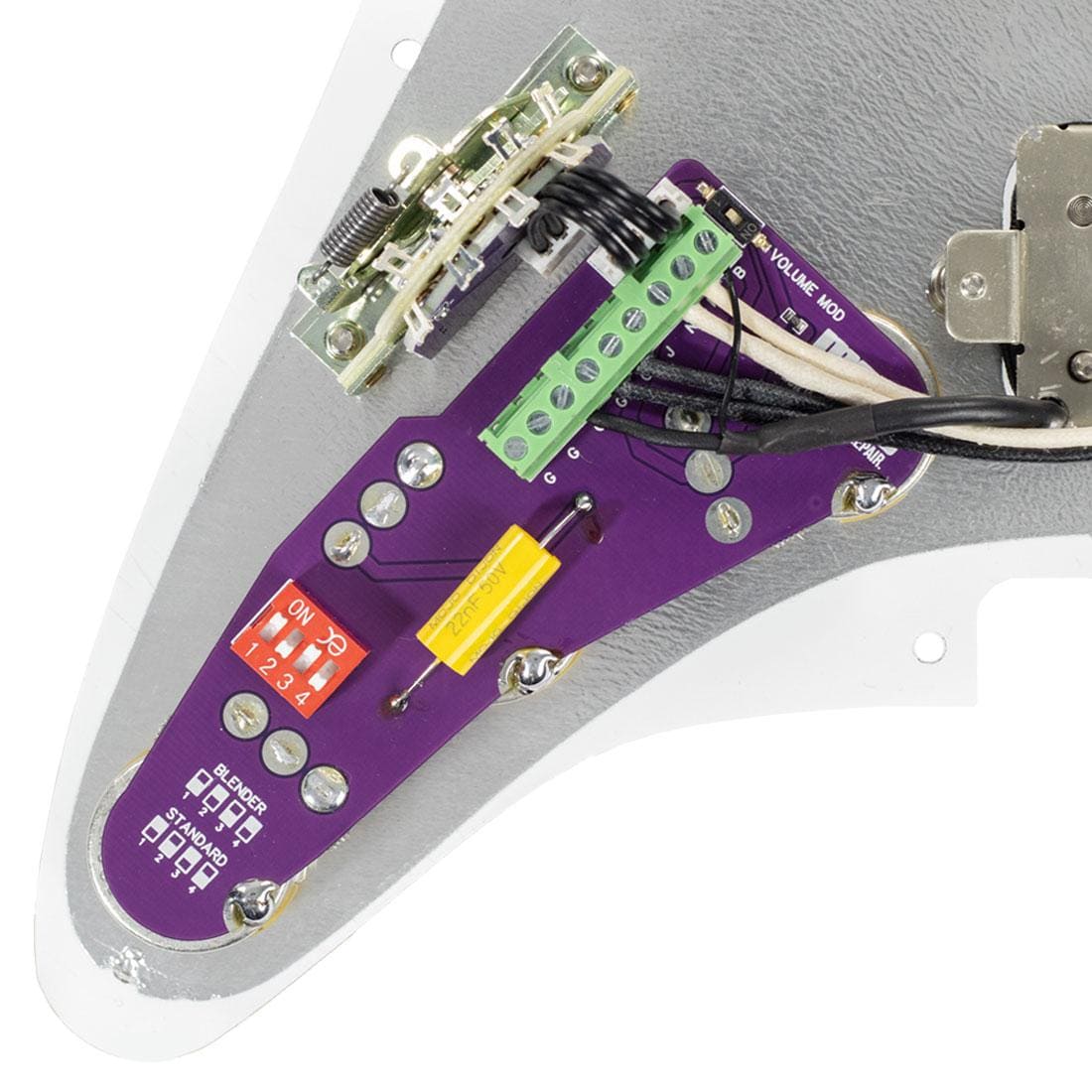

  • Treble Bleed Our optional (on/off) treble bleed cap allows you to roll your volume control back without ever losing high end clarity and chime.
  • Quality Components Vintage taper CTS pots, Dijon tone cap, CRL 5-way switch, and Switchcraft jack.


CONTROL FUNCTIONS:

  • Master Volume: Top Knob
  • Master Tone: Middle Knob
  • Blender Control: Bottom Knob


Blender on 10

  • Position 1: Bridge
  • Position 2: Bridge and Middle
  • Position 3: Middle
  • Position 4: Middle and Neck
  • Position 5: Neck


Blender on 0

  • Position 1: Bridge (with Neck blended in)
  • Position 2: Bridge and Middle (with Neck blended in)
  • Position 3: Middle
  • Position 4: Middle and Neck (with Bridge blended in)
  • Position 5: Neck (with Bridge blended in)



All of our pickups and wiring harnesses are proudly built in Burgaw, NC!

Click here for current lead times


Regular price $359.95
Shipping calculated at checkout.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

Weight: 1.6 lb

Neck & Middle: 5.9K / Hum-Cancelling

  • Output: 2
  • Bass: 3.5
  • Mids: 4
  • Treble: 7

Bridge: 8.3K / Alnico 4 / F-Spaced

  • Output: 4
  • Bass: 5.5
  • Mids: 6.5
  • Treble: 4.5
