#9000027

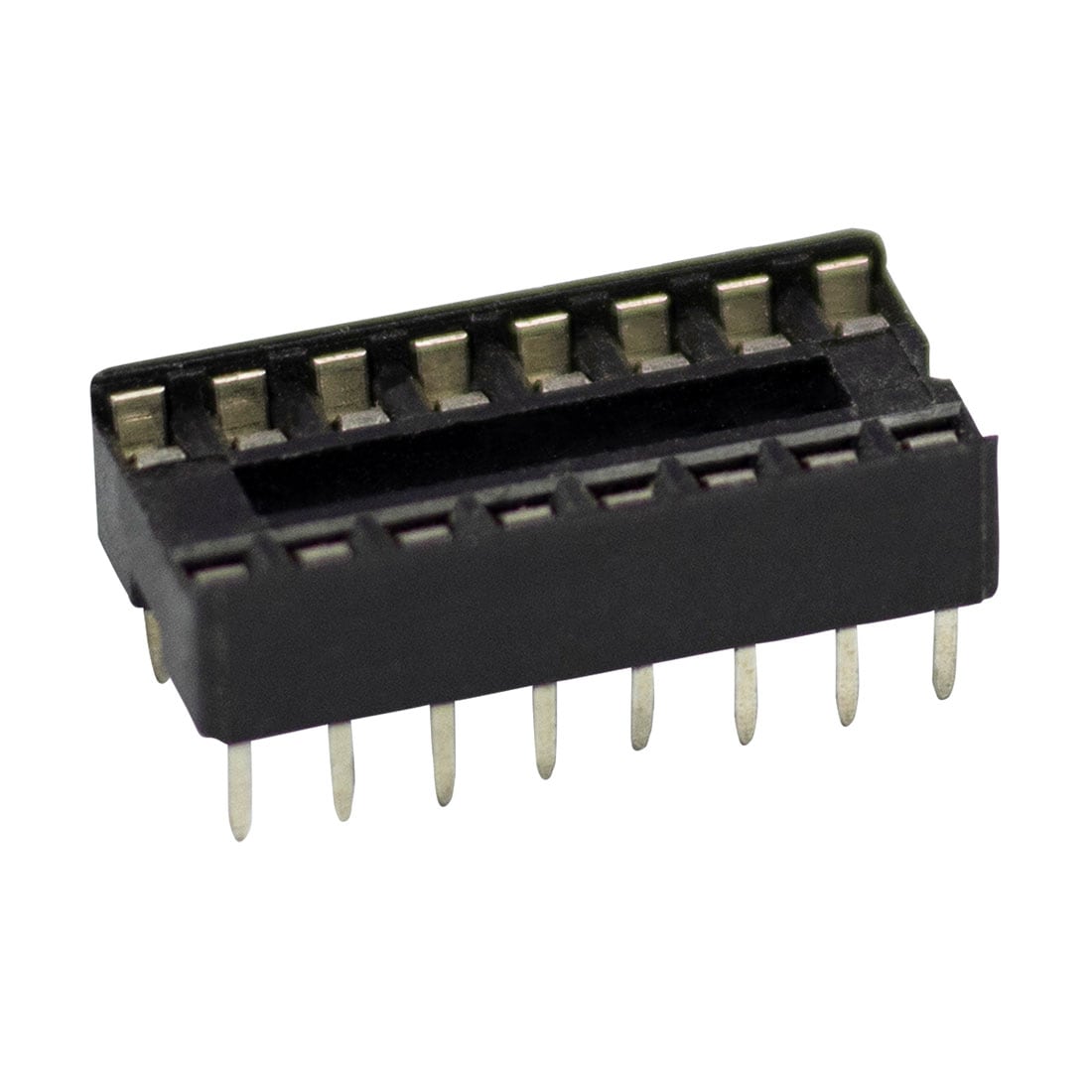

16 Pin DIP IC Socket

Single base 16-pin IC chip socket. Product is a low-profile DIP socket that have high reliability contacts with a two-point contacting structure. It is ideal for PCB through hole vertical mounting.
$0.75
Shipping calculated at checkout.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

WEIGHT:.05lb

GeneralContact typeSAF

#of contacts16

#of contacts (per row)8

#of rows2

Product StyleDIP, Stamped and Formed

Frame Type StyleOpen

Gender (Contact)Socket

Insulator TypeStandardDimensionalLength (Tail)3.2 mm (0.126 in.)

Dim D (in)0.3 in.

Dim D (mm)7.62 mm

Spacing (Contact)2.54 mm (0.1 in.) Pitch

Dim A (in)0.8 in.

Dim A (mm)20.32 mm

Dim B (in)0.7 in.

Dim B (mm)17.78 mm

Dim C (in)0.4 in.

Dim C (mm)10.16 mm

Spacing (Row to row)7.62 mm (0.3 in.)ElectricalWithstanding Voltage1000V AC RMS min.

Current rating1 amps max.

Resistance (Contact)30 M ohms max. at 6V DC

Resistance (Insulation)1000 M ohms min. at 500V DC

Voltage rating200V ACMechanicalDurability (Mating cycles)25 Cycles

Insertion force340.2g/Contact max.

Withdrawal Force14.5g/Contact min.PhysicalColor (Housing)Black

Material (Contact)Copper Alloy

Plating (Inner clip)100µ" min. Pure Tin over 50µ" Nickel

Material (Inner clip)Copper Alloy

Material (Insulator)Polyester, UL 94V-0

Temperature (continuous)-55°C to 105°C

Approvals / CertificationsUL/CSA PendingMountingMounting styleThrough HoleOther FeaturesPackaging (Type)Tube
