#4013100

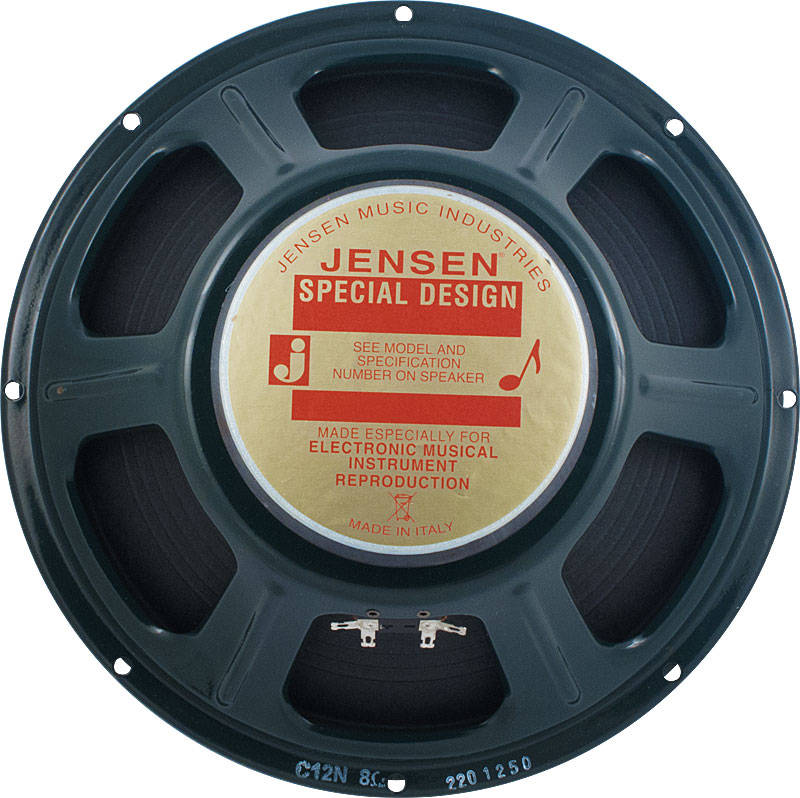

Jensen C12N 50W 12'' Replacement Speaker 8 OHM

The C12N has a smooth, straightforward and full-bodied tone with high frequency chime. Smooth and straightforward, full bodied tone with high frequency chime. It responds to overdrive distortion with powerful mid bite.
$124.95
Shipping calculated at checkout.
Only 4 left in stock. Order soon.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

WEIGHT:8lb

Overall Diameter:12 in

Voice Coil Diameter:1.5 in

Magnet Weight:28.50 oz

Overall Weight:7.27 lbs

Flux Density:1.15 TThiele-Small ParametersVoice Coil DC Resistance:6.05 Ω

Resonance Frequency:113.0 Hz

Mechanical Q Factor:7.52

Electrical Q Factor:1.05

Total Q Factor:1.02

Mechanical Moving Mass:29.9 g

Mechanical Compliance:66 µm/N

Force Factor:10.46 Wb/m

Acoustic Volume:22.6 lt.

Linear Displacement:1.0 mm

Reference Efficiency:3.48 %

Diaphragm Area:490.9 cm2

Electrical Resistance:42.5 Ω

Voice Coil @ 1kHz:0.9 mHConstructive CharacteristicsMagnet:Ferrite

Voice Coil Winding:Copper

Voice Coil Former:Kapton

Cone:Paper

Surround:Integrated Paper

Dust Dome:Solid Paper

Basket:Pressed Sheet SteelElectrical CharacteristicsNominal Impedance:8 Ω

Rated Power:50 W

Musical Power:100 W

Sensitivity@1W,1m:97.7 dB
