#G1BVC170

Blackface Vibro-Champ® Style Guitar Tube Amp Kit

After the original Champ amplifiers received such acclaim, Fender introduced the Vibro-Champ in an effort to build on the success of the simple 5F1 circuit by adding a tube-driven tremolo with speed and intensity controls without losing any of the Champ’s renowned tone. A unique-sounding and apt recording amp, the Vibro-Champ has been used by a wide range of artists, from Eric Clapton to Mac Demarco.

Lightweight and portable, the Mojotone Vibro-Champ style amp is perfect for the studio, practice, and even mic’d club gigs. Our Vibro-Champ style amp is a class A, 7 watt tone powerhouse with clear and articulate sound reproduction at low volumes. And no worries, if you want the raw and entrancing sound of a dimed out Champ, this kit will deliver without losing its inherent clarity.

Enjoy the smooth, natural compression of a single 6V6 power tube and the versatility of two inputs with varying output levels. Controls from left to right are volume, treble, bass, speed, and intensity. Nothing beats a well-designed and short signal path with a straight-forward control panel -- our Vibro-Champ amp is based on a circuit that has proven its worth for almost 60 years!

If this kit shows as out of stock please check here for more information.

Please read our article 'Mojotone Amp Kit Building Primer' along with our amp kit disclaimer located in the Specs tab before buying this kit.
$592.00
Shipping calculated at checkout.
Only 1 left in stock. Order soon.
Free U.S. shipping over $99
Real support from real techs
Designed, tested, and trusted in-house
SPECS

Weight: lb

  • Class Type:A All Tube Amplifier
  • Output:~7 Watts
  • Circuit:AA764
  • Bias Type:Cathode Bias
  • Build Time:~5 hours
  • Preamp Tubes: ECC83/12AX7 (2)
  • Output Tube(s): 6V6GT (1)
  • Rectifier Tube: 5Y3

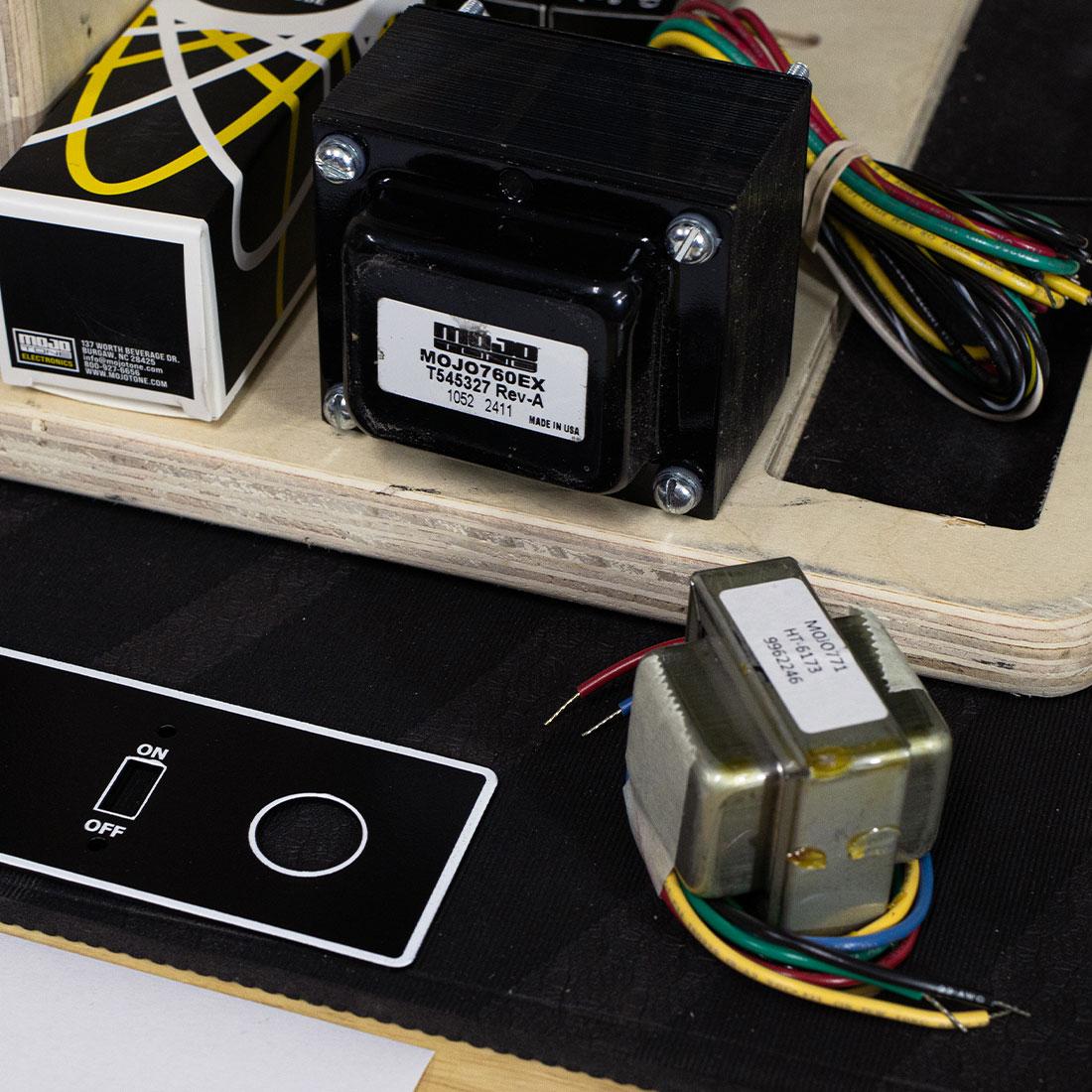

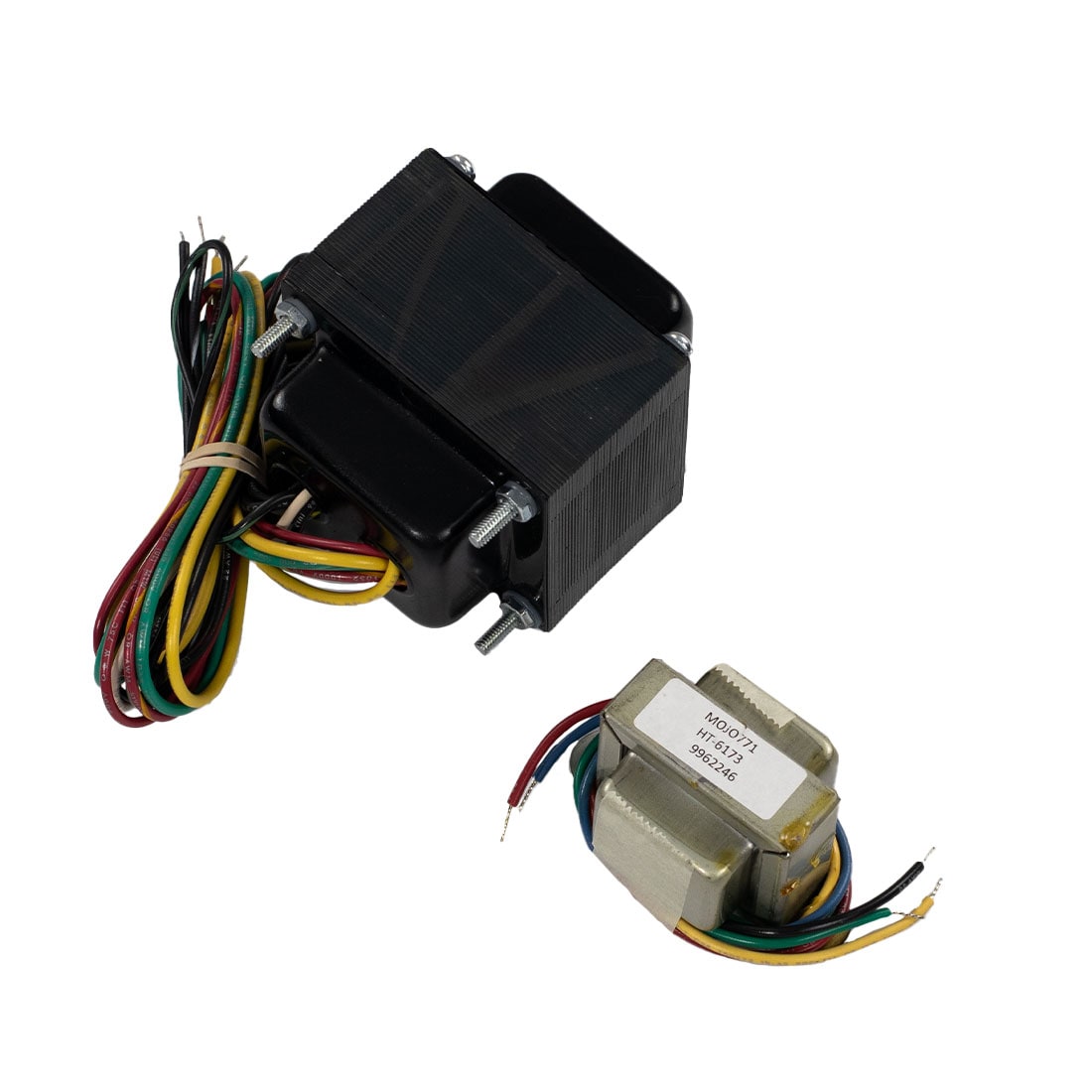

  • Transformers:Power - Champ (MOJO760EX), Output - BF Champ (MOJO771)

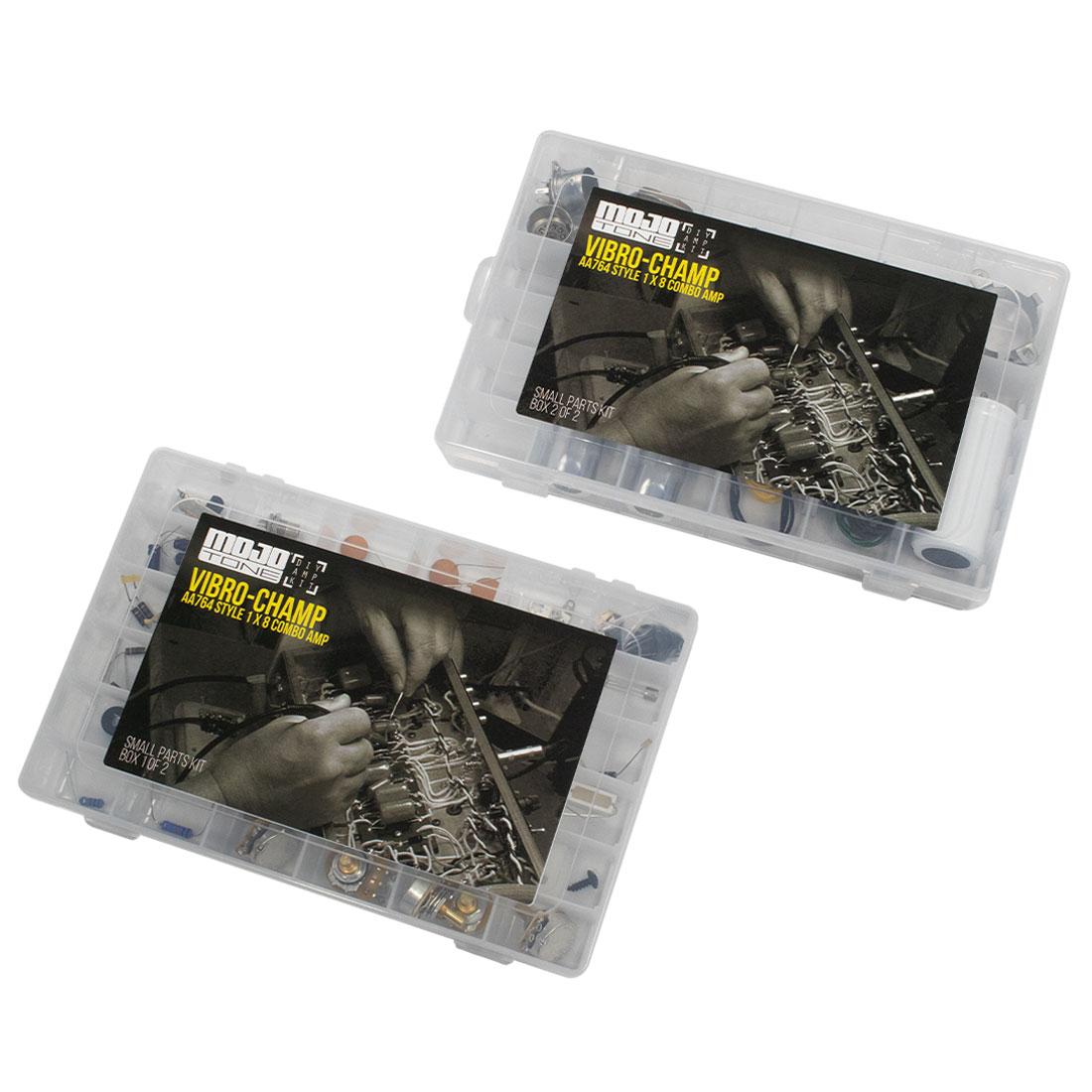

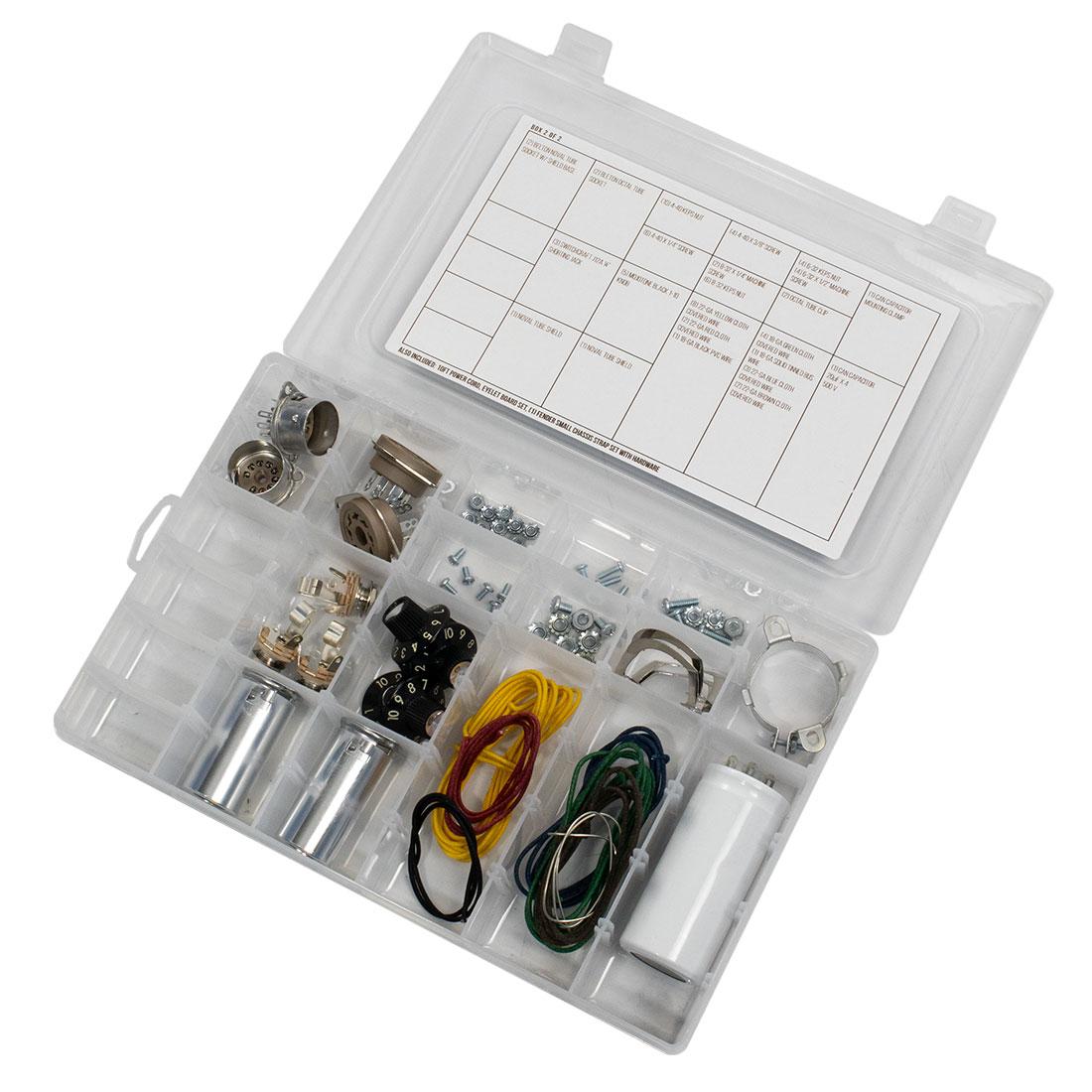

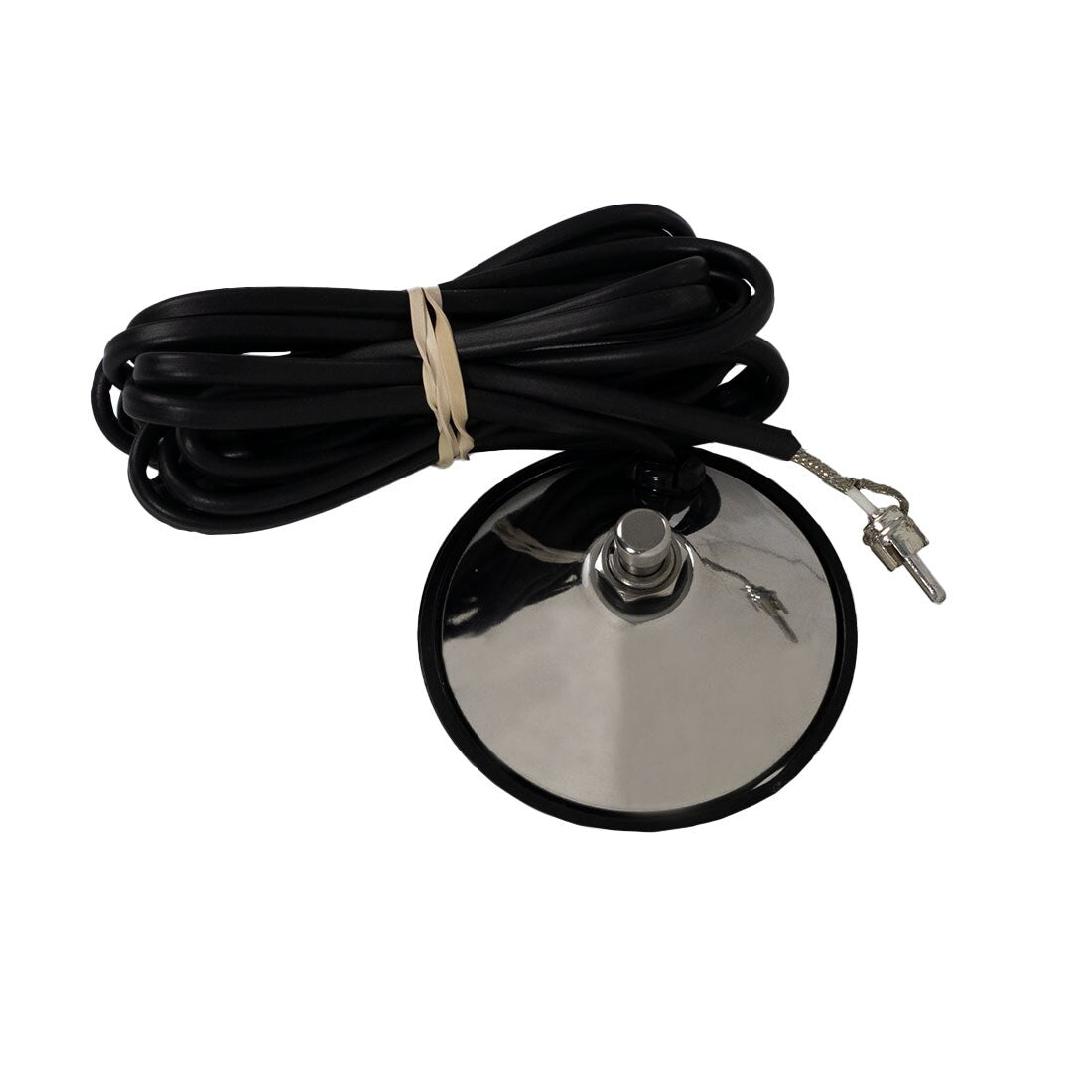

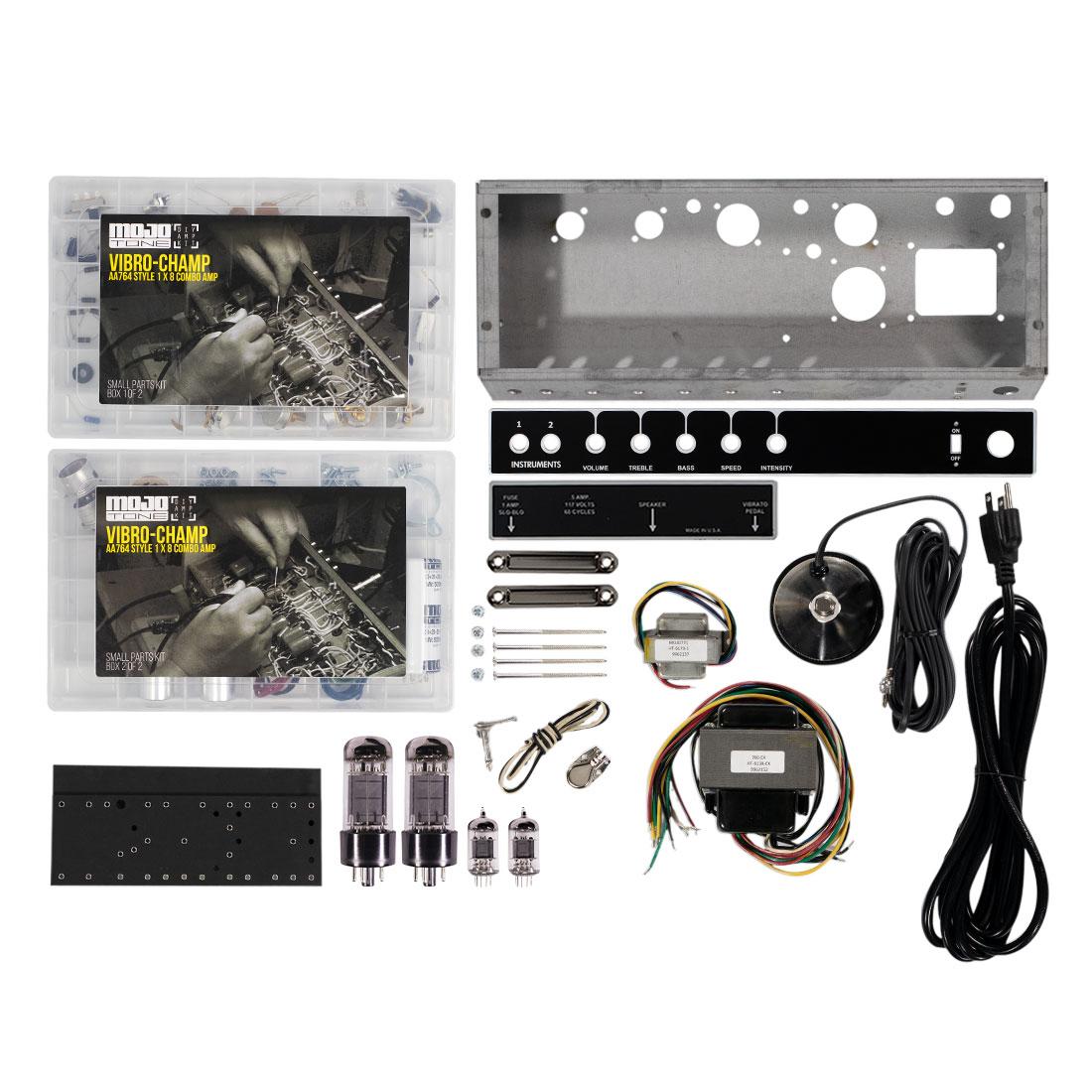

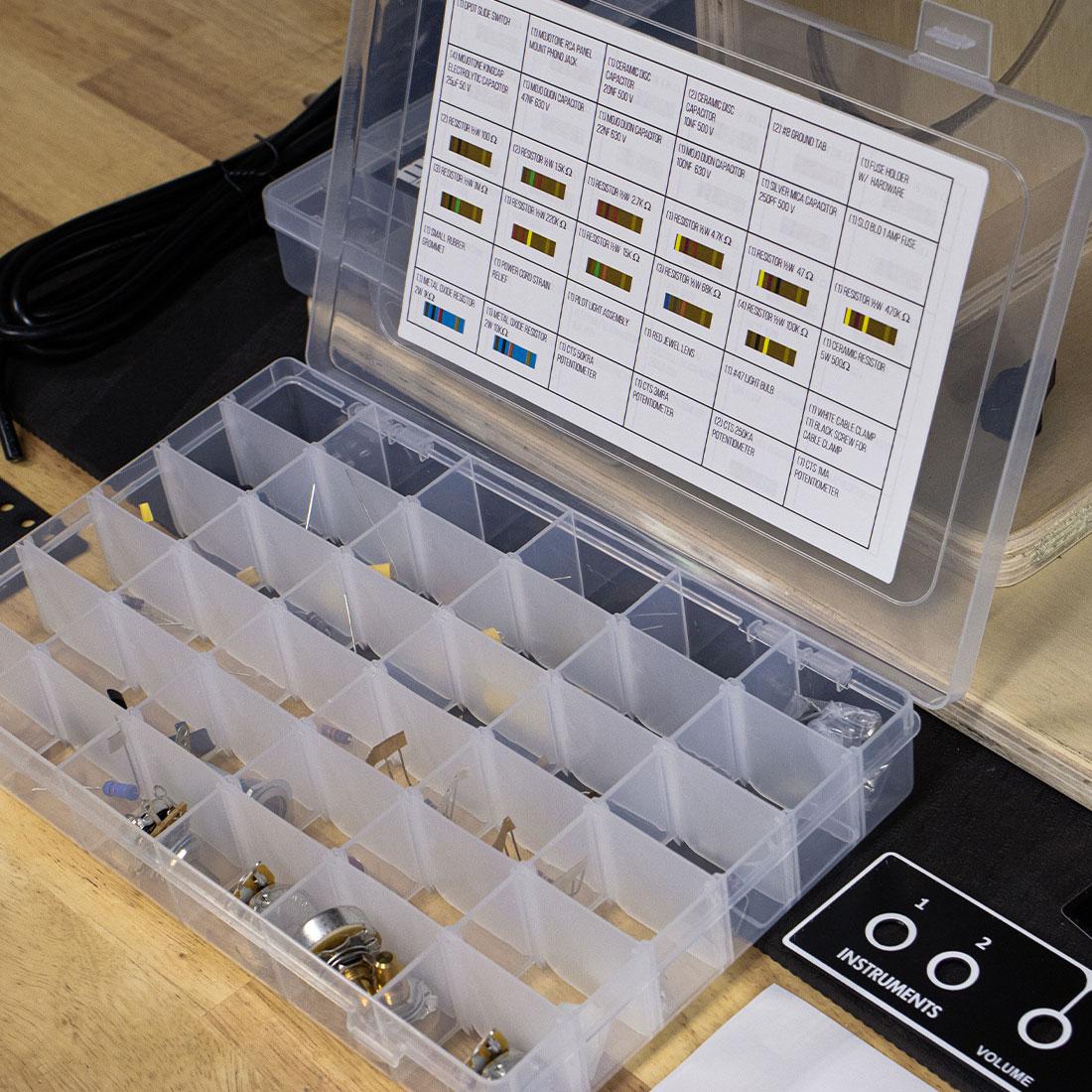

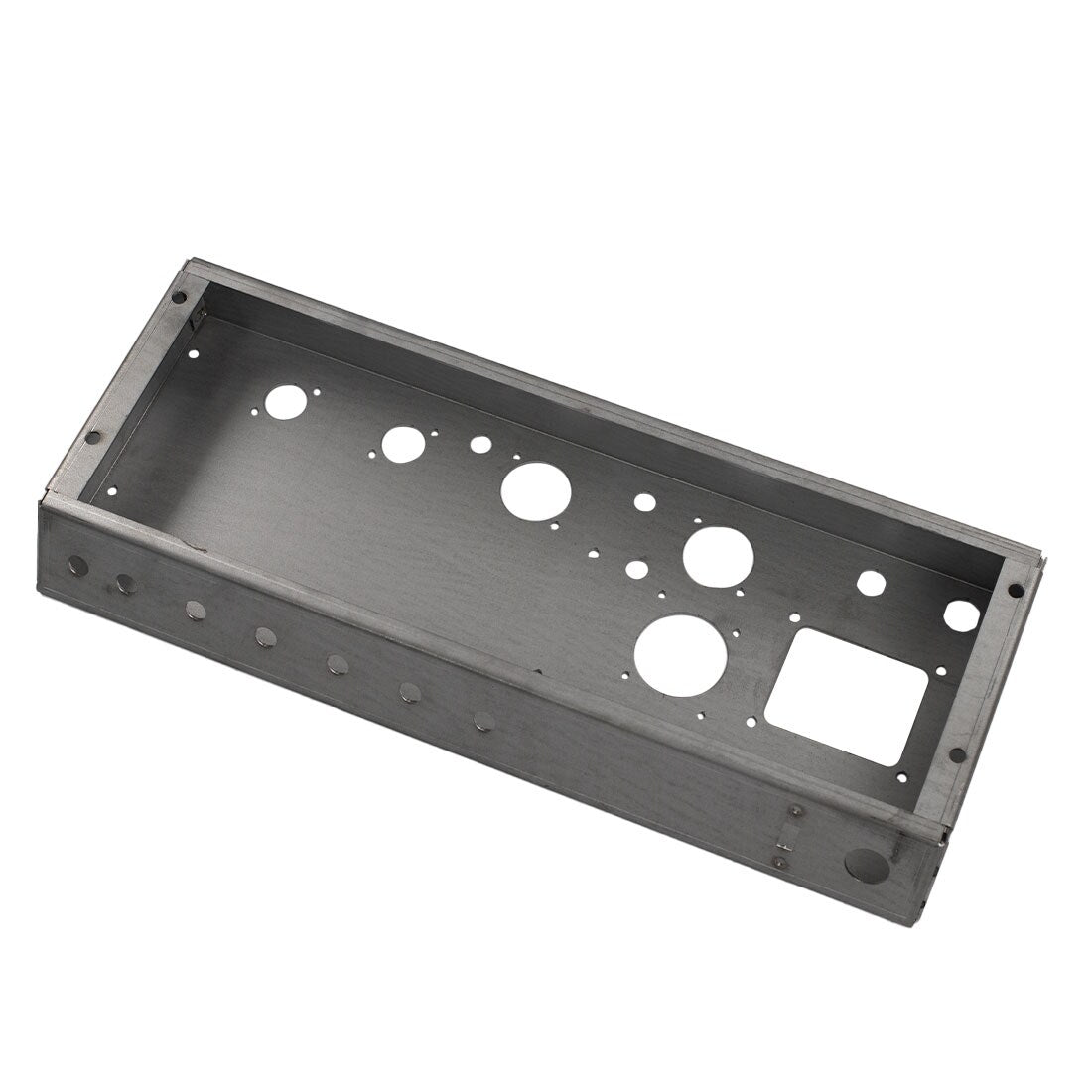

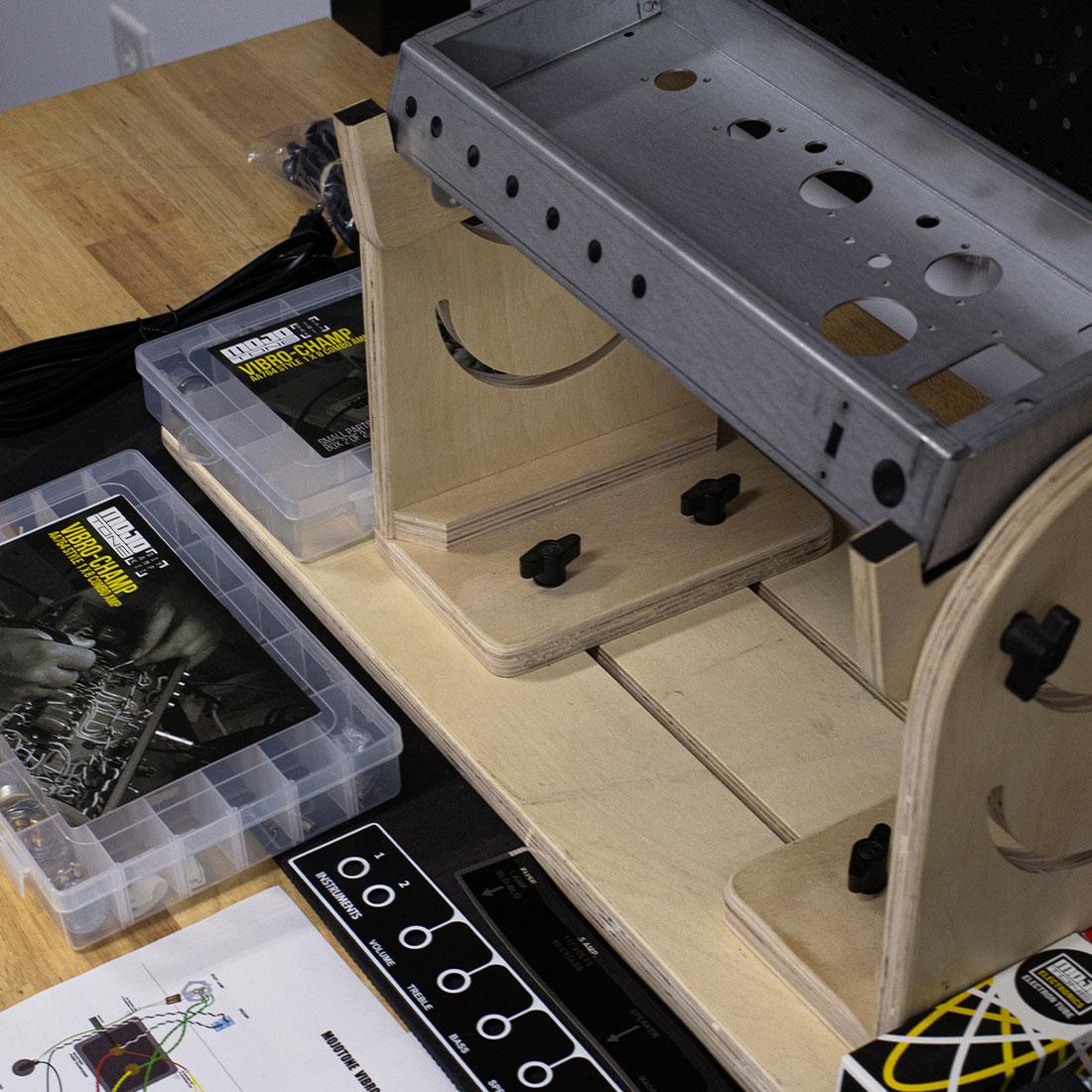

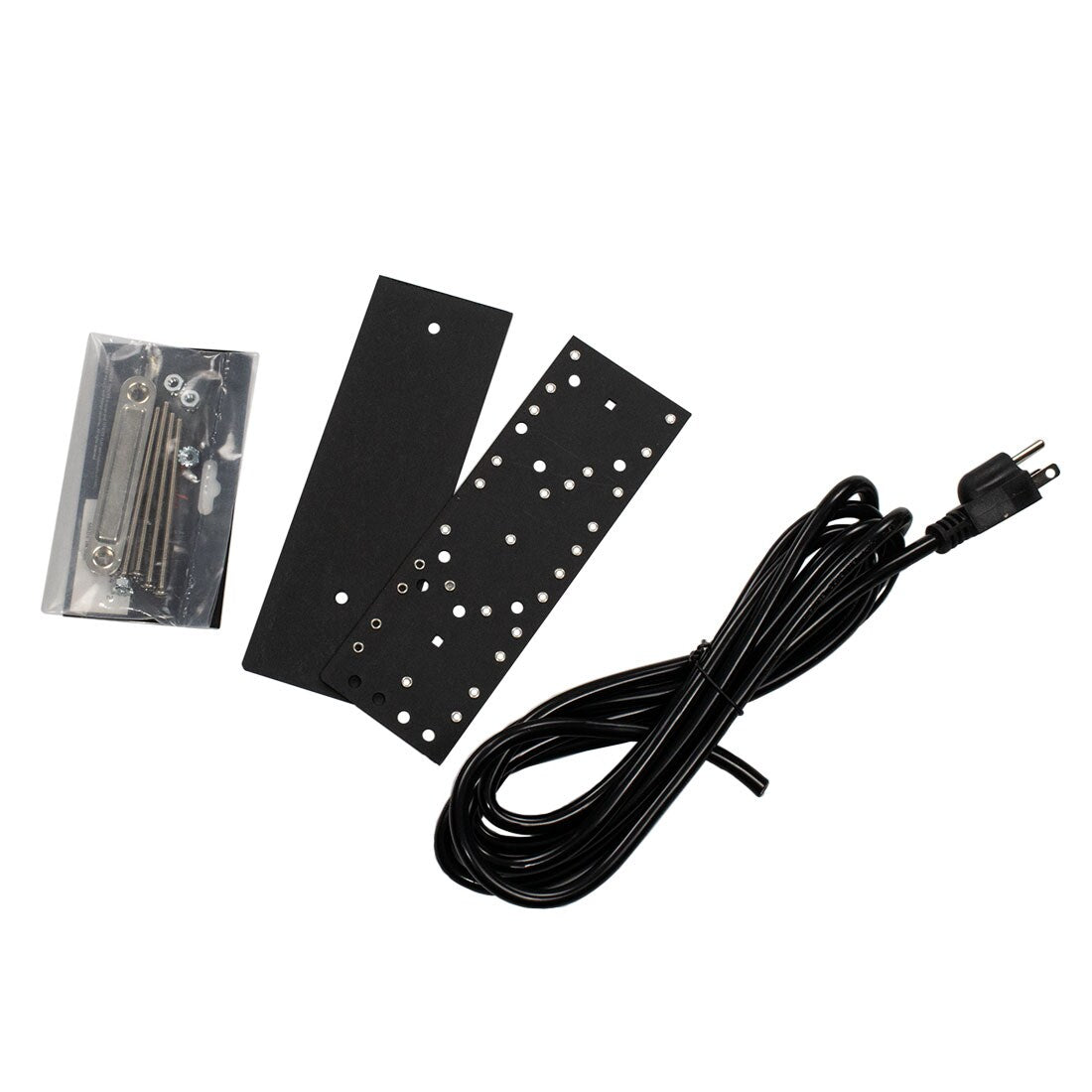

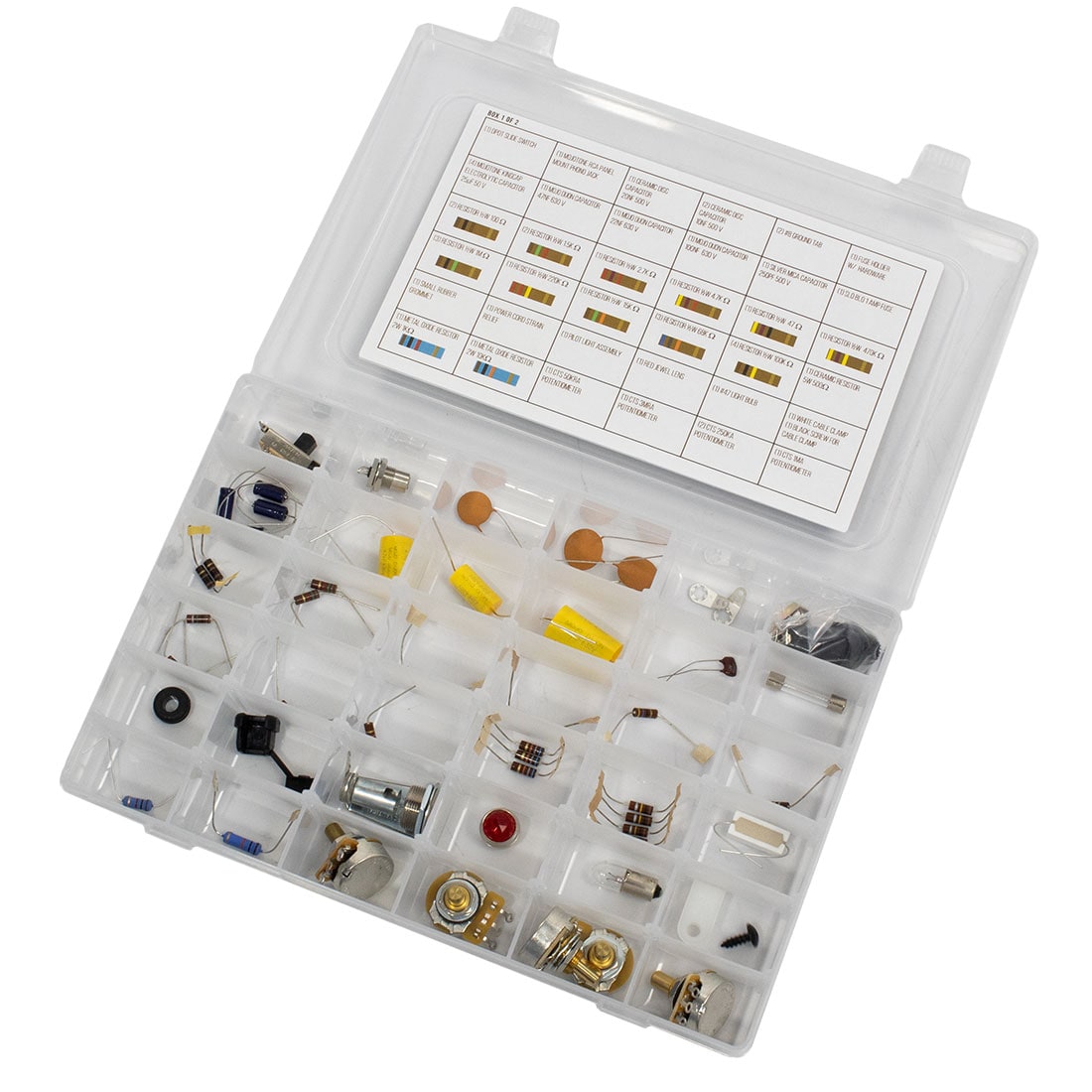

  • Hardware:Vibro-Champ Small Parts Kit, Vibro-Champ Chassis, Front & Rear Faceplates, Fender style 1-button Footswitch, 10' Install Power Cord

Disclaimer: Some of the parts contained in this kit are subject to availability.

Mojotone reserves the right to change or substitute any and all of the parts contained in this amplifier kit without advertisement or notification to the buyer. Part substitutions made by Mojotone are guaranteed not to affect the integrity or operation of your amplifier kit. Time estimates listed are from start to finish. If you are new to tube amplifiers, additional time may need to be factored.

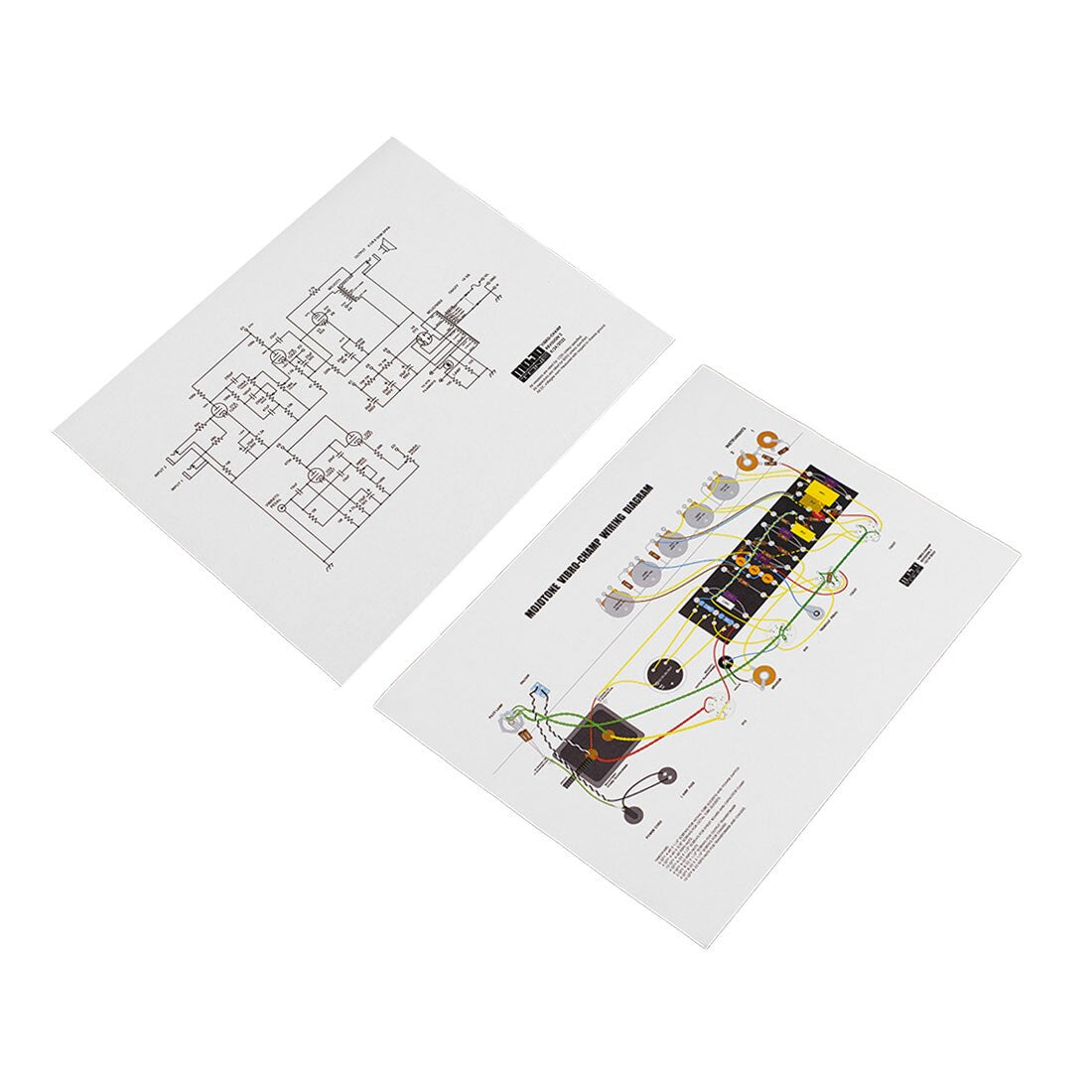

 When purchasing a kit from Mojotone, you will receive the following documentation.

1. Schematic

2. Wiring Diagram / Layout

If you purchase a kit from Mojotone and do not receive these documents, you can obtain copies by emailing tech@mojotone.com or calling 800-927-6656. The Mojotone staff is available Monday through Friday from 8:30 a.m. to 5:00 p.m. EST unless otherwise closed.

 Mojotone kits include the best quality parts that are available at the time of purchase. If a substitution is required, our team will use parts that are of equal quality to ensure the integrity of the kit build remains the same.

 Building a fully functional amplifier kit is not an easy task. Before building a kit, one should have the ability to properly solder as well as read and understand a schematic and wiring diagram. While we do our very best to ensure all documentation is current, the included documentation is meant to serve as an overall guide to building the amplifier. Simply following the schematic and wiring diagram does not guarantee you will have a fully functional amplifier. In fact, post build troubleshooting is a common issue across all builds.

 Our staff is available to assist with basic troubleshooting needs. There are plenty of online videos available that are helpful with most post build issues. Technical staff is available via email by sending a message to tech@mojotone.com. You may also call our sales team to discuss build problems, dial 800-927-6656 and press 1 for sales.

Building a tube amplifier takes time, dedication, resources and most importantly... Skills! The experience of building an amp can come with some frustration, the reward of completing the build is definitely well worth your time. Please review the wiring diagram, schematic and manual (if applicable) prior to making your purchase. Mojotone will not accept any returns on amplifier kits and/or parts that have been assembled, soldered or modified.
DOCUMENTATION

This amp kit also comes with the following documents. Please feel free to view and/or download them:

Mojotone Blackface Vibro-Champ Schematic

Mojotone Blackface Vibro-Champ Wiring Diagram

Mojotone Blackface Power Transformer Wiring Diagram

Mojotone Blackface Output Transformer Wiring Diagram
