Plug and Play Jack Plate

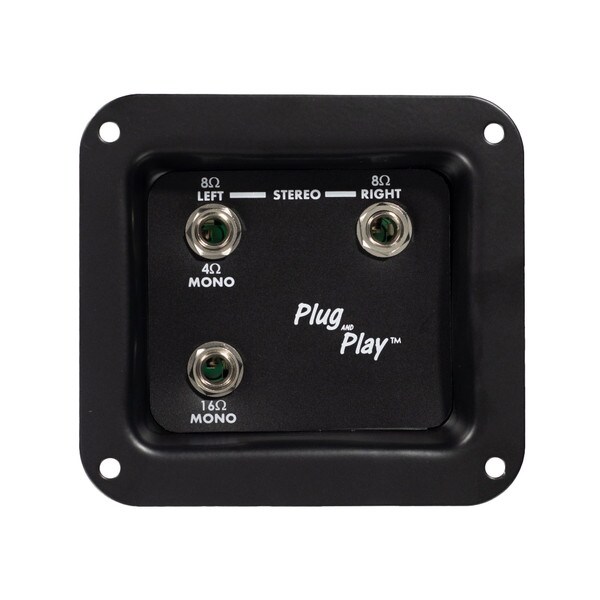

The Plug and Play Jack Plate is a complete drop-in assembly for stereo speaker cabinets. The standard version shown below is marked for the 8 Ohm Stereo and 4/16 Ohm Mono. This is a common setup with guitar cabinets. What is uncommon is the elimination of the switch. This makes connecting the amplifier to the cabinet super easy.
Wiring Diagram can be found under the DOCUMENTATION tab.
- Interior Length 3.0 in.
- Interior Width 3.44 in.
- Item Length 4.03 in.
- Item Width 4.35 in.

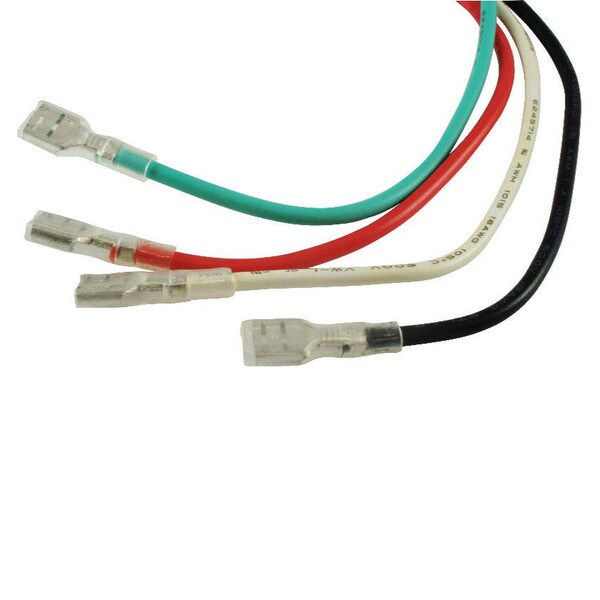

- Lead Length 18 in.
- Mounting Hole Center to Center A 3.72 in.
- Mounting Hole Center to Center B 3.25 in.
Ratings & Reviews
8 reviews
never buy this
by price
Poor quality, doesn't work, documentation is useless.
Include schematic!!!
by Harry Warden
Just to let you know, a schematic should accompany your product. It is a quite complicated process and many musicians are only that, not wiring whizzes. Like me. I found it on your site but including it in your package would be a good idea to ease frustration.
