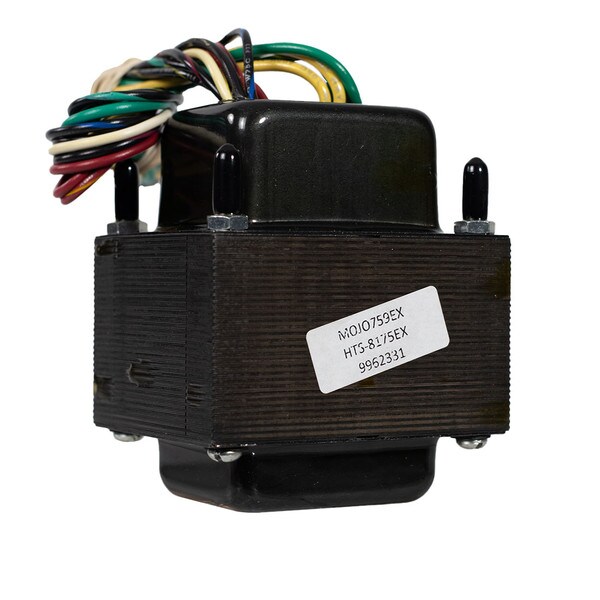

Tweed Champ 5F1 Power Transformer
Specs
Replacement for Fender part numbers 125P1B, 022772, and 66079B.
Primary: 100VAC, 120VAC, 220VAC, 230VAC, 240VAC
Mounts on a 2" x 2.5" hole center to center layout.
Paper bobbin / high-grade steel
Features a center tap on the 6VAC filament winding.
All Mojotone transformers are made in the USA. Quality, Reliability, and Excellence are what make our transformers the best around.
To repair techs: If you require a replacement transformer for your customer's vintage amp that won't degrade its value, then take comfort in knowing Mojotone transformers are manufactured on the same equipment and from the same materials as the original part. We don't use higher grade metals or brightly-colored end-bells. Our transformers look, smell, and perform like the original without a high price tag.

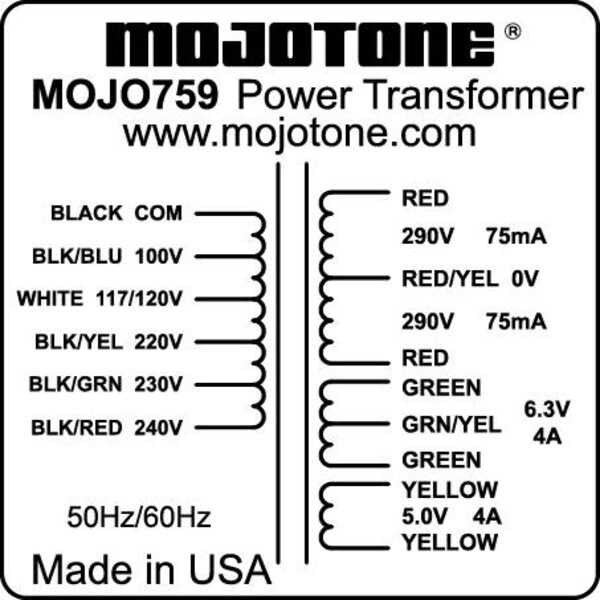

Please use caution when referencing our current wiring diagrams. Mojotone transformers have undergone various changes over the years and these wiring diagrams are meant to aid in the purchasing process and represent current production only. These diagrams may not necessarily correspond to previous models. Mojotone is not liable for damage that may result from the use of these diagrams. Please contact us if you are unsure about anything relating to Mojotone transformers or if you need to verify data on a specific transformer you have been shipped, especially if you did not purchase the transformer within the past six months.
