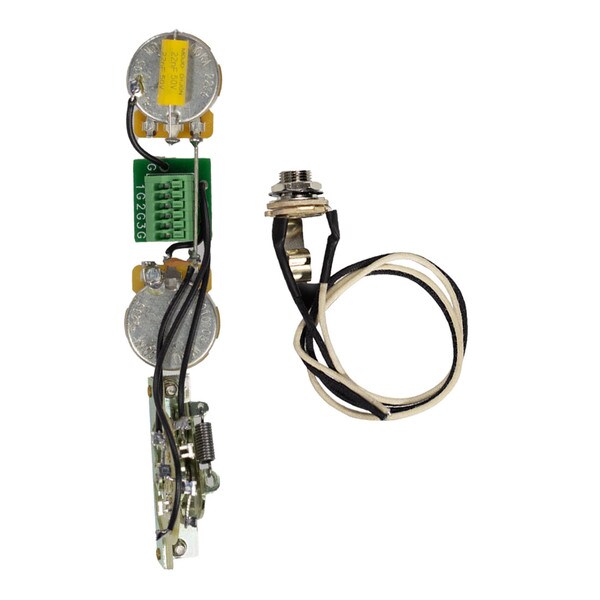

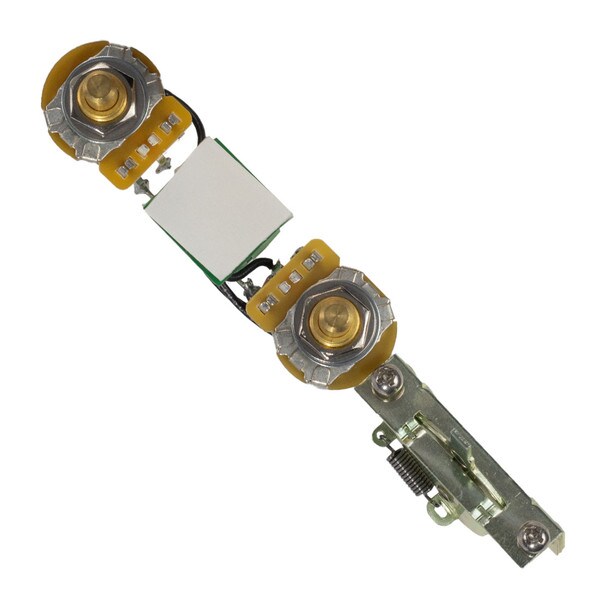

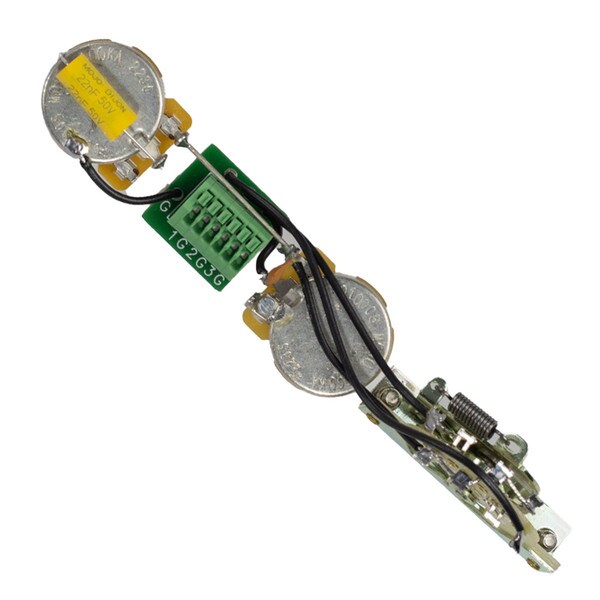

Solderless Quiet Coil Tele 3-Way Wiring Harness
This is a 3-way standard kit for our Quiet Coil Telecaster pickups that utilizes 500k potentiometers. It uses a master volume and master tone control for both pickups. Use set-screw knobs only.
Included:
- (2) CTS 500k audio taper audio solid shaft potentiometers
- (1) CRL 3-way switch
- (1) Switchcraft mono input jack
- (1) Mojotone Dijon .022uf Capacitor
- (1 ft) Pre-tinned cloth covered black wire
- (1 ft) Pre-tinned cloth covered white wire
- (1) Volume mod cap
NOTE: Standard Tele wiring diagram included shows 250k pots and a .047uf capacitor. This harness utilizes 500k pots and a .022uf capacitor.
Installation Instructions
