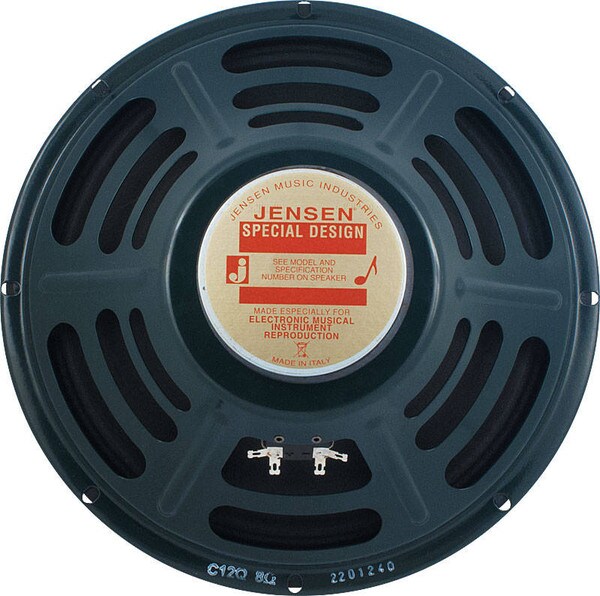

Jensen C12Q 35W 12'' Replacement Speaker 8 OHM
Well rounded, straightforward tone with a lot of mid bite and bright highs.
- Overall Diameter: 12 in
- Voice Coil Diameter: 1.25 in
- Magnet Weight: 15 oz
- Overall Weight: 3.96lbs
- Flux Density: 0.92 T
Thiele-Small Parameters
- Voice Coil DC Resistance: 6 Ω
- Resonance Frequency: 87.5 Hz
- Mechanical Q Factor: 12.95
- Electrical Q Factor: 1.94
- Total Q Factor: 2.23
- Mechanical Moving Mass: 29.7 g
- Mechanical Compliance: 111 µm/N
- Force Factor: 6.03 Wb/m
- Acoustic Volume: 38.0lt.
- Linear Displacement: 1.50 mm
- Reference Efficiency: 1.45 %
- Diaphragm Area: 490.9 cm2
- Electrical Resistance: 43.2 Ω
- Voice Coil @ 1kHz: 0.63 mH
Constructive Characteristics
- Magnet: Ferrite
- Voice Coil Winding: Copper
- Voice Coil Former: Epotex
- Cone: Paper
- Surround: Integrated Paper
- Dust Dome: Solid Paper
- Basket: Pressed Sheet Steel
Electrical Characteristics
- Nominal Impedance: 8 Ω
- Rated Power: 35 W
- Musical Power: 70 W
- Sensitivity@1W,1m: 93.2 dB
