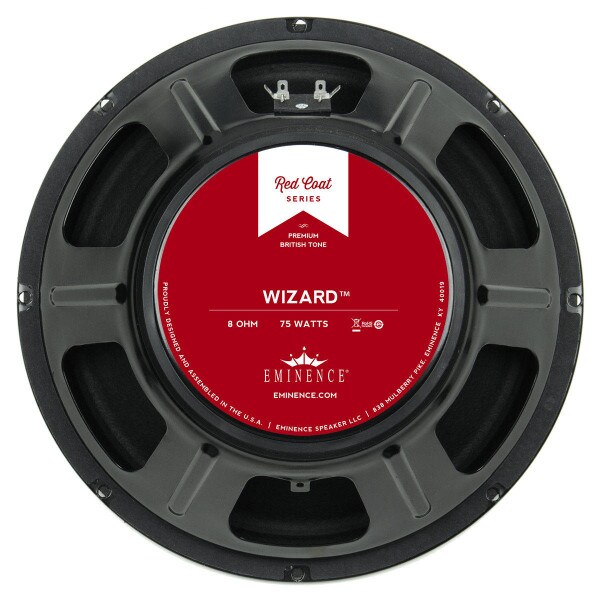

Eminence The Wizard Speaker 12'' 8 OHM 75W
A 12 inch speaker with enchanting tonal characteristics borrowed from Private Jack and The Governor The Eminence Wizard 12 inch Guitar Speaker has great Coloration: Very articulate, but with a hint of grit. Nice sustain and exceptionally good tight bottom. An amazing cross between Eminence's Private Jack and The Governor speakers! The perfect Genre for these speakers: Classic Rock tones of the 60’s and 70’s!
- Nominal Basket Diameter: 12", 304.8mm
- Nominal Impedance: 8 ohms
- Power Rating: 75W
- Music Program: N/A
- Resonance: 89Hz
- Usable Frequency Range: 70Hz - 5.5kHz
- Sensitivity: 103dB
- Magnet Weight: 56 oz.
- Gap Height: 0.31", 7.92mm
- Voice Coil Diameter: 1.75", 44.5mm
MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: Acceptable
- Vented: N/a
- Driver Volume Displaced: 137.3 cu.in. / 2.25 liters
- Overall Diameter: 12.02", 305.3mm
- Baffle Hole Diameter: 10.97", 278.6mm
- Front Sealing Gasket: Fitted as standard
- Rear Sealing Gasket: Fitted as standard
- Mounting Holes Diameter: 0.25", 6.4mm
- Mounting Holes B.C.D.: 11.63", 295.4mm
- Depth: 5.2", 132mm
- Net Weight: 11.1 lbs, 4.9 kg
- Shipping Weight: 12.5 lbs, 5.7 kgs
