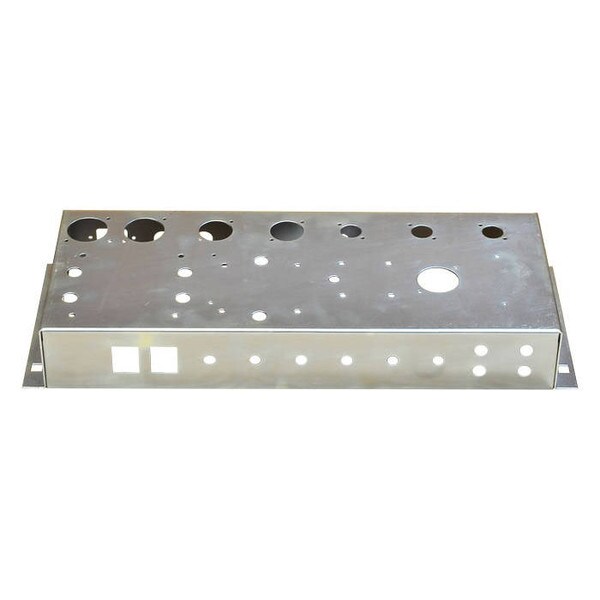

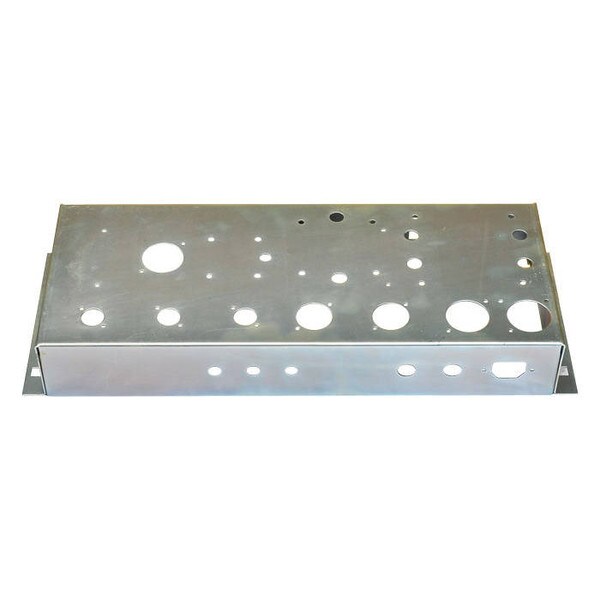

British 50W Chassis
Mojotone reproduction chassis. Same size and style as the Marshall® JMP 2204 / 1987x
Please note: The rear hole pattern is not the same as the Marshall® chassis. Impedance selector switch holes size accommodates the Mojotone Impedance Selector Switch. This chassis requires cage nuts SKU# 8000005 for mounting.
- Material:17 Gauge Zinc Plated Steel - 0.054”
- Thickness:1.37mm Thickness (Features welded corners)
- Dimensions: (H) 2 ½“ x (W) 17“ x (D) 6 ¾“ (Width including wings 18 ¼“)
- Weight: 4.5 lbs.
- Octal Socket Holes: 2
- 9-Pin Socket Holes: 3
- Power Transformer:Power Transformer
- Output Transformer:Output Transformer
- Choke:Choke
- Hardware:Metric Chassis Mounting Screws
- Requires:Metric Chassis Cage Nut
- Chassis Mounting: 17 ¾" x 4 ¾"
