British 45W Chassis

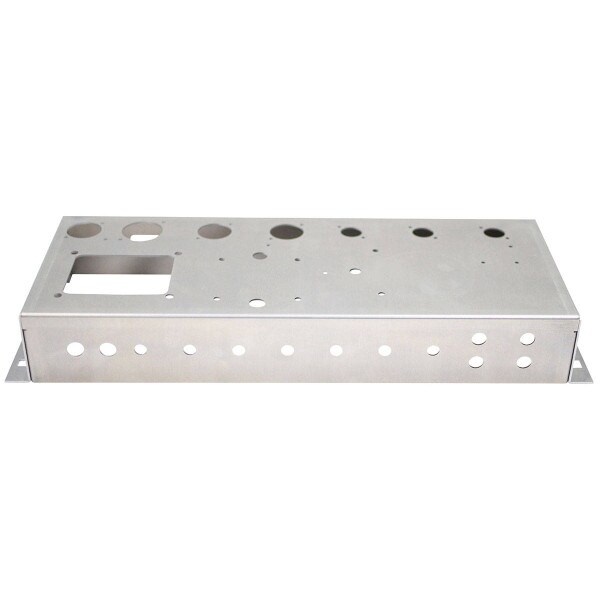

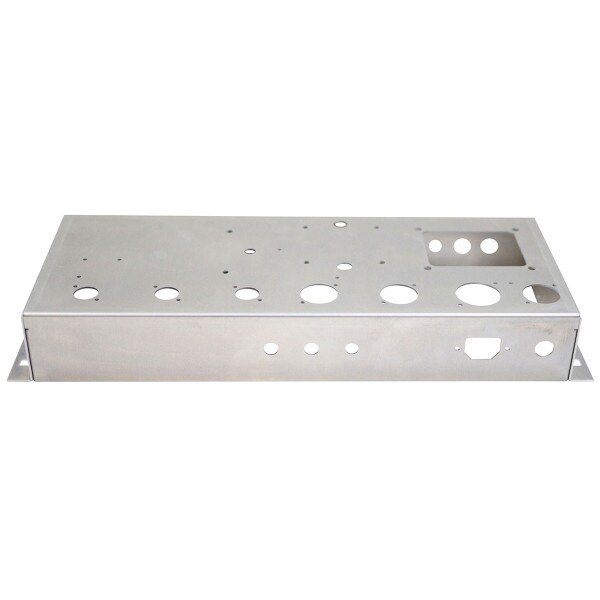

Mojotone reproduction chassis. Same size and style as the Marshall® JTM45
Please note: 45 Watt MOJO reproduction chassis. Same size & style of JTM45 45 watt amplifiers. Faceplate/Backplate sold separately. Requires our metric cage nuts SKU# 8000005 for mounting (sold separately).
- Material:14 Gauge Brushed Aluminum - 0.060”
- Thickness:1.52mm Thickness
- Dimensions: (H) 2-1/2" x (W) 17" x (D) 6 3/4" (Width including wings 18-1/4")
- Weight: 2 lbs.
- Octal Socket Holes: 3
- 9-Pin Socket Holes: 3
- Power Transformer:Power Transformer
- Output Transformer:Output Transformer
- Choke:Choke
- Faceplates:British 45 Faceplate Set sold separately
- Hardware:Chassis Mounting Screws
- Chassis Mounting: 17 3/4" x 4 3/4" center to center
Ratings & Reviews
1 review
this chassis is exactly what I needed
by anonymous
I heard about you guys through building an amplifier with Bruce Egnater. I've decided to build a 2nd amplifier and this chassis is exactly what I needed.
