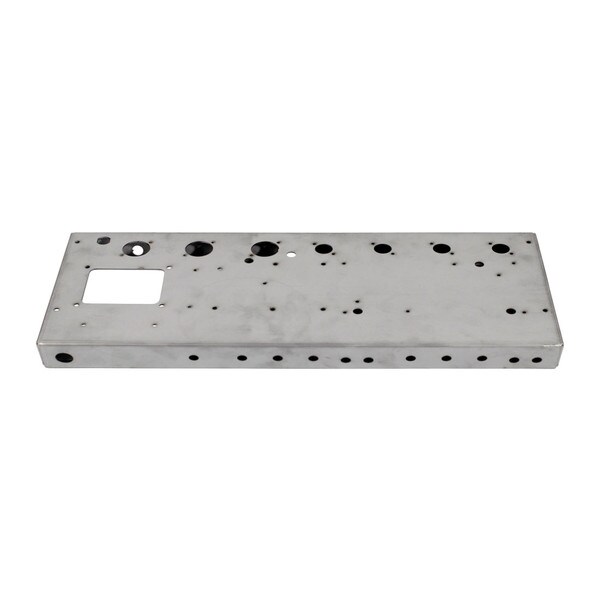

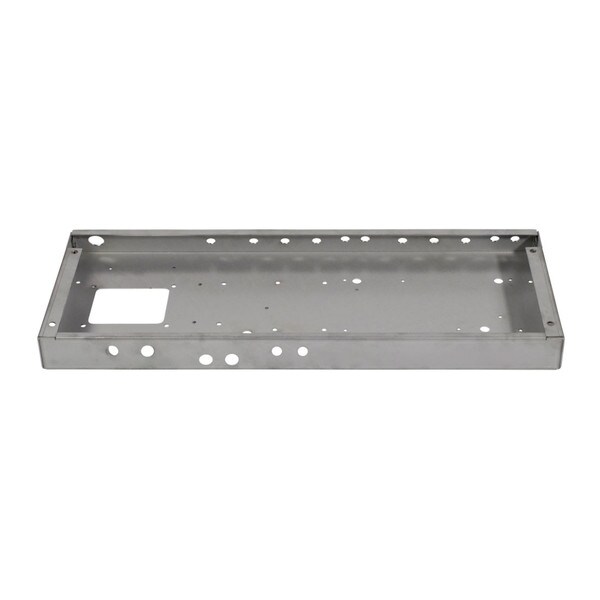

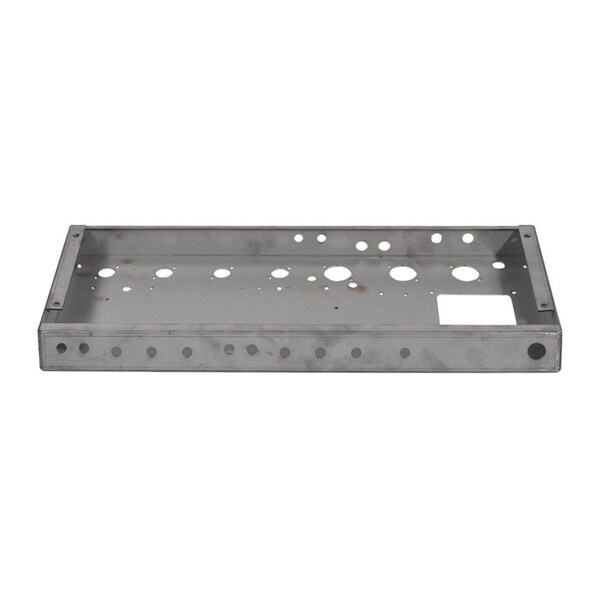

Blonde Bassman Chassis 6G6-B
This chassis is a near replica of the 6G6-B blonde-era chassis. It is made from galvannealed steel.
- Material:16 Gauge Galvanneal Steel - 0.064” / 1
- Thickness:.61 Thickness
- Dimensions: 20 1/4" x 8 1/8" x 1-5/8"
- Weight: 4.2 lbs.
- Octal Socket Holes: 3
- 9-Pin Socket Holes: 4
- Power Transformer:MOJO762EX
- Output Transformer:MOJO774
- Choke:MOJO777
- Chassis Straps:Mojotone Large Chassis Straps 4-5/8"

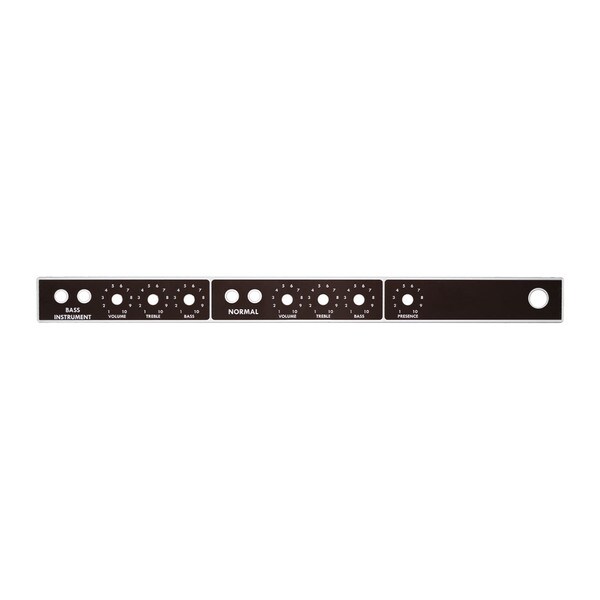

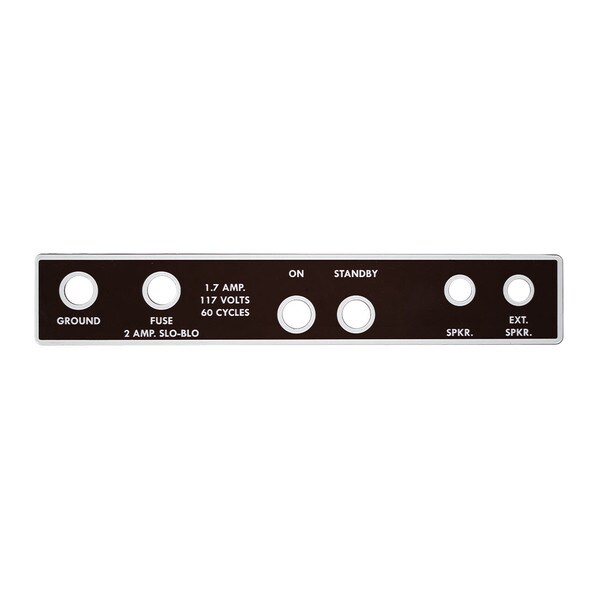

- Faceplates:Faceplate / Backplate sold separately
- Chassis Mounting: 19 5/16" x 5" center to center
