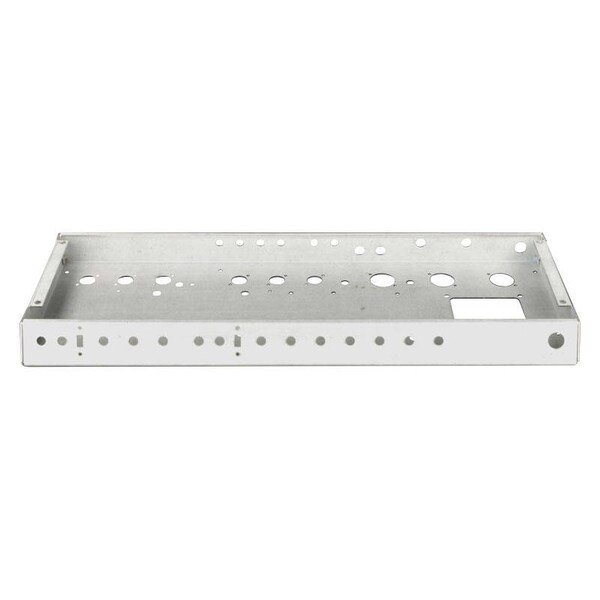

Blackface Super Reverb AB763 Style Chassis
Mojotone reproduction chassis. Same size and style of Super Reverb®
Please note: The mounting and rear hole pattern is not the same as the Fender® chassis.
- Material:16 Gauge Galvanneal Steel
- Thickness: 0.064"
- Dimensions: (H) 1 ¾“ x (W) 23 ½“ x (D) 8 ¼“
- Weight: 4.2 lbs.
- Octal Socket Holes: 3
- 9-Pin Socket Holes: 6
- Power Transformer:MOJO762EX
- Output Transformer:MOJO774
- Reverb Driver:MOJO776
- Choke:MOJO777
- Chassis Straps:Mojotone Large Chassis Straps 4-5/8"
- Faceplates:Faceplate / Backplate sold separately
- Chassis Mounting: 22 ¾" x 5" center to center
