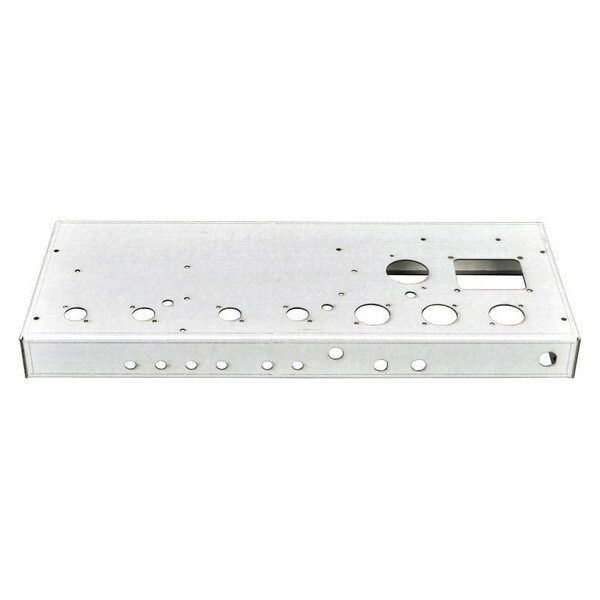

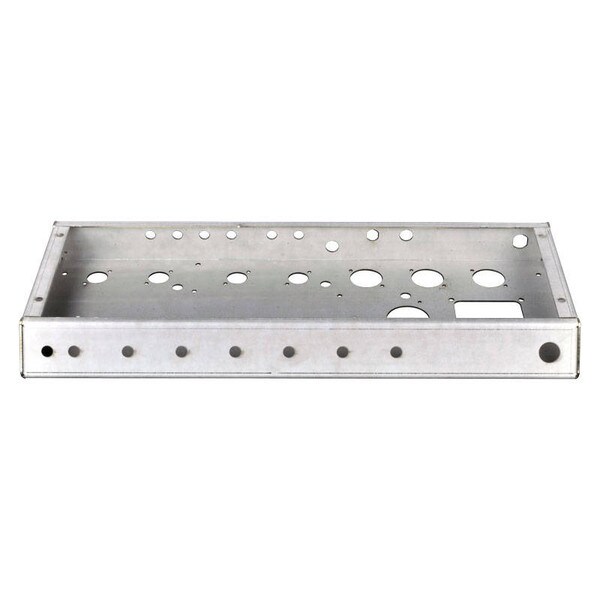

Blackface Princeton Reverb AA1164 Style Chassis
Mojotone reproduction chassis. Same size and style as Princeton Reverb®
Please note: The mounting and rear hole pattern is not the same as the Fender® chassis.
- Material:16 Gauge Galvanneal Steel - 0.064” / 1
- Thickness:.61 Thickness
- Dimensions: 1 ¾“ (H) x 18 ¼“ (W) x 7” (D)
- Weight: 4.2 lbs.
- Octal Socket Holes: 3
- 9-Pin Socket Holes: 4
- Power Transformer:MOJO760EX
- Output Transformer:MOJO772
- Reverb Driver:MOJO776
- Chassis Straps:Mojotone Medium Chassis Straps 4-⅝”
- Faceplates:Faceplate / Backplate sold separately
- Chassis Mounting: 17 1/2" x 4" center to center
Ratings & Reviews
1 review
The chassis I got from Mojotone was LEGIT!
by anonymous
I ordered a similar chassis from someone else and was not very excited with the product. The mounting holes for my transformers were slightly off. The chassis I got from Mojotone was LEGIT! Felt heavy duty like the original! Thanks!
