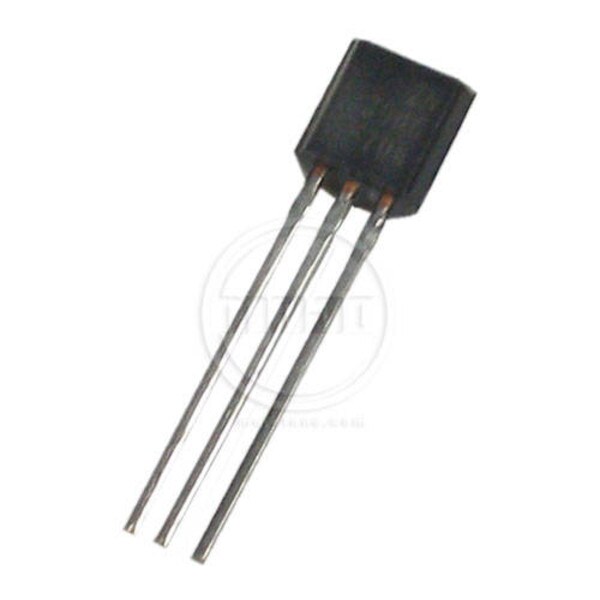

BC549C AF Low Noise NPN TO-92 65V Transistor
NPN general purpose transistors. Low noise stages in audio frequency equipment.
- Dimensions (mm): 5.20 x 5.33 x 4.19 (max)
- Lead spacing (mm): 1.27 individual (max)
- Lead Length (mm): 13.20
- Polarity: NPN
MAXIMUM RATINGS:
- C-B Voltage VCBO: 30V
- C-E Voltage VCEO: 30V
- E-B Voltage VEBO: 5V
- Collector Current (DC) IC: 100 mA
- Power Dissipation PC: 500 mW
- Junction Temperature TJ: 150°C
- Storage Temperature Range TSTG: -65 to +150 °C
