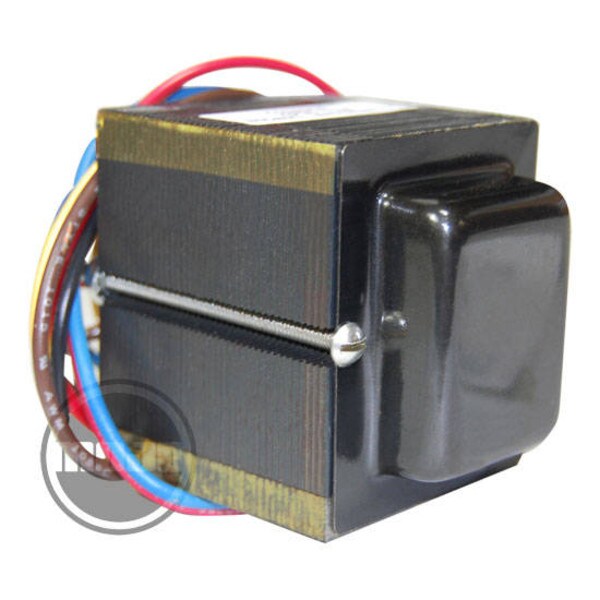

Silvertone 1484 1485 Output Transformer

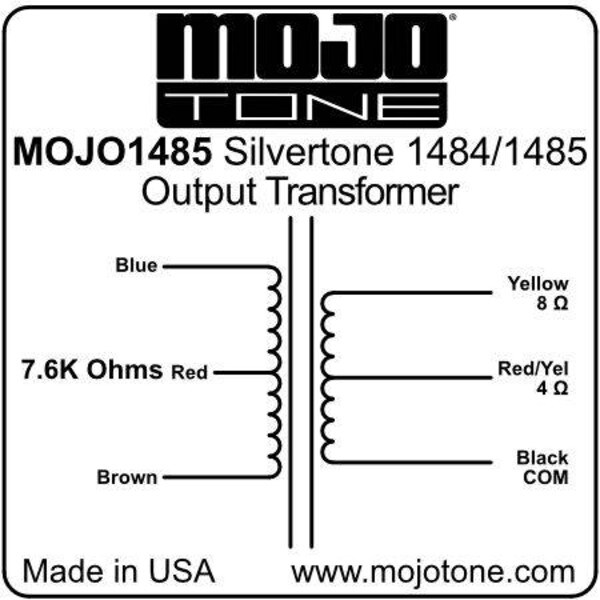

Primary
Brown - Start (plate)
Red - CT 7600 Ohms
Blue - Finish (plate)
Secondary
Black - 0 (Gnd)
Red / Yellow - 4
Yellow - 8
Primary
Brown - Start (plate)
Red - CT 7600 Ohms
Blue - Finish (plate)
Secondary
Black - 0 (Gnd)
Red / Yellow - 4
Yellow - 8
