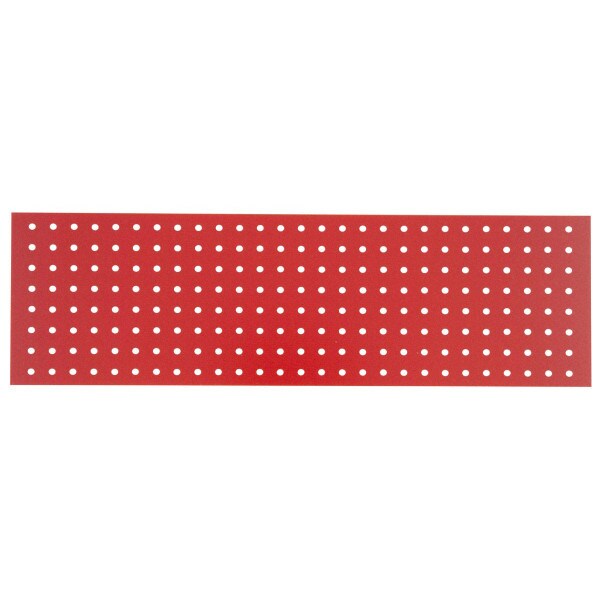

10.5" x 3.13" Perforated Board - Red
This non-conductive epoxy/glass perforated material is perfect for making your own turret boards. Cut to size, design around the 3/8" center-to-center hole spacing, and then apply turrets PN: 7126010 with our turret staking tool PN: N4TST820.
- Board Dimensions: 10.5" x 3.13" x 0.125" (Material is 1/8" thick)
- Turret Spacing: 0.375" (3/8")
- Number of holes: 27 x 8 grid (Holes are 0.125" diameter)
